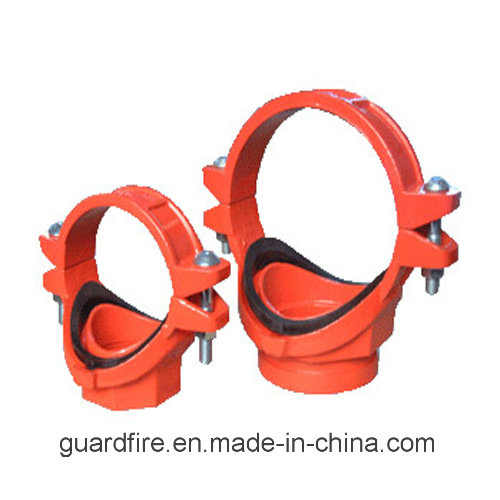

Mechanical Cross Grooved Outlet

Product Specifications

Prod Model:	ZMP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
General Size:	According to Customers

Product Description

Tee
Tee for pipe fittings, pipe fittings. Also known as pipe tee or tee fittings, tees, to be used in the main channel of the branch pipe.
Links have equal diameter and diameter of the points, such as taking over the ends Tee are the same size; the same size - Reducing tee competent to take over, and over size is smaller than the head of the branch pipe over size.
Tee for a branch office of pipe fittings. For the use of seamless pipe manufacturing tee speaking, now commonly used in hydraulic bulging process and two kinds of hot forming.
a. hydroforming
Tee hydroforming is compensated by the axial expansion of the metal material of a branch pipe forming process. The process is the use of special hydraulic machine, will inject liquid equal to the diameter of the inner tube tee, side cylinder synchronous movement of the tube by squeezing two horizontal hydraulic press, after the tube by squeezing smaller, inner tube The liquid tube with smaller size and pressure rise, when inflation reached a three-way branch pipe pressure needed in the dual role of the metal material and the inner side of the cylinder tube pressure liquid flow along the mold cavity bulge out of the manifold.
Tee hydroforming process can be a shape, high production efficiency; director and shoulder were increased wall thickness of the tee.
Larger due to seamless tee hydroforming process equipment required tonnage, currently mainly used for the manufacture of standard wall thickness of less than DN400 tee. Suitable materials for forming its relatively low work hardening tendency of low carbon steel, low alloy steel, stainless steel, including some non-ferrous materials, such as copper, aluminum, and titanium.
b. hot forming
Tee hot press forming is greater than the diameter of the tube three-way, three-way crushed to a diameter about the size of the branch pipe portion in the drawing to open a hole; heated tube, into a forming die, and the tube the tensile loading manifold die; tube is radially compressed under pressure, the metal flow and form a manifold die under tension to the branch pipes in the radial direction of the compression process. The whole process is by radial compression and stretching process tube branch pipe portion is shaped. Hydraulic bulging tee is different, hot tee manifold metal tube is carried out by the radial movement of the compensation, it is also called radial compensation process.
With heating due to repression tee, material forming equipment needed to reduce tonnage. Hot links wide adaptability of the material is suitable for low-carbon steel, alloy steel, stainless steel material; especially large diameter and wall thickness bias tee, usually using this forming process.


Wire connection Reducing Tee

(mm)	D×d(mm)	MPa	L(mm)
32*25S	42*G1	1.6	94
40*25S	48*G1
40*32S	48*G1-1/4
50*40S	60*G1
50*32S	60*G1-1/4
50*40S	60*G1-1/2
65*25S	76*G1
65*32S	76*G1-1/4
65*40S	76*G1-1/2
65*50S	76*G2
65*25S	89*G1
8/0*32S	89*G1-1/4
80*40S	89*G1-1/2
80*50S	89*G2
80*65S	89*G2-1/2
100*25S	108*G1		104
100*32S	108*G1-1/4
100*40S	108*G1-1/2
100*50S	108*G2
100*65S	108*G2-1/2
100*80S	108*G3
100*25S	114*G1
100*32S	114*G1-1/4
100*40S	114*G1-1/2	1.6	102
100*50S	114*G2
100*65S	114*G2-1/2
100*80S	114*G3
125*25S	140*G1
125*32S	140*G1-1/4
125*40S	140*G1-1/2
125*50S	140*G2
125*65S	140*G2-1/2
125*80S	140*G3
150*32S	159*G1-1/4		142
150*40S	159*G1-1/2
150*50S	159*G2
150*65S	159*G2-1/2
150*80S	159*G3
150*32S	165*G1-1/4
150*40S	165*G1-1/2
150*50S	165*G2
150*65S	165*G2-1/2
150*80S	165*G3
200*80S	219*G3		179
200*100S	219*G4



Reducing Tee


(mm)	D×d(mm)	MPa	L(mm)
40*32	48*42	2.5	60
50*32	60*42		84
50*40	60*48
65*50	76*60		90
80*50	89*60
80*65	89*76		94
100*50	108*60		104
100*65	108*76
100*80	108*89
100*50	114*60
100*65	114*76
100*80	114*89
125*65	133*76		122
125*80	133*89
125*100	133*108
125*100	133*114
125*50	140*60
125*65	140*76
125*80	140*89
125*100	140*108
125*100	140*114
150*50	159*60		142
150*65	159*76
150*80	159*89
150*100	159*108
150*100	159*104
150*125	159*133
150*1258	159*140
150*50	165*60
150*65	165*76
150*80	165*89
150*100	165*108
150*100	165*114
150*125	165*133	2.5
150*125	165*140
150*50	168*60
150*65	168*76
150*80	168*89
150*100	168*108
150*100	168*114
150*125	168*133
150*125	168*140
200*65	219*76		179
200*80	219*89
200*100	219*108
200*100	219*114
200*125	219*133
200*125	219*140
200*150	219*159
200*150	219*165
200*150	219*168
250*80	273*89
250*100	273*114
250*125	273*140
250*150	273*159
250*150	273*165
250*150	273*168
250*200	273*219
300*150	325*159		215
300*150	325*165
300*150	325*168
300*200	325*219
300*250	325*273		245
350*200	377*219
350*250	377*273
350*300	377*325

,.
