Product Specifications
| Prod Model: |
GWC-1500-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Years Free Warranty |
| After Sales Service: |
Reply Within 24 Hours |
| Life Time: |
More Than 10 Years |
| Color: |
According to The Customer Request |
| Mechanical Specifications: |
According to Customer Requirements |
| Usage: |
Making Welded Wire Mesh |
| Type: |
Resistance Welders |
| Current: |
Direct Current |
Product Description

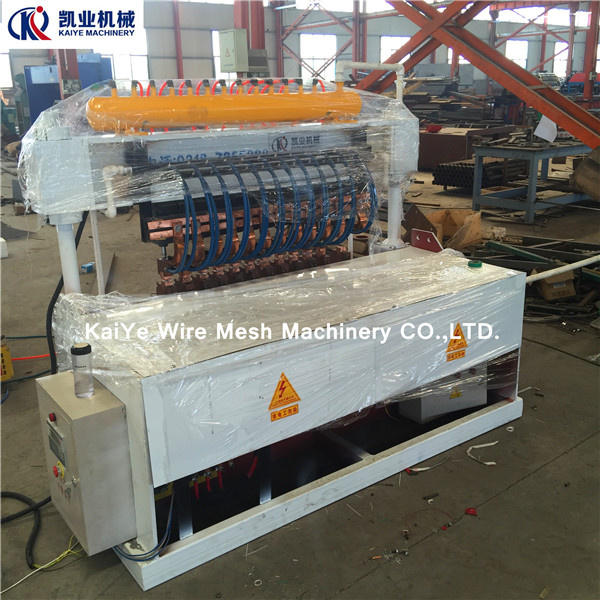

Automatic welded wire mesh machine
Our products applied the most advanced technology.He achieved CE certification.Applied for the national patent.
This is automatic wire mesh welding machine line for the changeable diameter. PLC controlled system and touch screen make the machine line easy to operation. All the components used are with famous brand both aboard and at home. They guarantee the machine line has perfect performance and high quality as wall as long living life.
1), This kind of machine is expert to produce mesh sheet. The finished mesh is much smoother than mechanical machines products.
2), PLC control. Easy to set and control. It makes this machine more intelligent and reasonable.
3), The weft wire supply is automatic.
4), The greatest advantage is possible to adjust the distance of wefts at random on the same mesh sheet.
Mechanical specifications:
1.Mesh Width: 1200-2500mm
2.Mesh length: <=6000mm
3.Wire diameter: 2.5-14mm
4.Warp Distance: >=100mm
5.Weft distance: >=50mm
6.Welding speed: 60 times/min
7.Electrode Number: 22sets
8.Power: 380V-510V 50HZ
Wire diameter
|
3.0-6.0mm |
Line wire form |
Pre-cut wire |
Weft wire distance |
50-300mm |
Weft wire form |
Pre-cut wire |
Line wire distance |
50-300mm |
Rated voltage |
380V 50HZ |
Welding net width |
1500mm |
Rated power |
600KVA |
Welding speed |
60 times/min |
Overall dimension |
6×3.2×1.8m |
Welding Points |
31 |
Length wire net |
6000mm
|
In order to give you one accurate quotation sheet,please supply us more of your requirements as below:
1.wire diameter range
2.mesh width
3.panel length
4.mesh opening size
5.industrial votage/frequency
If you have any interest in wire mesh fence panel welding machine or other wire mesh machine products,please feel free to contact with us.
Phone: 0086-15931130356
KaiYe Wire Mesh Machinery Co., Ltd. (Original China Anping Jia Sheng Welding equipment Factory) was founded in 1998, which is a professional manufacturer in wire mesh machine field of China with sophisticated technology. We have ISO9001: 2008, and SGS certification. Our customers are from all over the world, such as the United States, Brazil, Mexico, Malaysia, Australia, India, Russia, Iran, Kazakhstan etc.
In order to speed up the development and promote export, enhance overall competitiveness, our company set up a wholly owned subsidiary --ShiJiaZhuang Golden Harvest industry &trade Co., Ltd. By the efforts of all staff, our company has now developed into a research and development, design, manufacturing, sales for the integration of large-scale professional welding equipment manufacturing enterprises.
Our wire mesh machinery technology is advanced, Aesthetically pleasing, stable performance, low noise, easy operation, save energy and high efficiency.
In order to supply better service for our customers, We insist on the following principles.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee, and once the equipment damage during this period of time, we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
5. We can making machines according to customer's requirements.
