Product Specifications
| Prod Model: |
HDL W11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
42CrMo, Hb241-286 |
| Rollers: |
3 Rollers |
| Type: |
Pipe and Tube Bending Machine |
| Application: |
Machinery & Hardware |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Type For Cutting Machine: |
Bending |
Product Description
Hydraulic upper roller symmetrical rolling machine is used for rolling certain plates into the form of drum and arc. The upper roller can move horizontally and vertically so the auxiliary equipments are not needed. It can finish the pre-bending and curvature forming of the two ends. The machines are widely used in the industries of petroleum, chemical, cement, shipyard, boiling, aviation, water conservation and important electricity transmission tower.

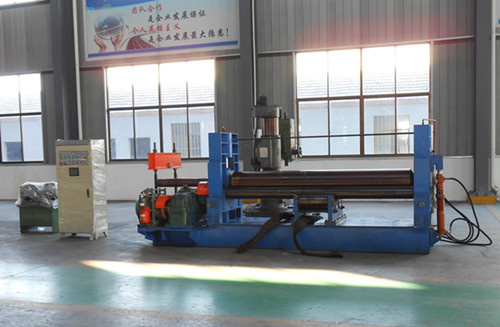

This is hydraulic three roller symmetrical rolling machine. The upper roller moves up and down, driven by oil cylinder on both sides. The two lower rollers rolls with the power provided by the motor.
This model of machine is very integrated, and very easy for diagnosing and repairing.
|
Type |
Max Bending Thickness(mm) |
Max Plate Width(mm) |
Diameter Of Upper Roller(mm) |
Main Motor Power(kw) |
|
HDLW11-30x2000 |
30 |
2000 |
360 |
22 |
|
HDLW11-25x2500 |
25 |
2500 |
370 |
22 |
|
HDLW11-30x2500 |
30 |
2500 |
420 |
30 |
|
HDLW11-20x3000 |
25 |
3000 |
430 |
30 |
|
HDLW11-30x3000 |
30 |
3000 |
450 |
30 |
|
HDLW11-40x2500 |
40 |
2500 |
500 |
37 |
|
HDLW11-40x3000 |
40 |
3000 |
540 |
45 |
|
HDLW11-50x3000 |
50 |
3000 |
580 |
55 |
|
HDLW11-60x3000 |
60 |
3000 |
660 |
75 |
|
HDLW11-70x3000 |
70 |
3000 |
710 |
90 |
|
HDLW11-80x3000 |
80 |
3000 |
770 |
90 |
|
HDLW11-90x3000 |
90 |
3000 |
820 |
110 |
|
HDLW11-100x3000 |
100 |
3000 |
860 |
110 |
|
HDLW11-110x3000 |
110 |
3000 |
900 |
132 |
|
HDLW11-120x3000 |
120 |
3000 |
950 |
132 |
