Product Specifications
| Prod Model: |
MF5706/ MF5712 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Mf5706/ Mf5712 |
| Precision: |
± (2+0.5fs) |
| Repeatability: |
0.5% |
| Power Consumption: |
≤ 10 |
| Output Mode: |
RS485 |
| Accuracy: |
?à0.6-1% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
DN50-100 |
| Sensor: |
Tube/Flange |
| Type: |
Vortex Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
Product Description
Description:

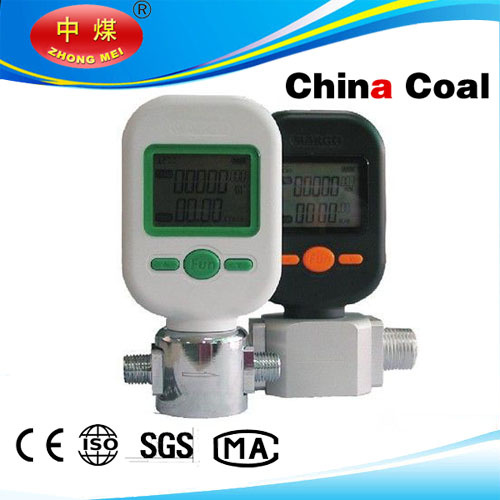

MF5700 gas mass flowmeters are based on our own technology of MEMS sensor chip developed by a wide, low power, portable design, display, measuring device capable of network General. The device applies to clinical monitoring and measurement of oxygen in hospitals (medical oxygen tables), nitrogen rushed in food industry, industrial and commercial needs of the gas flow monitoring.
Product features:
-Application of MEMS technology to achieve small flow testing, high precision
Design of low-power portable
-RS485 communication realization network centralized management
-Real time monitoring of the instantaneous flow rate and cumulative flow
-Password management, alarm
-Friendly interface, ideal for a variety of applications where gas monitoring
-Copper tube can be used for a variety of gas measurement
-Small volume, easy to install
Technical parameters:
Precision | ± (2+0.5FS) | ± (2.5+0.5FS) | % |
| Repeatability | 0.5 | % |
| Response time | ≤ 2 | sec |
| Power supply mode | 4 AA batteries or an external adapter power supply |
|
| Power consumption | ≤ 10 | mW |
| Output mode | RS485 |
|
| Display mode | LCD |
|
| Display units | Instantaneous flow rate: SLPM (L/min), cumulative flow: the NCM (m3) |
|
| Display resolution | 0.01 | 0.1 | L/Min |
| Keyboard | 3 |
|
| Functional description | Password settings; settings and clear the total; alarm function |
|
| Working pressure | ≤ 0.8 | MPa |
| Working temperature | -10~+55 | ºC |
| Pressure loss | ≤ 600 | ≤ 2000 | Pa |
| Working time cycle (battery) | > 60 |
|
| Standard calibration gas | N2,20°C,101.325kPa |
|
| Pinout | miniUSB |
|
| Pipe diameter | 6mm | 12mm | mm |
| Mechanical interface | NPT 1/4 | NPT 1/2 |
|
| Weight | 350 | g |
