Product Specifications
| Prod Model: |
WH E20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Dot-matrix |
| Usage: |
Receipt |
| Style: |
Black and White |
| Interface Type: |
RS232/Ttl,Parallel |
| Max. Paper Size: |
57mm*30mm |
Product Description

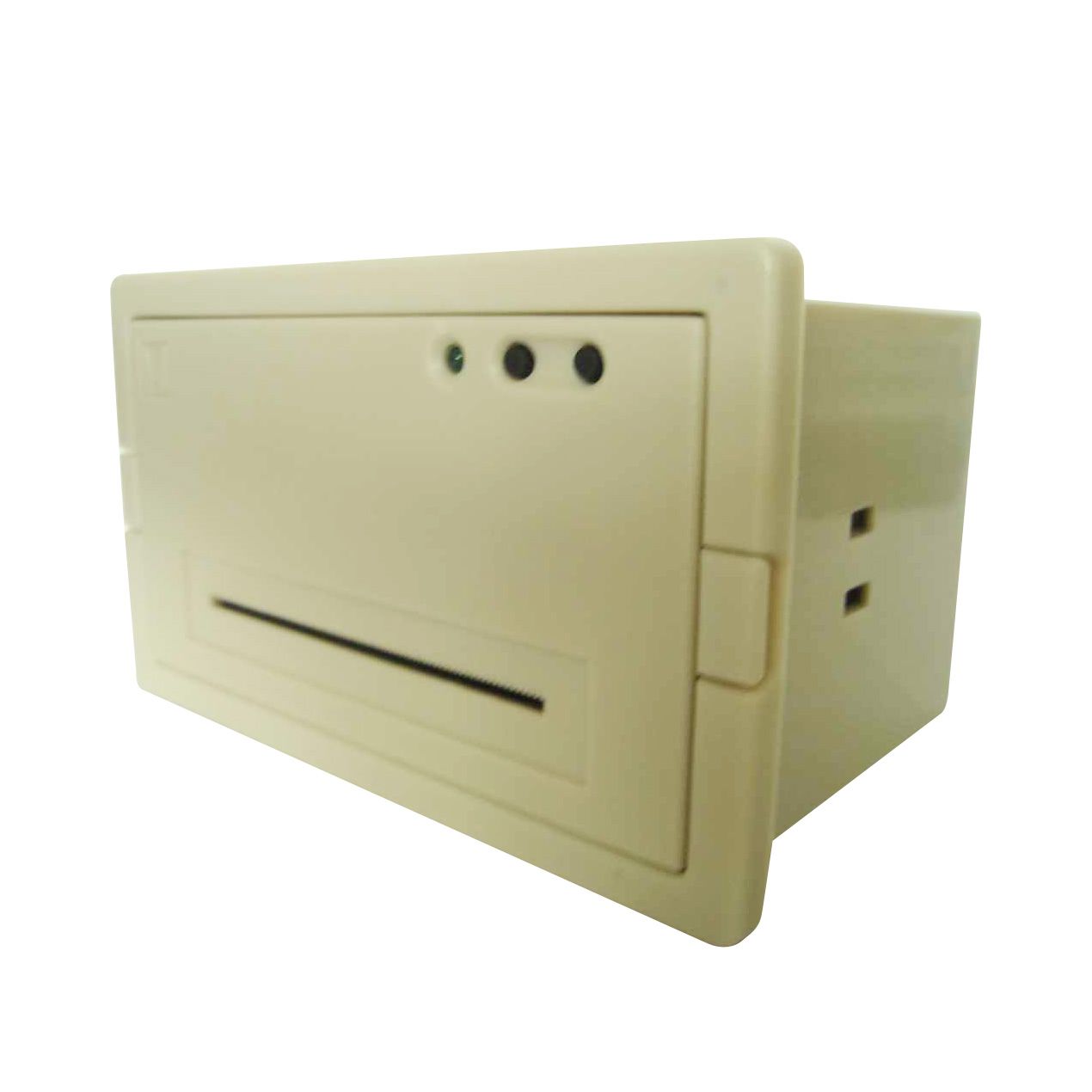

Thermal panel printer / DOT matrix printer / POS printer / USB printer / Portable printer / WH E20 with Serial interface / Parallel interface
| Very silent printing thru direct thermal printing method |
| Paper end sensors function and self-motion memory printing function |
| Serial(RS-232C, TTL)/Parallel interface |
| Abundant figure/curves/characters print function |
| Add coordinate curve printing function |
| Easier paper loading (key ejecting type) |
|
| Item | Specification |
| Printing method | Direct thermal line printing |
| Paper out detection | paper end sensors function |
| Paper loading way | easy paper loading |
| Paper width | 57 mm |
| Print width | 48 mm |
| Resolution ration | 8 dots/mm(384 dots/line) |
| Life of printing head | 6× 10 6 character lines |
| Printing speed | 30mm/sec(when the utilization rate is 20%. ) |
| Character per line | 64/32/24 |
| Character size | 6x8dots, 8x16dots, or12x24dots |
| Chinese character library | GB2312, 16x16dots, or24x24dots |
| Outline dimension(WxHxD mm) | 111.8mmx65.8mmx66mm |
| Installation dimension(WxH mm) | 103mm(W)x57mm(H) |
| Inlaid deepness | 60.8mm |
| Paper supplied | Thermal roll paper (57mm wide, 30mmø ) |
| Interface | Serial(RS-232C, TTL)/Parallel interface |
| Input Power | DC5V, 3A, MAX 4A |
| Operating temperature | 5° C~ 50° C |
| Storage temperature | -20° C~ 60° C |
| Operating humidity | 10° C~ 80° C |
| Storage humidity | 10° C~ 90° C |
Beijing Bright Technology Development Co., Ltd is a leading manufacturer of mini printers for over 16 years. The Company is a high technology firm which was established in 1998, and specializes in research, design, manufacture and sales of mini printers and interrelated products. Now we have many professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China.
