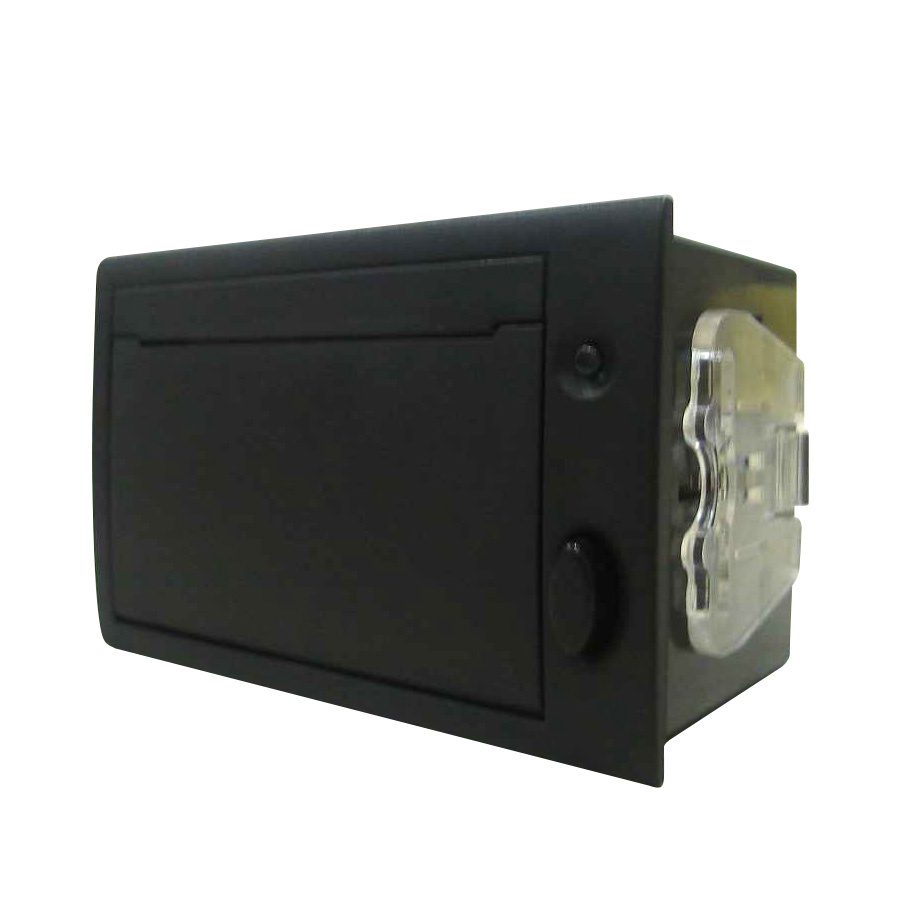

Product Specifications
| Prod Model: |
Wh-E17 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Receipt Printer |
| Style: |
Black and White |
| Interface Type: |
RS232/Ttl,Parallel |
| Type: |
Thermal |
| Max. Paper Size: |
57mm*30mm |
Product Description
Stylish, delicate and elegant appearance
Very silent printing thru direct thermal printing method
The installation dimension: 86mmx53.5mm
Paper end sensors and self-motion memory printing function
Serial RS-232C, or (serial TTL & Parallel interface)
Add coordinate curve printing function
Abundant figure/curves/characters print function
Easier paper loading
Item:Specification
Printing method:Direct thermal line printing
Paper out detection:paper end sensors function
Paper loading way easy paper loading
Paper width:57 mm
Print width:48 mm
Resolution ration 8 dots/mm(384 dots/line)
Life of printing head:6× 106 character lines
Printing speed:30mm/sec (when the character ratio is 25%. )
Character size:6x8dots, 8x16dots, or12x24dots
Chinese character library:GB2312, 16x16dots, or24x24dots
Outline dimension(WxHxD mm) :91mmx58.5mmx48mm
Installation dimension(WxH mm):78mmx53.5mm
Inlaid deepness:45mm
Paper supplied:Thermal roll paper (57mm wide, 30mmø )
Interface Serial:RS-232C /(serial TTL& Parallel interface)
Input Power:DC 5V, 3A
Operating temperature:5° C ~ 50° C
Storage temperature:-20° C ~ 60° C
Operating humidity :10° C ~ 80° C
Storage humidity:10° C ~ 90° C
Beijing Bright Technology Development Co., Ltd is a leading manufacturer of mini printers for over 16 years. The Company is a high technology firm which was established in 1998, and specializes in research, design, manufacture and sales of mini printers and interrelated products. Now we have many professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China.
