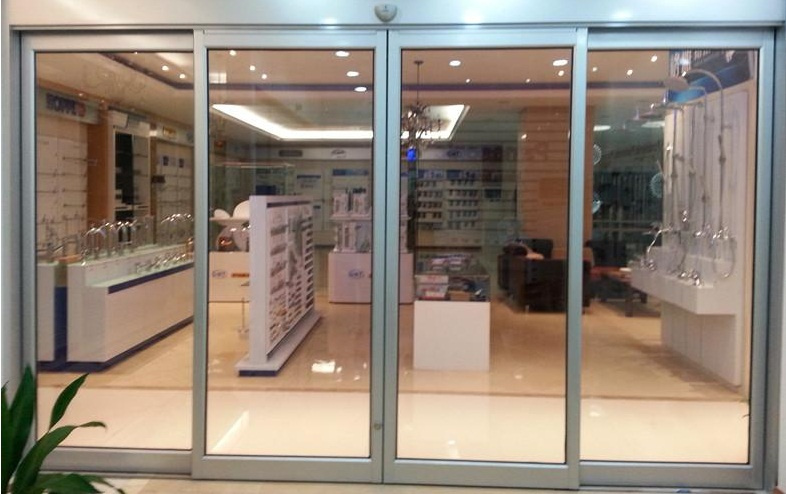

Microcomputer Intelligent Control Automatic Sliding Door

Microcomputer intelligent control automatic sliding door

Description:

1, Microcomputer intelligent control system : Control hub of the automatic door. Using the built-in micro-computer chips, the sensor detects signal automatically adjust and sets the control process according to detection of the size of door leafs and weight.
2, Power plant : Brushless DC motor made with imported technology, with advantages of long service life, large pulling force and low noise. It has self-locking function, close powerfully and increase security.
3, Universal adjustable hanger : Adopt adjustable structure, the hanger is stamped out with cold rolled steel plate, and DACROMET technology is adopted in surface treatment. There are guide wheels made with special material, which are fixed on the hanger move along with the arc orbit on the dynamic beam.
4, Belt and tension wheel parts: Constant tension belt and tension wheel parts are used to adjust tension of the belt. The constant adjustment device of the belt keep the timing belt with constant tension.
5, Belt parts : Adopt timing belt with high transmission efficiency, reciprocating motion is driven by a special motor, linked with hanger and drive the door leaf to move.
6, Dynamic beam: Novel structure, formed by high strength plated aluminum alloy with one-time extrusion, rugged construction with big loading, the surface is adopted electrophoresis processing, with bright and clean appearance.
7, Combined with the European design, installation is complete area is reduced, wide power work scope(AC 100 to 250V).
8, Low power consumption, energy-saving standby condition, the intelligent, easy installation, commissioning convenient program digital.
9, Operation parameters can be adjusted flexibly, operation, low noise, smooth roller walk .
10, Advanced  brushless DC motor and worm gear and worm reducer integration synthesis, high efficiency, torque, long service life .
11, Can choose a variety of trigger open the door way, have double the interlock function.
12, The same time only allow open a door , the motor with automatic lock function, in no signal trigger circumstances .
13, Powerful closed force always keeps the door leafs of the automatic door in a locked state (under the charged state),maximum bearing 120KG*2(door leaf) of activities to move the door,1million times of test, low failure rate.


Specifications:


Type	Single-Winged	Bi-parting
Model	F-120W	F-120WS
Door Weight	120kgX1(door)	120kgx2(door)
Door Width	DW=700mm to 1500mm	DW=650mm to 1350mm
Installation	Surface Install	Surface Install
Motor	DC24V Brushless DC Motor	DC24V Brushless DC Motor
Controller	The Micro-controller	The Micro-controller
Power Consumption	70W	70W
Voltage	AC80 to 250V (Regulate)	AC80 to 250V (Regulate)
Environmental Temperate	-20'c to +50'c	-20'c to +50'c
Volume	60decibel(max)	60decibel(max)
Starting Speed	450mm/second to 750mm/second	450mm/second to 750mm/second
Starting Times	Regulate from 0.5 second to 15 second	Regulate from 0.5 second to 15 second
Transmission	Rack belt 150 S8M	Rack belt 150 S8M
Open door range  : Full-open /Half-open(The distance can be regulated)		Full-open /Half-open(The distance can be regulated)
PFC Power efficiency : 0.95 (AC100 Full load)		0.95 (AC100 Full load)
