Equipment summary;

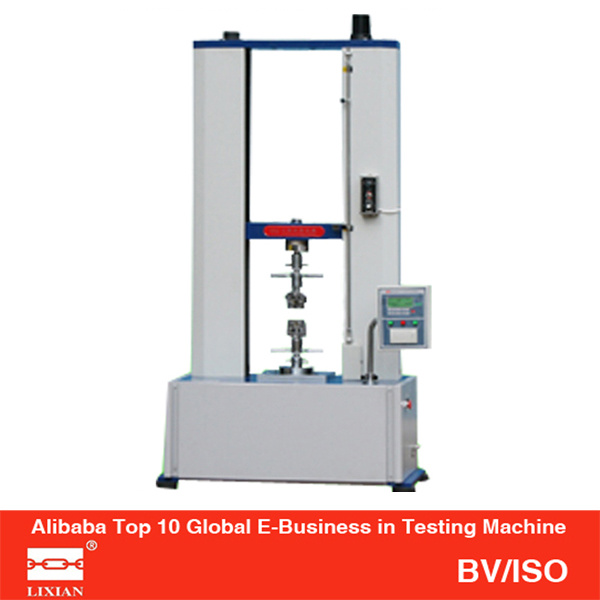

Hz-1009D Microcomputer-type universal material testing machine is controlled the rate of speed (sub-constant speed)and load by control long box, it has four-screen display, which can display real-time value, the value of peak force, displacement and the peak of displacement or peak of force, and the value of force units and the displacement units exchanged, stable performance, reliable and easy to operate. Used to judge the quality of products, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.
Main function:
The Microcomputer-type universal material testing machine mainly applied to test the force of metallic and non-metallic materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions( need to add extensometer) and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.
Corresponding standard:
GB/T16491-1996 electronic universal testing machine
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; Metallurgical iron and steel; Manufacturing machinery; Electronic equipment; Automobile production; Textile fiber; Wire and cable; Packaging materials and foodstuffs; Instrumentation; Medical equipment; Civilian nuclear energy; Civil aviation; Colleges and universities; Research Laboratory; Inspection arbitration, technical supervision departments; Building materials, ceramic; Petroleum & Chemical; Other industries.
| Modal | HZ-1009D Microcomputer-type universal material testing machine |
| Capacity | 5ton, 10ton option(from U.S.A.) |
| Max load | 10ton |
| Accuracy of load | ±1%(5%-100% of full scale) |
| resolution | 1/50000 |
| Units | Kg,lb,N, Mpa,Kg ,can be exchanged |
| Total displacement | Corder: 1000 P/R,accuracy: 0.005 mm. |
| Displacement resolution | 0.001mm |
| Testing speed | Testing speed 50~350 mm/min with stepless speed and 5 fixed-speed |
| Control form of transmission | AC motor and inverter |
| Effective tensile stroke | 1000mm;1200mm;1400mm
(can be increase the height according to the customer requirement) |
| Testing space | Testing width about 400 mm |
| Machine size | 107*56*210cmL*W*H) |
| power | Single-phase 220V 50HZ
(depending on different demand of force using different motor) |
| Fixture | Basic on the demand of customer |
| Protector | Overload, device of emergent stop, limit switch, leak current protective device. |
| Display | HZ-3030 display |
| Machine weight | 320 kg |
