Specifications:
Input power 9 to 15 VDC, 2 V pk-pk
Current consumption Nominal 8.6 mA
Alarm output Form A solid state relay, max series resistance 35 ohm
Alarm indication LED-indication screw no. 3
Sensitivity adjustment 5 steps of approx. 6 dB each
Test output Screw no. 4 for measuring ambient noise level
Detection range 3 to 14 m radius. See Installation Manual for planning
Purposes
Tamper protection Temperature 84° C, drill shield, opening contact, pry-off
Contact
Low voltage alarm 7.5 V
IP rating IP30
Operating temperature -20 to +55° C
Relative humidity 90% at 30° C
Dimensions (W x H x D) 81 x 101 x 28 mm
The VV600/602 Plus series seismic detectors are designed to detect attempts to break into vaults, safes, night deposit boxes, automatic teller machines (ATMs) and other reinforced physical areas such as data storage's and filing cabinets. The VV600 Plus Series is a next generation development based on proven high technology electronic processing with excellent secure detection without false alarms. Not only with a new look but also designed for the highest security with full-scale tamper protection and two possibilities of testing.
For more details, please:
Contact: Tina
Sype: Dana_z88
TEL: 0086 -13316516142
|
Name: |

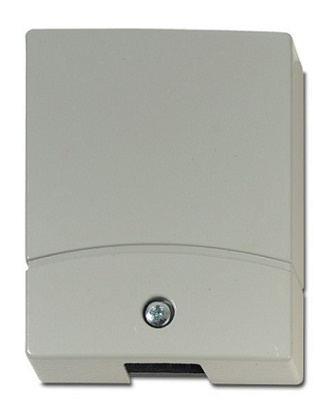

Mini ATM Vibration selective microphone Sensor /Seismic Detector |
|
Model: |
Texecom VV600-PLUS |
|
Power supply: |
from 9 to 15V, max. ripple 2V pp, nom. Value 12V |
|
Current consumption: |
24mA max |
|
Alarm output: |
SPTS NC relay capacity 100mA at 30V(3w) opens in alarm for approx.1/2 second |
|
Tamper output: |
micro-switch capacity 100mA at 30V(3W) |
|
Alarm Indicator: |
Led remote output for VT608/VT609; at rest=negative ; alarm on=contact open |
|
Adjustment: |
potentiometer with 5 settings,6db each setting |
|
Range: |
see table above |
|
Anti-tamper protection |
withstands temperatures of 84° C,anti-rilling shield, contact against magneticfields,antiopening device and cut off,low electricity supply(under 7V)warning cicuit |
|
MTBF: |
240,000philips method |
|
Operating temperature: |
de+5° C to +40° C |
|
Ralative humidity: |
90% |
|
electrostatic discharges 20KV max |
|
electrical discharges 1.5KV to 0.4mJ max |
|
Dimensions: |
80*100*30mm(H*L*D) |
|
Colour: |
beige |
|
Weight: |
250g
|
