Product Specifications
| Prod Model: |
HY700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Load: |
700kg |
| Type: |
Skid Steer Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
CE |
| Condition: |
New |
Product Description

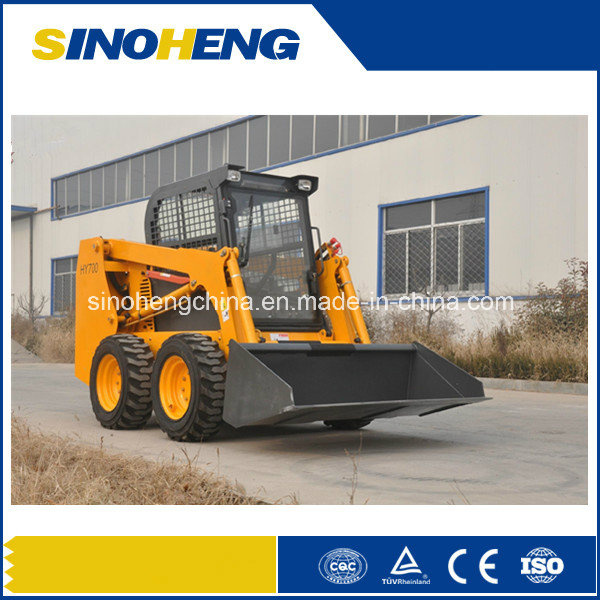

Mini Digger with CE Mini Skid Steer Loader, Skid Steer Mini Loader is a kind of using on both sides of the wheel linear velocity difference and realization of vehicle steering wheel special chassis equipment, USES the wheel travel mechanism, all-wheel drive, slip, can be on the job site random rapid replacement or articulated a variety of work device, so as to adapt to different work environment and job content of slide steering wheel Loader power generally is 20 ~ 50 kw, host quality from 2000 to 4000 kilograms, speed is 10 ~ 15 km per hour, about job content is mainly used in narrow job site ground undulating transform frequent occasions, suitable for industrial application terminal handling city infrastructure construction.
Ideal, versatile and powerful, our machines can be well used in worksite of construction, landscaping, nurseries, masonry, concrete, agriculture and many other applications.
4-in-1 bucket, auger, trencher, snow blower, snow blade, backhoe and more attachments for options
Self-leveling action by simple mechanical device keeps buckets, pallet forks and other attachments level during lifting actions.
All hydraulic aggregates are made by REXROTH, SAUER or B&P and so on, a high reliability and durability is ensured.
| Item | HY700 |
| Max working height(A) | 3490 mm |
| Max pin height(B) | 3028 mm |
| Max Dumping height(D) | 2266 mm |
| Max Dumping distance(F) | 437 mm |
| Wheel base(G) | 1044 mm |
| Total height(H) | 1979 mm |
| Ground clearance(F) | 196 mm |
| Overall length without bucket(J) | 2621 mm |
| Total length(L) | 3400 mm |
| Bucket width(M) | 1720 mm |
| Total width(W) | 1665 mm |
| Departure angle(α) | 19º |
| Dumping Angle at max height(β) | 41º |
| Rollback of bucket on ground (θ) | 18º |
| Turn radius(R) | 2056mm |
| Engine |
|
| model | Euro2engine |
| Rated power(KW) | 45KW |
| Rotating speed(rpm) | 2500r/min |
| Noiase(Db) |
|
| Inside of cab | ≤117 |
| Outside of cab | ≤117 |
| Hydraulic System |
|
| Pressure(Mpa) | 15MP |
| Operating Load | 700KG |
| Bucket Capacity | 0.39m³ |
| Travel Speed | 0-10Km/h |
| Operating Weight | 2860KG |
| Tyre Model | 10.0-16.5 |
SINOHENG is a professional exporter of construction machinery in China, working with government manufacture of XCMG and SINOTRUK. On the basis of the Groups, we export the construction machinery more than 100 countries. We always help our customers find the most suitable machines according to customer local market. From us, you could get all the construction machinery you need at earlier time. In the meanwhile, you could enjoy the most competitive price, strong quality and sales service here. We sincerely welcome you contact us for cooperation!
1. Loader: Engine power: 25HP-532HP
Bucket capacity: 0.3m3-6.5m3
Rated load: 800kg-12000kg
Main product: wheel loader, skid steer loader, mini loader, backhoe loader, etc
2. Crane: Lifting weight: 5ton-2000ton
Main product: truck crane, rough terrain crane, truck mounted crane, crawler crane, all-terrain crane, tire crane, etc
3. Dump truck, tractor truck, mixer truck, semi trailer, container transport semi trailer, concrete mixer semi trailer, tanker transport semi trailer, wrecker truck and other different series.
Other series of construction machinery: forklift, motor grader, road roller (compactor), excavator, concrete pump, telescopic handler, etc
