| Price: | US $ 20500-23000/Set |
|---|---|
| Trade Terms: | FOB,CFR,FCA |
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union |
| Prod Model: | 5142GJB |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Drive Type: | LHD /Rhd |
| Transmission Type: | Manual |
| Certification: | CCC |
| Engine Type: | 4 Stroke |
| Fuel: | Diesel |
| Condition: | New |
| Emission Standard: | 2/3 |
| Maximum Horsepower: | 130HP |
| Payload: | 6t |
Items | Descriptions | Specifications and Types | |||||

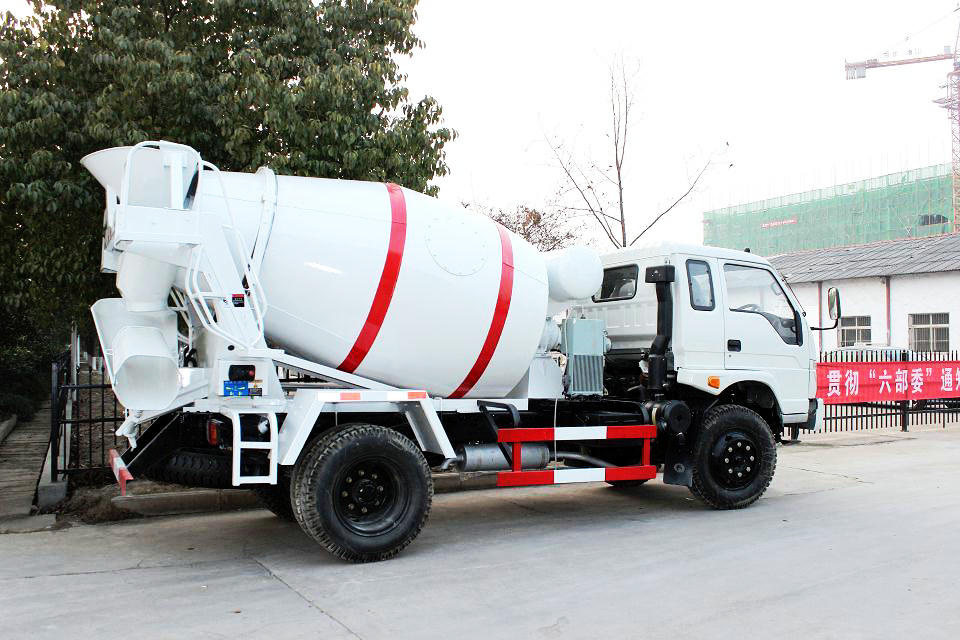

| General | Truck Name | FORLAND 4m3 concrete mixer truck | |||||
| Drive Type | 4*2 right -hand drive | ||||||
| Overall Dimensions L*W*H(mm) | 7125*2480*3450 | ||||||
| Chassis | Brand | FORLAND | |||||
| Chassis Model (Model No. ) | BJ5142GJB-G1 | ||||||
| Tire | 8.25-20 | ||||||
| Engine | Engine model and emission | YC4D130-33(Euro 2) | |||||
| Engine type | Four-cylinder/in-line/ water-cooling/ four-stroke/supercharged intercooling/ diesel engine | ||||||
| Displacement(ml)/Power(kw) | 4200/96 | ||||||
| Fuel type | diesel | ||||||
| Gearbox | Gearbox type | 145HF | |||||
| Gearbox speed | 5-Speed with deputy variable speed& 1 reverse gear | ||||||
| Brake | Service brake type | Drum type, air pressure double loop braking | |||||
| Parking brake type | Energy storage spring rear wheel braking | ||||||
| Basic parameters | wheelbase(mm) | 3600 | |||||
| Axles No. | 2 | ||||||
| Gross weight | 13560 | ||||||
| Payload weight | 7505 | ||||||
| Kerb weight | 5860 | ||||||
| Leaf spring No. | 9/11+9 | ||||||
| Approaching/Departure Angle(° ) | 29/20 | ||||||
| Front/Rear Trace(mm) | 1790/1725 | ||||||
| Front/Rear Suspension(mm) | 1245/1980 | ||||||
| Performance | Max speed(km/h) | 80 | |||||
| Maximum gradeablility (%) | ≥30% | ||||||
| Minimum ground clearance(mm) | 190 | ||||||
| Minimum turning radius (m) | 6.9 | ||||||
| Standard configuration | Radio,spare wheel,adjustable steering wheel,Power steering | ||||||
