Product Specifications
| Prod Model: |
SWM618 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Bucket Capacity: |
0.7m3 |
| Rated Load: |
1200kg |
| Min Turning Radius (Mm): |
4532 |
| Dumping Height (Mm): |
3250 |
| Rated Power: |
44kw |
| Wheel Base (Mm): |
2070 |
| Overall Dimension (L*W*H): |
5280*1870*2730mm |
| Drive Means: |
4WD |
| Rated Speed Of Engine (Rpm): |
2200 |
| Machine Weight (Kg): |
3916 |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Small Loader |
| Certification: |
ISO9001: 2000 |
| Load And Unload Method: |
Front Discharge |
Product Description
Features

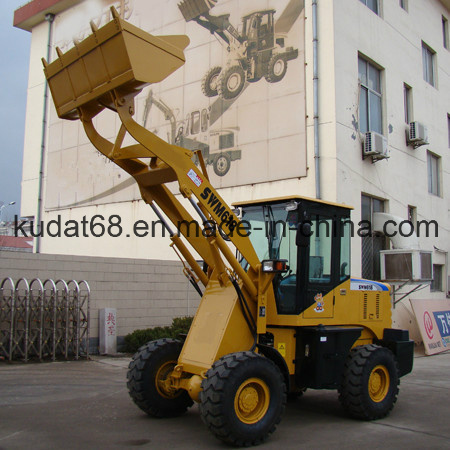

1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieveshort turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow site, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.
|
Main Technical Parameter of SWM618 |
|
Item |
Parameter |
|
Rated load (kg) |
1200 |
|
Bucket capacity (m 3 ) |
0.7 |
|
Wheel tread (mm) |
1480 |
|
Wheel base (mm) |
2070 |
|
Min turning radius (mm) |
left4532
right4332 |
|
Min ground clearance (mm) |
270 |
|
Dumping height (mm) |
Tooth3180
Toothless3250 |
|
Corresponding dumping reach (mm) |
Tooth910
Toothless810 |
|
Lifting time (s) |
4.75 |
|
Hydraulic cycle time (s) |
7.57 |
|
Maximum excavating force (KN) |
Bucket40.9 Swimming arm22.5 |
|
Drive mode |
Four are Drive |
|
Machine weight (kg) |
3916 |
|
Overall dimensions (mm) (Length*width*height) |
5280*1870*2730 |
|
Engine model |
ZH4100Y4 |
|
Rated power of engine (kw) |
44 |
|
Rated speed of engine (rpm) |
2200 |
