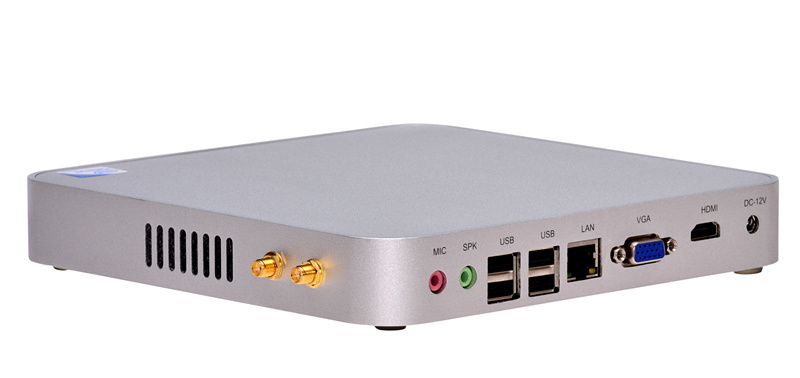

Mini PC with Intel C1037u Dual Core 1.8GHz, with HDMI, with WiFi (MINI-C10)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
MINI-C10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Capacity: |
≥4GB |
| CPU: |
Intel |
| HDD Capacity: |
320GB |
| GPU: |
Intel |
| Memory Type: |
DDR3 |
| CPU Frequency: |
1.5-2.0GHz |
| Display Screen Size: |
No |
| Display Type: |
No |
| Drive Type: |
No |
Product Description

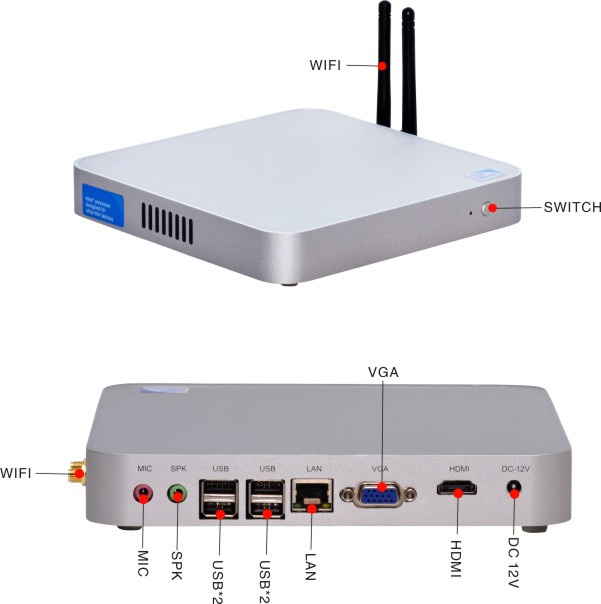

Main Feature·Intel C1037U+NM70·Intel C1037U dual core 1.8GHZ·2G memory, max up to 4G .SSD16Gb.·Support DC12V power supply Introduction MINI-C10 is Mini PC with MINI ITX mother board, with Intel C1037 dual core 1.8GHZ processor, 2G DDR3 memory, SSD16G,It comes with 1* VGA, 1*HDMI, 1*RJ45, 4*USB, 1*Audio line-in/out, with fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Mini PC's help user to save space with multi-functions which can be used to office, equipment, transportation, automation, communication etc. | Material | Al-alloy case |
| CPU | Intel C1037U Dual Core 1.8GHZ |
| Chipset | Intel C1037+NM70 |
| Graphic display | Intel HD Graphic NM70 |
| Memory | DDR3 2Gb/4Gb(Optional) |
| Hard disk | 16G SSD/32G SSD/HDD(Optional) |
| I/O | 1 x VGA |
| 1 x HDMI |
| 4 x USB2.0 |
| 1 x RJ45 10/100/1000M LAN |
| 1 x AUDIO LINE OUT/MIC IN |
| 1 x WIFI (optional) |
| 1 x RS232 COM ( optional) |
| Power supply | DC 12V Input |
| LED light | 1 x Power LED |
| Color | Silver |
| Dimension | 197*197*29mm |
| N.G | 2.0KG |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD)
1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD)
20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering information | MINI-C10: Mini PC with ITX mother board, with Intel C1037U dual core 1.8Ghz, W/16G SSD, W/2G Memory, 12v@5A power supply. |
