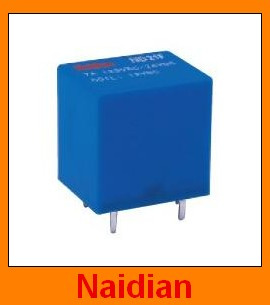

Mini PCB Relay (JZC-22F)
| Price: |
US $ 1.0/Piece |
| Trade Terms: |
FOB |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
JZC-22F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features
1. Extremely low cost.
2. SPDT configuration.
3. Standard PC layout.
4. Sealed version avaible.
Outline Dimensions And Wiring Diagram
Ordering information
|
Mark demonstration |
JRC-22F /12VDC-1ZS |
|
Type |
JRC-22F |
|
Coil voltage |
1.5 3 5 6 9 12 24 VDC |
|
Contact Arrangement |
1Z: SPDT , 1H: SPST-NO |
|
Termination |
NO:PCB 3: Model() |
|
Coil power |
(NO) L : Standard(0.2W) , N: 0.36W , B: 0.45W |
Contact Data
|
Contact Arrangement |
1 Z (1C) 1H(1A) |
|
Initial Contact Resistance |
100mΩ (1A 24VDC) |
|
Contact Material |
AgNi/Au |
|
Contact Rating(Res.Load) |
H:3A 120VAC/30VDC
Z :2A 220VAC/30VDC
3A 120VAV/24VDC |
|
Max.switching voltage |
220VAC/60VDC |
|
Max.switching curreng |
3A |
|
Max.switching power |
360VA / 72W |
|
Mechanical life |
1×107 times |
|
Electrical life |
1×105 times |
Characteristics
|
Initial Insulation Resistance |
1000MΩ 500VDC |
|
Dielectric Strength |
Between coil and Contacts |
1000VAC 1minute |
|
Between open contacts |
500VAC 1minute |
|
Operate time(at nomi.Volt) |
Max:10ms |
|
Release time(at nomi.Volt) |
Max:5ms |
|
Temperature rise( voltage) |
H:50deg N.B:60deg |
|
Shock Resistance |
stability |
98m/s2(10g) |
|
intensity |
980m/s2(100g) |
|
Vibration Resistance |
1.5mm 10~55Hz |
|
Humidity |
35%~85% |
|
Temperature |
-25~+55deg |
|
Termination |
PCB |
|
Unit weigth |
5g |
|
Construction |
Sealed IP67 And Guards against the solder |
Coil Data
|
Nominal Voltage VDC |
Action voltageVDC |
Drop-out Voltage VDC |
Max voltageVDC(25deg) |
Coil Resistance Ω |
|
L |
N |
B |
|
3 |
2.3 |
0.3 |
3.9 |
45 |
25 |
20 |
|
5 |
3.8 |
0.5 |
6.5 |
120 |
70 |
56 |
|
6 |
4.5 |
0.6 |
7.8 |
180 |
100 |
80 |
|
9 |
6.8 |
0.9 |
11.7 |
400 |
220 |
180 |
|
12 |
9.0 |
1.2 |
15.6 |
700 |
400 |
320 |
|
24 |
18.0 |
2.4 |
31.2 |
2800 |
1600 |
1280
|
