Waterproof anti GSM signal Jamming function motorcycles MT01 car GPS tracker(*2 years warranty *Free tracking platform *Technical support and after-sale services lifelong )Products Overview:
MT01 is a kind of mini GPS vehicle tracking product can be used for tracking and security of automobile and motorcycle etc. Mini size, built-in antenna and waterproof desinged, easy to be installed, power voltage range from 6V-24V, therefore can satisfy basic tracking and security demands for all kinds of vehicles.

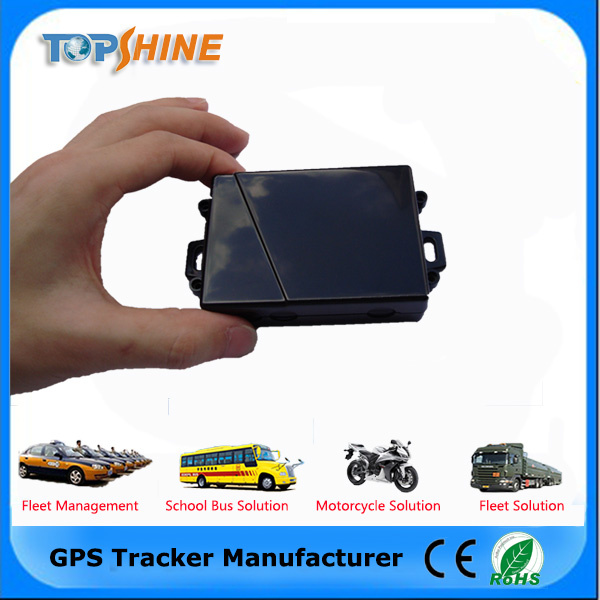

Picture:
Specification: Items | Specifications |
Dimension | 80*58*22 |
Weight | 90g |
ChargingVoltage | +9V~+24V |
SIM card type | 3V |
Power consumption | Active mode(peak) < 1.0A Active mode(avg.) < 300Ma Idle mode <50mA |
Operating Temperature | -20~+75 Celsius degree |
Humidity | Up to 75% non-condensing |
External Antenna | Connected via 50 ohm coax connector |
External SIM Card | Connected via SIM card connector |
Button | 1SOS and 1poweron/off |
Microphone | Optional |
Transmit Power | Class 4(2W) for E-GSM 900 and 850 Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900 |
Sensitivity | -104dBm minimum for E-GSM 900 AND 850 -102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900 |
GPSChip | LatestGPSSIRF-StarIIIchipset |
GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.) Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps |
Speech Codec | Triple rate Codec Half rate_ETS 06.20 Full rate_ETS 06.10 Enhance full rate_ETS 06.50/06.06/06.08 |
I/O | 2 Digital Inputs (1positivetriggeringand 1negativetriggering) 2 Outputs |
Packing Measures: | |
Neutral | Dimension (mm) | Weight (KG) | Capacity |
Box | 165x155x50 | 0.25 | 1 set |
Carton | 470x340x310 | 9 | 30 sets |
Functions & Features:
1. Original appearance design for this tracker
2. Integrated built-in GPS & GSM antenna, high sensitivity
3. Water-proof, compact size. Easy installation
4. Auto tracking by SMS/GPRS (TCP/UDP supported)
5. Can Locate and send SMS with Google map's link
6. Arm/disarm system by phone call or SMS
7. Geo-fence alert, over-speed alert, power cut-off alert
8. SOS panic button to call for help in case of emergency
9. Supported by GPRS01 or SMS01 platform, user can check the real address name(city, street, etc) by SMS or website
10. It can be used to upgrade the normal alarm
11. Power saves design with 800 mAh backup battery
12. Water-proof, compact size. Easy installation
13. Cut off egine in safe condition
14. Odometer function (=Mileage report)
15. Inbuilt 512Kb data logger
16.1 positive input, 1 negative input and 2 outputs
17. Simple installation, basic funtions, low price
18. Low cost tracker for 12V and 24V vehicles.
Solutions:
Low price of Car alarm + GPS tracker solution
Other customization function with MT01
For Motorcycle, Private car, Car rental/leasing company tracking & security, Fleet management etc.
Complete Set:
Standard Package:
Main unit
Wire cables 1 PCS
Relay 1 PCS
Optional Accessories:
Speical USB cable Free Management Software
Web-based Tracking Platform GPRS01
Tracking Interface
Welcome to test our free tracking software:
Tracking platform site: www.track-car.com
Username: hongkong
Password: 123
Tracking platform site: www.tstrack.net
Username: test1
Password: 123
What can we do for you:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
Inquiry Now!!
Maoming Topshine Electronic Technology Co., Ltd.Is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world.90% of our products are for export.Our duty is to deliver the right product at the best price to meet your requirements.We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
