Product Specifications
| Prod Model: |
300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Structure: |
Lamp |
| Movement Way: |
Heating |
| Heating Mode: |
Heating |
Product Description

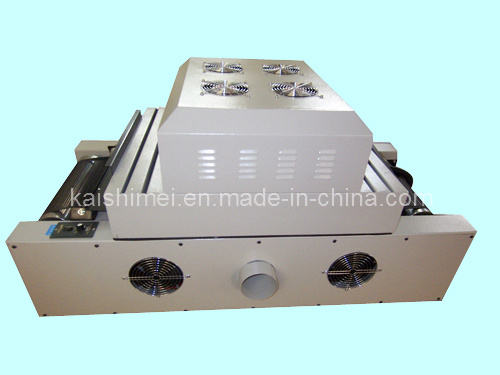

1. Device name: Mini Curing Machine
2. Application:
This is a transmission-type UV curing device, widely used in mobile phone shell, membrane switch, electronic plastic shell surface UV paint coating; Used in the curing of electronic components, LCD, sealed plastic terminals, mobile component sticking, plastic components sticking, and LCD, etc; This device is small, light weight, well-made, easy to move, for desktop placement.
3. Main technical parameters:
1. Dimensions: 1200× 560× 600mm(L× W× H);
2. Feed length: 250mm;
3. Expected length: 250 mm;
4. Mesh belt width: 300mm;
5. Mesh belt material: Teflon mesh belt;
6. Feed height: 148mm;
7. Inlet height: 80mm;
8. Lamp power: 2.0KW/1PC, 2PC lamp,
You can manually adjust the lamp irradiation heigt;
9. Lamp irradiation extent: 300mm;
Irradiation intensity: 133w/cm
10. Exhaust fan: 7;
11. Wave peak value: 365nm;
12. Settling time: About 3minute;
13. Lamp life: Average 1, 000hour;
14. Transport motor: 25W/1PC, 1: 30;
15. Transmission speed: 0-20m/min;
The transmission speed is non-pole speed adjustment;
16. Total power: 4.2KW;
17. Power: 220V;
