Product Specifications
Prod Model: |
SD-DA1000L |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Feature: |
Variable Speed Level-Start |
Torque Range: |
0.1-1.0kgf.Cm |
Speed: |
Hi 1000r.p.m,Lo 150 r.p.m |
Machine Screw: |
1.0-1.5mm |
Self-Tapping Screw: |
1.0-1.4mm |
Certificate: |
CE |
Type: |
Precision Screwdriver |
Voltage: |
DC Low Voltage |
Automation: |
Fully Automatic |
Power Source: |
Electricity |
Power Supply Voltage: |
30V |
Product Description

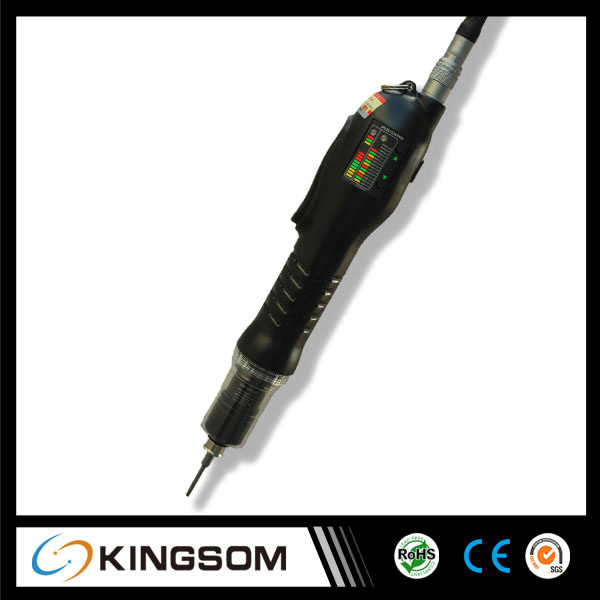

Mini Variable Speed electronic screwdriver
Brushless Electric Screwdriver SD-DA1000L,Mini electronic screwdriver,micro electrical screwdriver
Performance of DC Variable Speed Brushless Electric Screwdriver (SD-DA1000L):
1. The world's first ergonomics electric screwdriver with variable speed and constant torque.
2. We do not pursue the minimum size, but oly design the electric screwdriver accorded with ergonomics best.
3. Brushless constant torque & Variable speed Electirc Screwdriver series. (The leader of electric screwdriver).
Feature:
1. The world's first variable speed electric screwdriver by free setting from 150(r. P. M) - 1000(r. P. M) with LED speed display and constant torque, which is convenient for a diverse range of precision fastening.
2. Forward& Reverse button switches are used separately, allowing the one-handed operation, improving work efficiency.
3. High-performance low-voltage brushless lmotor is used and produces no dust, low noise and durability. Maintenance is not necessary, meeting the environmental requirements.
4. It is ergonomically designed with samll size, light weight, streamline design outer casing and apropriate grip handling.
5. The out casing for all kinds of models is madE of DuPont Anti-static engineering PC material.
6. Torque can be adjust as low as 0.1kgf. Cm-1.0kgf. Cm and 0.2kgf. Cm-2.0kgf. Cm two models, suitable for high- precision industries. Such as mobile phones, optical drivers, IT digital products, etc, .
Model | SD-DA1000L | SD-DA1200L |
Input voltage | DC 30V |
Torque range | (Kgf.cm) | 0.1-1.0 | 0.2-2.0 |
(Lbf.in) | 0.09-0.87 | 0.18-1.74 |
(N.m) | 0.01-0.1 | 0.02-0.2 |
Accuracy | ±3% |
Torque Adjustment | Stepless Adjustment |
No load Speed(r.p.m) | HI | 1000 | 1000 |
LO | 150 | 150 |
Rating Power(W) | 15 |
Screws diameter(mm) | Machine screw | 1.0-1.5 | 1.0-2.0 |
Self-Tapping screw | 1.0-1.4 | 1.0-1.7 |
Weight(g) | 200 |
Length(mm) | 180 |
Kingsom Technology Co., Ltd., with the factory in Dongguan, which is located in Huaqiang North road of Shenzhen where has become the biggest electronic market of Asia. Works under the principle of meeting demand of the market with soonest speed, our company is integrating research, production and development of the following products.
1. Lead Free Soldering Station, Lead Free Soldering Pot etc. ---Soldering Equipment series
2. Tape Dispenser, Screw Feeder, Dispenser Controller etc. ---Automatic Instruments sereis
3. Electric Screwdriver, Power Supply etc. --- Electronic and Air Tools series
4. Torque Meter, Digital Force Gauge etc. ---Measuring Instruments series
5. Ionizing Air Blower, WristStrap Tester etc. ---Static Eliminator and Tester Series
6. Antistatic Wrist Strap etc. ---Cleanroom Consumable series
7. Magnifying Lamp, LED Lamp etc. --- Optical Items series
Most products passed the CE cerfitfication and proved the SGS report. Our sales network not only spread all over domestic market here, but enjoy the good popularity around the world including East and West Europe, North America, Middle East and Southeast Asia because of the high quality and fascinating prices.
We aim to be the excellent and always share the mutual benefits with our partners, to provide the best products satisfied services, competitive price and highest technology, to develop the best relastionship with our partners in the world.
