Product Specifications
| Prod Model: |
FECT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Electromagnetic Relay |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay |
Product Description
Specifications
1. Poles: 2, 4
2. OEM
3. Be used to remotely make and break the line
4. Attractive appearance, good quality

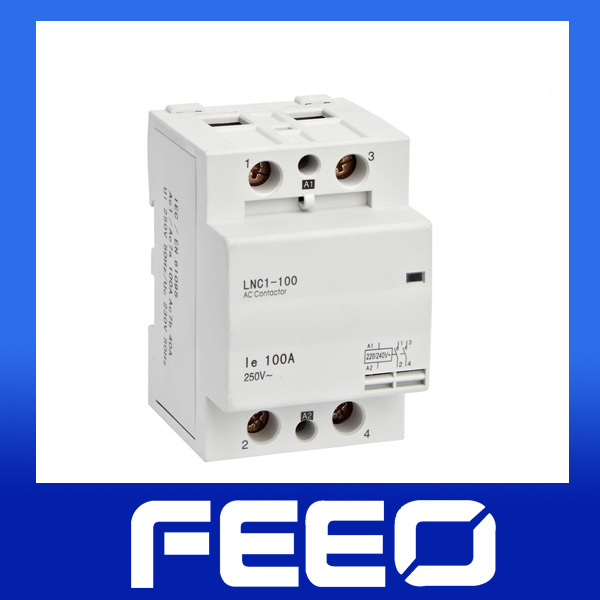

FEEO household Modular contactor
Magnetic AC contactor Feature:
AC Contactor is suitable for using in the circuits up to the rated voltage 690V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC moor. COM bin ED with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter...With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC60947-4, GB14048-4.
Those Household AC Contactor, module AC contactor is mainly applicableto a power system of AC 50Hz(or 60Hz) rated working voltage up to 230V, and in a lineof application class AC-7 a with rated working voltageup to 230V and rated working current up to 20A. It is used to remotely make and breakthe line.
The product is widely used in dwelling house, hotels and so on.
Specification
Standard control voltage (Ue): 20-230V/50/60Hz
Thermal continuous current (1th): 24A
Current rating for AC1: 24A
Pole number: 2, 4(either as main or auxiliary contacts)
Back up fuse gl max ratings: 35, 63, 80A
Mechanical endurance: 10 million cycles
Electrical endurance: 1 million cycles
Ambient temperature: -25~+55 degree Celsius
Connection capacity: Tunnel terminal for cables up to 25 square millimeters
Width in 17.5 square millimeters modules: 24A 35 millimeters (2 modules)
|
Type |
In(A) |
Rated AC-1 |
Power(kW) AC-3 |
Coil consumption
on pull-in holding |
Closing time |
Opening time |
|
FECT |
24 |
230V |
400V |
230V |
400V |
4W |
25-35ms |
30-40ms |
|
2P 4P |
9 |
16 |
2.2 |
4
|
