Mining Magnetic Drum Separator

Name: Mining Magnetic Drum Separator
Brand: china-manufacturer-directory.com
SKU: 771913825
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 1000-50000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	CT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
After Sale Service:	Whole Using Life
Installation:	Technical Guidance
Price:	Negotiable
Type:	Magnetic Separator
Certification:	CE
Warranty:	1 Year
Color:	Multi Color
Customized:	Customized
Condition:	New
Voltage:	Depend on The Model
Weight:	980kg~7200kg

Product Description

Our Magnetic Drum Separator has been sold to all over the world.You can give us your requirement,then we will give you a perfect project.

Magnetic Separator— Introduction

A wet permanent magnetic separator for separating strong magnetic minerals

Magnetic Separator—Capacity

8-240t/h

Magnetic Separator—Product Improvement

Magnetic system materials adopt ferrite and NdFeB with high performance, high coercive force and high remanence; the surface of the cylinder is lined with Xinhai wear-resistant rubber.

Magnetic Separator—Advantages

Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100~600mT

The same cylinder can be equipped with three types of tank adapting to different dressing process.

Small area taken, good separation for magnetic mineral, reduce the load of next process

Magnetic Separator—Product Introduction

Permanent magnetic drum separators have 3 kinds including downstream type, counter flow type and semi- counter flow type according to the difference of base structure.

Downstream type permanent magnetic drum separator: slurry flows in the same direction with drum

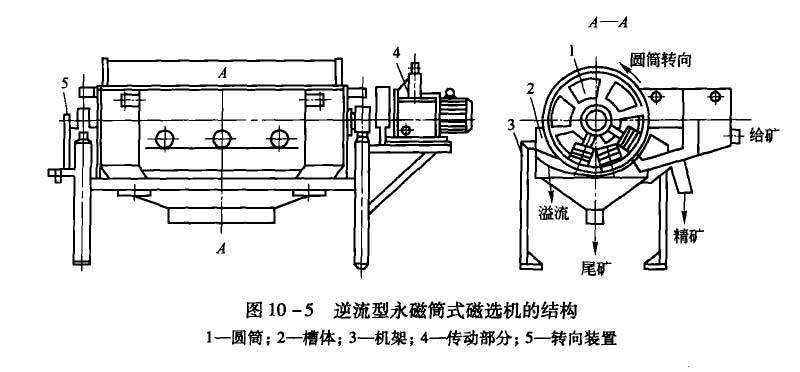

Counter flow type permanent magnetic drum separator: slurry flows over against drum, which create great conditions for cleaning of non magnetic ores. The non magnetic ores approach the clean surface of drum and the magnetic ores can be absorbed in the strongest magnetic field.

semi-counter flow type permanent magnetic drum separator: slurry is fed into cavity from the bottom of drum, and the magnetic ores fall into concentrate tank after reaching a certain height, while the non magnetic ores will enter into tailings tank along with slurry in the opposite direction with drum.

Magnetic Separator—Product Application

This machine is widely used in mineral processing, coal washing and chemical industries for strong magnetic minerals that wet classification size ranges from 0 to 6 mm, and divides the minerals into magnetic and non-magnetic materials. It often processes strongly magnetic materials such as magnetite, magnetic pyrite etc..

Model	Cylinder Dimension (mm)	Average value of dressing area and magnetic induction of the cylinder surface (mT)	Cylinder Revolution (r.p.m)	Feeding Particle Size (mm)	Capacity (t/h)	Motor Model	Motor Power (kw)	Weight (kg)
CTB-69	φ600*900	145-180	40	0~0.2	8-15	Y90L-4	1.5	981
CTN-69	φ600*900	145-180	40	0-0.6	8-15	Y90L-4	1.5	780
CTS-69	φ600*900	145-180	40	0-6	8-15	Y90L-4	1.5	830
CTB-612	φ600*1200	145-180	40	0-0.2	10-20	JTC561	2.2	1050
CTN-612	φ600*1200	145-180	40	0-0.6	10-20	JTC561	2.2	990
CTS-612	φ600*1200	145-180	40	0-6	10-20	JTC561	2.2	960
CTB-618	φ600*1800	145-180	40	0-0.2	15-30	JTC561A	2	1390
CTN-618	φ600*1800	145-180	40	0-0.6	15-30	JTC561A	2	1330
CTS-618	φ600*1800	145-180	40	0-6	15-30	JTC561A	2	1340
CTB-712	φ700*1200	155-180	35	0-0.2	15-30	JTC562A	2.8	1510
CTN-712	φ700*1200	155-180	35	0-0.6	15-30	JTC562A	2.8	1500
CTS-712	φ700*1200	155-180	35	0-6	15-30	JTC562A	2.8	1460
CTB-718	φ700*1800	155-180	35	0-0.2	20-45	JTC562A	2.8	1579
CTN-718	φ700*1800	155-180	35	0-0.6	20-45	JTC562A	2.8	1579
CTS-718	φ700*1800	155-180	35	0-6	20-45	JTC562A	2.8	1579
CTB-918	φ900*1800	165-180	28	0-0.2	25-55	XWD4-7-35	4	4000
CTN-918	φ900*1800	165-180	28	0-0.6	25- 55	XWD4-7-35	4	4000
CTS-918	φ900*1800	165-180	28	0-6	25-55	XWD4-7-35	4	4000
CTB-930	φ900*3000	165-180	28	0-0.2	52-100	XWD5.5-7-43	5.5	4280
CTN-930	φ900*3000	165-180	28	0-0.6	52-100	XWD5.5-7-43	5.5	4280
CTS-930	φ900*3000	165-180	28	0-6	52-100	XWD5.5-7-43	5.5	4280
CTB-1018	φ1050*1800	165-180	20	0-0.2	40-80	YCT280-5.5-19.2	5.5	3807
CTN-1018	φ1050*1800	165-180	20	0-0.6	40-80	YCT280-5.5-19.2	5.5	3807
CTS-1018	φ1050*1800	165-180	20	0-6	40-80	YCT280-5.5-19.2	5.5	3807
CTB-1021	φ1050*2100	165-180	20	0-0.2	40-80	XWD5.5-7-43	5.5	3921
CTN-1021	φ1050*2100	165-180	20	0-0.6	40-80	XWD5.5-7-43	5.5	3921
CTS-1021	φ1050*2100	165-180	20	0-6	40-80	XWD5.5-7-43	5.5	3921
CTB-1024	φ1050*2400	165-180	20	0-0.2	52-100	XWD5.5-7-43	5.5	4404
CTN-1024	φ1050*2400	165-180	20	0-0.6	52-100	XWD5.5-7-43	5.5	5132
CTS-1024	φ1050*2400	165-180	20	0-6	52-100	XWD5.5-7-43	5.5	4628
CTB-1030	φ1050*3000	160-180	20	0-0.2	120-200	XWD7.5-7-43	7.5	4431
CTN-1030	φ1050*3000	160-180	20	0-0.6	120-200	XWD7.5-7-43	7.5	4431
CTS-1030	φ1050*3000	160-180	20	0-6	120-200	XWD7.5-7-43	7.5	4431
CTB-1218	φ1200*1800	165-180	19	0-0.2	130-140	XWD5.5-7-43	5.5	5800
CTN-1218	φ1200*1800	165-180	19	0-0.6	130-140	XWD5.5-7-43	5.5	5800
CTS-1218	φ1200*1800	165-180	19	0-6	130-140	XWD5.5-7-43	5.5	5800
CTB-1221	φ1200*2100	165-180	19	0-0.2	55-110	XWD7.5-7-43	7.5	5800
CTB-1224	φ1200*2400	165-180	19	0-0.2	100-190	XWD7.5-7-43	7.5	6200
CTN-1224	φ1200*2400	165-180	19	0-0.6	100-190	XWD7.5-7-43	7.5	6200
CTS-1224	φ1200*2400	165-180	19	0-6	100-190	XWD7.5-7-43	7.5	6200
CTB-1230	φ1200*3000	165-180	19	0-0.2	130-240	XWD7.5-7-43	7.5	7200
CTN-1230	φ1200*3000	165-180	19	0-0.6	130-240	XWD7.5-7-43	7.5	7200
CTS-1230	φ1200*3000	165-180	19	0-6	130-240	XWD7.5-7-43	7.5	7200

Founded in 1993, Yantai Xinhai has 20 years experience as a Chinese leader in the mining machinery manufacture and mining EPCM projects service.

With large number of research institutes(machinery research institute, mine design research institute, installation and commissinging department, etc. ) and service engineers, our customers have a tremendous depth of technical resources they can rely on. What is more, 80% equipments for mineral processing have been improved by Xinhai and some technology reaches the international advanced level. Xinhai Mining Machinery Company has become the research & developing base of mining and mineral processing machinery industry in China.

In addition, Xinhai is committed to providing premium EPCM services for customers, which include mineral processing test, mine design, equipment manufacture, installation and commissioning, personnel training and target achievement. There are more than 400 high-performance EPCM projects all over the world which are provided by Xinhai Company.

What you need is what we can do. For an evaluation of your needs, please contact us at any time. Xinhai believes you will be impressed with the experience, the proficiency and the helpful attitude you find at every level within Yantai Xinhai Mining Machinery Company.
