Product Specifications

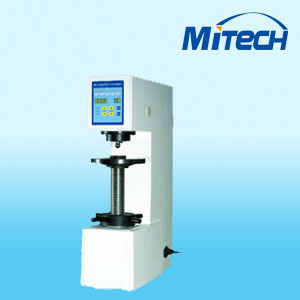

| Prod Model: |
HBE-3000A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Min Measuring Unit 0.005mm
Magnification of Microscope 20X
Dutation Time 5~60 sec
Overall Dimension series
Net Weight 125kg
Max Height of Speciment 230mm
Max depth of speciments 135mm
Power Supply AC220V± 5% 50~60Hz.
|
Brinell Scale |
HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
|
Testing Force |
62.5kgf(612.9N), 100kgf (980.7N), 125kgf 1226N), 187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N), 750kgf (7355N), 1000kgf (9807N), 1500kgf (14710N), 3000kgf (29420N) |
|
Min Measuring Unit |
0.005mm |
|
Magnification of Microscope |
20X |
|
Dutation Time |
5~60 sec |
|
Overall Dimension |
550× 210× 750mm(L× W× H) |
|
Net Weight |
125kg |
|
Max Height of Speciment |
230mm |
|
Max depth of speciments |
135mm |
|
Power Supply |
AC220V± 5%, 50~60Hz |
|
Carried Standard |
GB/T231(1.2) Chinese Standard |
|
Standard Accessories |
A set of Measuring Microscope, Diameter: 2.5, 5 and 10mm Hard Alloy Ball Indenters, 3 pcs Standard Hardness Blocks, Large Testing Table, Medium Testing Table, " V" -shaped Testing Table, Power Cable |
Mitech is a manufacturer specializes in Non-Destructive Testing (NDT) instruments. Located in Beijing, Mitech has a professional engineer team devoted in R&D and manufacturing advanced high technical instrument; Its main products are ultrasonic digital flaw detectors, portable metal hardness testers, handle ultrasonic thickness gauges, and coat thickness gauges etc.
Until now, Mitech has distributors dispersed in major cities of China and offers excellent after-sale service. Mitech's instruments are widely used in domestic generating industry, petroleum and chemical industry, pressure vessel manufacturing industry and so on, for providing quality control procedure; Customers are satisfied with the high-quality, good reliability and its prompt after-sale services.
Mitech's mission is to provide customers with the best products and services, make contributions to the development of our world, the company is active in communicating with our distributors and customers both present and potential, main conversions and exhibitions of non-destructive testing are good chances for people to know more about Mitech and its products. Mitech welcomes to join hands with more friends.
