Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

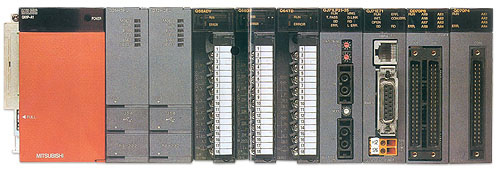

Mitsubishi Q series Analog Module Q68ADV
D/A transform module: 8 channels, voltage input.
-[CPU - Q MODE]
Q00JCPU CPU, PROGRAM: 8K STEPS
Q00CPU CPU, PROGRAM: 8K STEPS
Q01CPU CPU, PROGRAM: 14K STEPS
Q02CPU CPU, PROGRAM: 28K STEPS
Q02HCPU CPU, PROGRAM: 28K STEPS, HIGH SPEED
Q06HCPU CPU, PROGRAM: 60K STEPS, HIGH SPEED
Q12HCPU CPU, PROGRAM: 124K STEPS, HIGH SPEED
Q25HCPU CPU, PROGRAM: 252K STEPS, HIGH SPEED
-[CPU - PROCESS CPU MODULE]
Q12PHCPU CPU, PROGRAM: 124K STEPS, PROCESS CPU
Q25PHCPU CPU, PROGRAM: 252K STEPS, PROCESS CPU
-[BASE UNIT, EXTENSION UNITS]
Q33B POWER SUPPLY + CPU + 3 SLOTS FOR Q SERIES I/O, CE/UL/cUL
Q35B POWER SUPPLY + CPU + 5 SLOTS FOR Q SERIES I/O, CE/UL/cUL
Q38B POWER SUPPLY + CPU + 8 SLOTS FOR Q SERIES I/O, CE/UL/cUL
Q312B POWER SUPPLY + CPU + 12 SLOTS FOR Q SERIES I/O, CE/UL/cUL
Q63B POWER SUPPLY + 3 I/O SLOTS, FOR Q SERIES MODULE, CE/UL/cUL
Q65B POWER SUPPLY + 5 I/O SLOTS, FOR Q SERIES MODULE, CE/UL/cUL
Q68B POWER SUPPLY + 8 I/O SLOTS, FOR Q SERIES MODULE, CE/UL/cUL
Q612B POWER SUPPLY + 12 I/O SLOTS, FOR Q SERIES MODULE, CE/UL/cUL
Q55B 5 I/O SLOTS, FOR Q SERIES MODULE (NO NEED POWER SUPPLY)
-[POWER SUPPLY]
Q61P-A1 100-120VAC INPUT/5VDC 6A OUTPUT, CE/UL/cUL
Q61P-A2 200-240VAC INPUT/5VDC 6A OUTPUT, CE/UL/cUL
Q62P 100-240VAC INPUT/5VDC 3A, 24VDC/0.6A OUTPUT
Q63P 24VDC INPUT/5VDC 6A OUTPUT
Q64P 100-120/200-240VAC INPUT/5VDC 8.5A OUTPUT
-[BATTERY]
Q6BAT REPLACEMENT BATTERY FOR MEMORY BACKUP
-[ADAPTOR]
Q6DIN1 DIN RAIL MOUNTING ADAPTER, FOR Q38B/Q312B/Q68B/Q612B
Q6DIN2 DIN RAIL MOUNTING ADAPTER, FOR Q35B/Q65B
Q6DIN3 DIN RAIL MOUNTING ADAPTER, FOR Q33B/Q63B
-[INPUT UNIT]
QX10 100-120VAC/7-8mA, 16PT
QX28 240VAC, 8PT
QX40 240VAC/4mA, POSITIVE COMMON INPUT, 16PT
QX40-S1 24VDC, POSITIVE COMMON INPUT, 16PT (HIGH SPEED)
QX41 24VDC, POSITIVE COMMON INPUT, 32PT
QX41-S1 24VDC, POSITIVE COMMON HIGH-SPEED INPUT, 32PT
QX42 24VDC, POSITIVE COMMON INPUT, 64PT
QX42-S1 24VDC, POSITIVE COMMON HIGH-SPEED INPUT, 64PT
QX70 5-12VDC INPUT, POSITIVE AND NEGATIVE COMMON INPUT, 16PT
QX71 5-12VDC INPUT, POSITIVE AND NEGATIVE COMMON INPUT, 32PT
QX72 5-12VDC INPUT, POSITIVE AND NEGATIVE COMMON INPUT, 64PT
QX80 24VDC/4mA. NEGATIVE COMMON INPUT, 16PT, TERMINAL BLOCK
QX81 24VDC/4mA. NEGATIVE COMMON INPUT, 16PT, CONNECTOR
-[OUTPUT UNIT]
QY10 240VAC/24VAC, 16PT, WITHOUT FUSE
QY18A 240VAC/24VAC, 2A, 8 INDEPENDENT OUTPUT
QY22 240VAC/0.6A, 16PT, WITHOUT FUSE
QY40P 12/24VDC, 16PT, WITH SHORT-CIRCUIT PROTECTION
QY41P 12/24VDC, 32PT, WITH SHORT-CIRCUIT PROTECTION
QY42P 12/24VDC, 64PT, WITH SHORT-CIRCUIT PROTECTION
QY70 5/12VDC, 16PT, WITHOUT FUSE
QY71 5/12VDC, 32PT, WITHOUT FUSE
QY80 12/24VDC, 16PT, WITHOUT FUSE
QY81P 12/24VDC, 32PT, WITH SHORT-CIRCUIT PROTECTION
-[INTERRUPT UNIT]
QI60 16PT, RESPONSE TIME: 0FF-ON 0.2ms, ON-OFF 0.3ms OR SMALLER
-[ANALOG UNIT]
Q64AD 4 CHANNELS, A/D CONVERSION: VOLTAGE/CURRENT INPUT
Q68ADV 8 CHANNELS, A/D CONVERSION: VOLTAGE INPUT
Q68ADI 8 CHANNELS, A/D CONVERSION: CURRENT INPUT
Q62DA 2 CHANNELS, D/A CONVERSION: VOLTAGE/CURRENT OUTPUT
Q64DA 4 CHANNELS, D/A CONVERSION: VOLTAGE/CURRENT OUTPUT
Q68DAV 8 CHANNELS, D/A CONVERSION: VOLTAGE OUTPUT
Q68DAI 8 CHANNELS, D/A CONVERSION: CURRENT OUTPUT
-[CHANNEL-ISOLATED ANALOG UNIT]
Q64AD-GH 4 CHANNELS, A/D CONVERSION: VOLTAGE/CURRENT INPIT
Q62AD-DGH 2 CHANNELS, A/D CONVERSION, SIGNAL CONDITIONING FUNCTION
Q62DA-FG 2 CHANNELS, D/A CONVERSION: V/I OUTPUT WITH MONITOR
-[TEMPERATURE INPUT/CONTROL UNIT]
Q64RD 4 CHANNELS, PLATINUM RESIST. THERMO. INPUT
Q64TCTT THERMO-COUPLE INPUT - TRANS. OUTPUT
Q64TCTTBW THERMO-COUPLE INPUT WITH SHORT CIRCUIT DETECTION
Q64TCRT PLATINUM RESIST. THERMO. INPUT
Q64TCRTBW PLAT. RESIST. THERMO. INPUT WITH SHORT CIRCUIT DETECTION
-[NEYWORK AND COMMUNICATION UNIT]
QJ71E71-B2
QJ71E71-B5
QJ71E71-100
QJ71LP21-25
QJ71LP21G
QJ71LP21GE
QJ72LP25-25
QJ72LP25G
QJ72LP25GE
QJ71BR11
QJ72BR15
QJ61BT11
QJ71C24
QJ71C24-R2
We sell Japanese factory automation products such as PLCs, Servo Motors, Inverters, Motors, Touch screens, Pneumatics, PLCs, and many other types of automation parts.
We keep up our stock parts at our warehouse in shenzhen office. We have large stock and data base, also many cooperative companies, we hope to serve our customers with competitive prices and good services
Our products main contain Mitsubishi brand Programmable Logic Controllers (PLC), Inverters, Servo, Graphic Operation Terminals (GOT), etc.
We are also supply Factory Automation Parts, which included of PLC Inverters, Omron PLC, HITECH, WINVIEW, PRO-face touch screen, Yaskawa Inverter and Delta Inverter etc.
We providing outsourced electrical supports including engineering items, control tank processing, automation engineering solution, etc.
We hope you will find the information you are looking for. If you have any more interests.
And definitely you should be received our reply mail within 24 hrs as our promises to you.
