Product Specifications
| Prod Model: |
DP-420 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12 Months |
| Driven Type: |
Electric |
| Automatic Grade: |
Automatic |
| Application: |
Film Material |
| Membrane Material: |
Light Membrane |
| Classification: |
Cold Laminating Machine |
Product Description

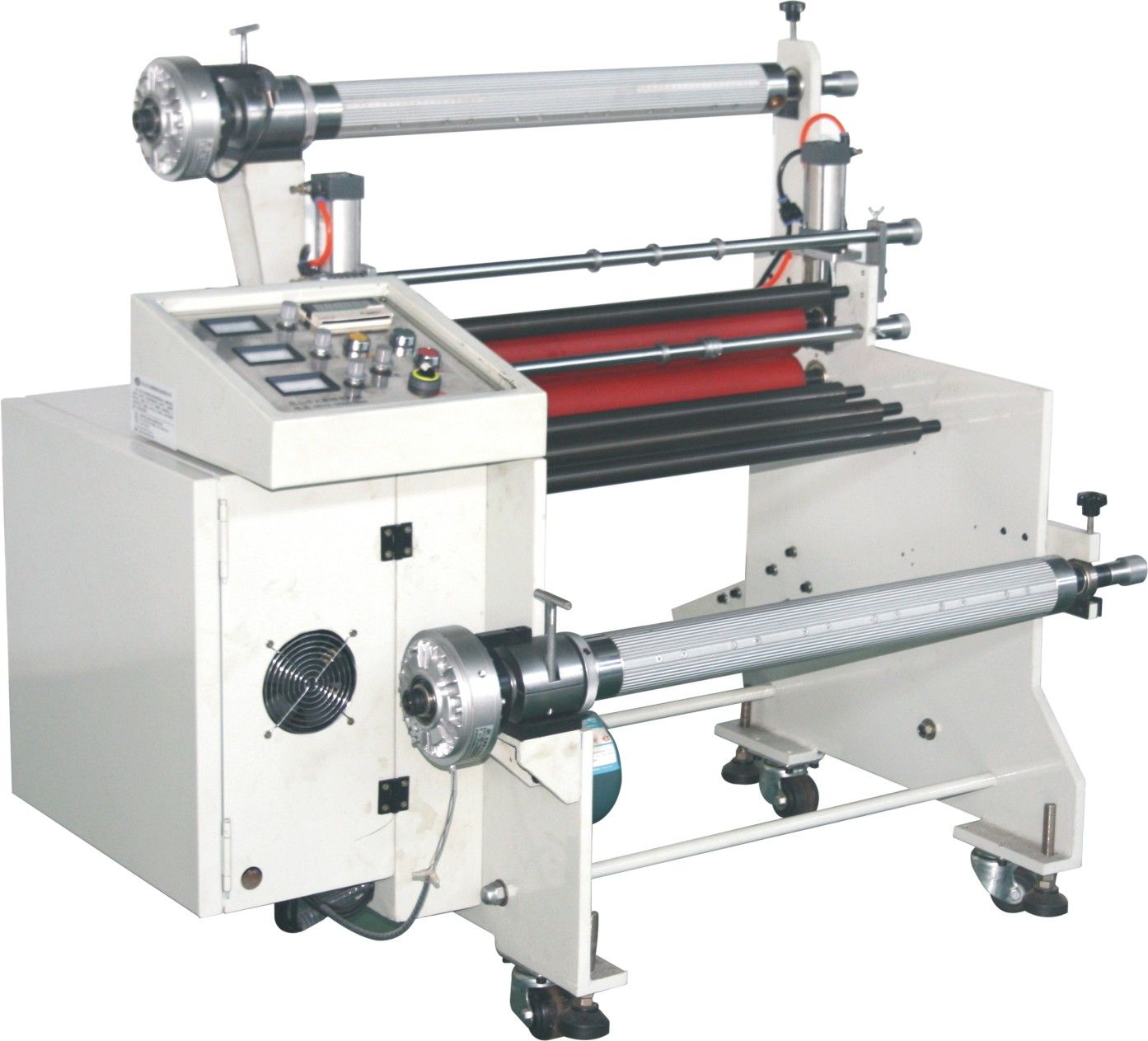

DP-420 Mobile Phone Sticker Layers Laminating Machine
Funcional characteristics:
Electric laminating ue and machine complex for the sticking of material without base glue and other materials.
DP-420 Mobile Phone Sticker Layers Laminating Machine
Magnetic powder brake controlling over the unreeling tension, frequency-change stepless speed regulation,
And magnetic powder brake's constant torque controlling over the winding tension, e.
And therefore, it is fast in lamination speed and smiple to operate, hence a necessary equipment matching the label printing machine
DP-420 Mobile Phone Sticker Layers Laminating Machine
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,
Copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries of Printing, Packing, Electronics, Leather and Clothes making, Plastics, etc.
Model: DP-420 Laminating Machine
Max Feeding Width ( mm ): 420
Main Engineer Power ( KW ): 1.5KW
Speed (m/min ): 60
Winding diameter ( mm ): 500
Precision ( mm ): ± 0.30
Voltage: 220V
|
Model |
DP-650 Laminating Machine |
DP-1300 Laminating Machine |
DP-1600 Laminating Machine |
|
Max Feeding Width ( mm ) |
650 |
1300 |
1600 |
|
Main Engineer Power ( KW ) |
3KW |
3KW |
3KW |
|
Speed (m/min ) |
60 |
60 |
60 |
|
Size ( mm ) |
1400*1200*1300 |
1650*1450*1300 |
1650*1450*1300 |
|
Weight (kg) |
800 |
1500 |
1800 |
|
Feeding diameter ( mm ) |
600 |
600 |
800 |
|
Rewinding diameter ( mm ) |
450 |
450 |
450 |
|
Precision ( mm ) |
± 0.10 |
± 0.10 |
± 0.10 |
|
Power |
220V 50HZ |
380V 50HZ |
380V 50HZ |
Kunshan Dapeng Precision Machinery Co., Ltd is specialized in manufacturing high precision die cutting machine, sheet cutter, slitting machine, laminating machine, belt cutting machine and related machinery equipment. Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials, insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
We pride ourselves in our quality manufacturing processes and professional designs. With strong technology, international quality control system and perfect after-service, our products enjoy a Good reputation at domestic and international market. We own professional technical staffs, engineers, sales and after-service employees to be a Young and high caliber team.
At "Dapeng", we are confident that our hands on approach and direct involvement with out manufacturing assures our customers' Will get the best quality products available on the market today.
