1). Low cost, 2). High quality with 12 months guarantee, 3). Complete equipment include diesel engine, water pump, mobile wheels, hopper, sluice box with mat, 4). Produced by China biggest gravity mining machine factory.Mobile Screen replaceable trommel screen mine processing machineryThis machine is designed for processing alluvial gold mine, river placer sand gold, diamond etc.

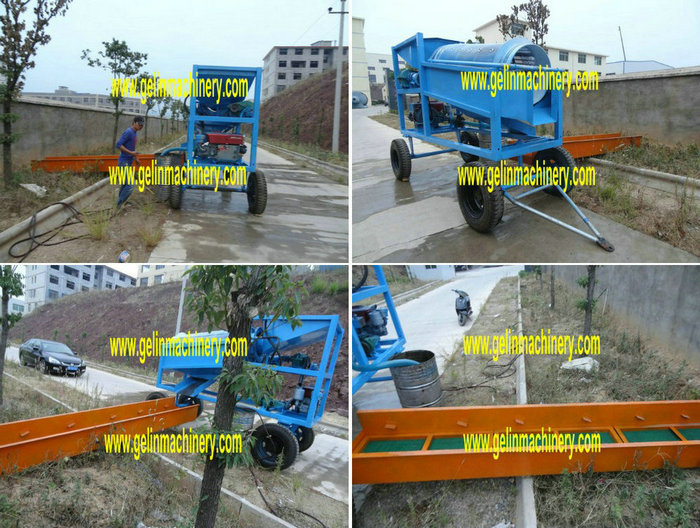

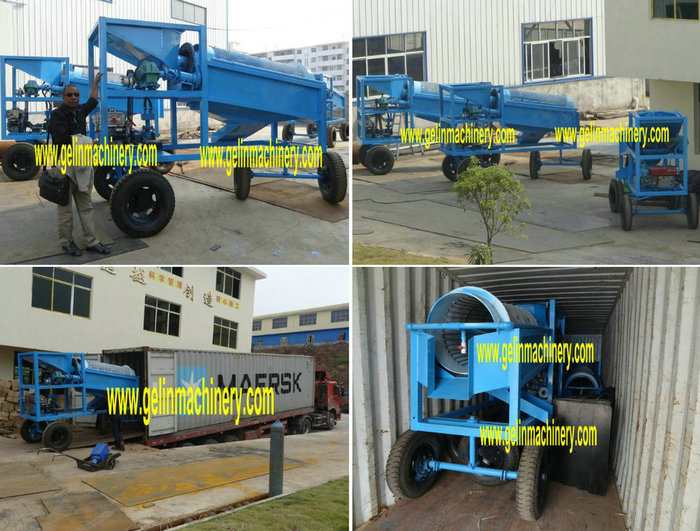

Portable / Mobile trommel screen with wheels
It is suit to small scale / large mine processing. It is portable and mobile easy to move to other place from one place when finish the job. This mineral washing machine is popular in African, Asian, South American due to its easy to move and easy to operate, moreover, it is low cost, miner just cost a little budget to buy one.
Many miner came to our factory to buy it for their alluvial gold, sand mineral.
Includes water pump, water pipe, diesel engine / electric motor, wheel, can be easy movable,
Welcome to visit our factory in your free time!
|
Model |
Capacity (t/h) |
Wheel
quantity |
Water pump
& water pipe |
Diesel engine
/ Electric motor |
Drum
diameter |
Drum length |
Screen size(mm) |
Weight
(kgs) |
|
GL510 |
5-10 |
4 |
include |
Diesel/Electric |
500 mm |
1300 mm |
<3-20 |
800 |
|
GL615 |
10-20 |
4 |
include |
Diesel/Electric |
600 mm |
1500 mm |
<3-20 |
1000 |
|
GL715 |
20-30 |
4 |
include |
Diesel/Electric |
700 mm |
1500 mm |
<3-20 |
1100 |
|
GL815 |
30-40 |
4 |
include |
Diesel/Electric |
800 mm |
1500 mm |
<3-20 |
1200 |
|
GL1020 |
40-100 |
4 |
include |
Diesel/Electric |
1000 mm |
2000 mm |
<3-20 |
2300 |
|
GL1225 |
100-160 |
4 |
include |
diesel engine |
1200 mm |
2500 mm |
<3-20 |
3000 |
|
GL1530 |
150-200 |
4-6 |
include |
Diesel/Electric |
1500 mm |
3000 mm |
<3-20 |
4000 |
|
GL1545 |
200-300 |
4-6 |
include |
Diesel/Electric |
1500 mm |
4500 mm |
<3-20 |
4500 |
|
GL1848 |
300-450 |
4-6 |
include |
Diesel/Electric |
1800 mm |
4800 mm |
<3-20 |
6000 |
|
GL2055 |
400-600 |
4-6 |
include |
Diesel/Electric |
2000 mm |
5500 mm |
<3-20 |
8000 |
Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in the Industrial Zone of Shicheng County, Jiangxi Province.
Our distinctive products include Shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment etc. Our machines are popular in separating gold, copper, manganese, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, etc.
Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India, the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. We have won high reputations from all of our clients for our machines and services.
Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers. If you are in need of detailed information, please inform us. We will provide you with total solutions according to your specific requirements in time.
As a leading provider of mining machines in China, we will continue to do our best to offer customers the best quality products and services at competitive prices, to meet variable challenges and keep advantageous.
