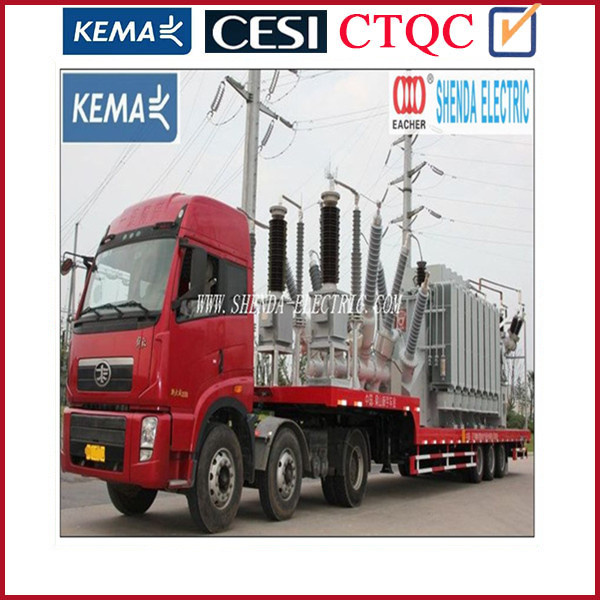

Product Specifications
| Prod Model: |
CZBT-66/20-20000, CZBT-132/33-30000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Power |
| Coil Number: |
Other |
| Packaging Details: |
Sea Worthy Packing |
| Coil Structure: |
Other |
| Output Type: |
Triple |
| Output Power: |
>500W |
| Input Voltage: |
110-220V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
>2 Years |
| Power Supplying System: |
Level 2 Power Distribution Equipment |
| Certification: |
CSA |
Product Description
Technologies:
Design: Relative developed software are adopted in Electromagnetic calculations, strength analysis, leakage magnetic distribution, its electro-dynamic force and electrical insulation.
Manufacture:
Core: Effectively upgrade transformer's no-load performance by below methods:
1) The core is made of high-permeable grain-orientated top quality cold-rolled silicon sheet and the material is cut with advanced Germany Geoge GmbH automatic shear line with the cut burs controlled within 0.02mm.
2) The silicon sheet fabrication adopts "no-upper yoke lapped' technology and all lapped joints of the silicon sheet are 45 full-miters. The laminated core sheets are integrally pressed and adhered with epoxy resin to make the three leg two-yoke core a strong and flat integral one with good verticality precision, this effectively improves no-load performance and reduces noises.
3) Bracing plates are used as support between coil leg and inner coil. The iron yoke is tied with epoxy resin-impregnated glass fiber band, and the lower section of oil tank is tightened with counter-pressure bolts. The upper iron and the upper section of oil tank are fixed at three locations. Hence the body inside the oil tank can withstand the vibration during transportation without any shift.
Winding:
1) The high-voltage (HV) coil adopts an interleaved-continuous structure to improve the voltage characteristics under impact voltage and make voltage evenly distributed. All stays and pads are chamfered to keep highly reliable insulation.
2) In the transformer winding there is a zigzag oil guide structure so as to fully cool all areas inside the winding, lower the temperature rise of the winding and the hot points of the winding and prolong the service life of insulation. The HV and MV regulation system are independently provided with voltage-regulating winding to balance the ampere turn of each winding, effectively lower the axial electrodynamic force generated at short-circuit of transformer and improve abrupt short-circuit withstanding capacity.
3) The winding adopts radial "0" margin designed, between the core and the paper sleeve of LV winding, and between the LV, HV, voltage-regulating windings, as well as before insertion of stays and shroud plate they are fully dried and tightly matched to ensure extremely good compactness and concentricity of the entire winding.
Oil tank and accessories
1) The tank wall adopts wide steel sheet, which will be folded into corrugated structure without splicing, in this way welds are decreased and mechanical strength is enhanced, meanwhile, the corrugated wall has diverging effect, and thus plays a role in decrease of noise. The routing troughs and control cabinets of the secondary circuit are all made of stainless steel, so the entire transformer has a simple and good looking.
2) All sealing surface use quality sealing material and are precision-machined.
3) On the edge of the tank there are double sealing grooves, and the outer sealing material is used to shade the atmosphere and ultra-ray to protect the inner sealing being damaged, thus at utmost prolonging service life and enhancing reliability of the seal.
Typical projects
Features:
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability.
6) Operation reliability
7) Easy maintenance
8) Pretty outline and compact structure
9) 100% guaranteed no leakage
Brief specification
1) Voltage class: 6~110 KV
2) Capacity: 630 kVA to 120, 000 kVA
3) Short-circuit impedance: 4.5~21%
4)Losses: No-load losses is fully comply with IEC standard requirements
| Type | Rated Power (kVA) | Rated Voltage (Line Side) V | Rated Voltage (Valve Side) V | Connection Symbol | Active Part Weight (kg) | Oil Weight (kg) | Total Weight (kg) | Overall Dimension (L*W*H) (mm) |
| ZSSP-800/10 | 800 | 10000 | 400 | Dyn11 | 1580 | 660 | 3240 | 2160*1625*1855 |
| ZSSP-2000/35 | 2000 | 35000 | 400 | Yyn0 | 3320 | 1280 | 5735 | 2600*1260*2740 |
| ZSSP-4000/35 | 4000 | 35000 | 950 | Dd0y11 | 5410 | 2040 | 9540 | 2570*1745*2720 |
| ZSSP-6300/35 | 6300 | 35000 | 1000 | D( ±7.5 °)dyn | 8600 | 4860 | 18260 | 3340*1875*3370 |
| ZSSP-7000/35 | 7000 | 35000 | 950 | Dd0y11 | 8570 | 3390 | 14700 | 3185*985*3475 |
| ZSSP-8000/22 | 8000 | 22000 | 950 | Dd0y11 | 8640 | 3340 | 14710 | 3210*1905*3375 |
| ZSSP-8000/35 | 8000 | 35000 | 950 | Dd0y11 | 9170 | 3590 | 15520 | 3340*1870*3490 |
| ZSSP-9000/35 | 9000 | 35000 | 950 | Dd0y11 | 9920 | 4070 | 15740 | 3240*1915*3720 |
| ZSSP-10000/35 | 10000 | 35000 | 1000 | D( ±7.5 °)dyn | 11090 | 4400 | 18850 | 3410*1915*3845 |
Shenda International Engineering Co., Ltd. is a professional player in transformer industry, which established in Oct. 2000, located in Zhejiang province of China, holds two production bases and seven sales companies. We always focus on the R&D, have been appointed as a manufacturer of transformers at 330KV levels and below by National Electric Power Corp and Mechanical Industry Union. "EACHER" has been awarded "Famous Brand of Zhejiang Province".
Our annual total production capacity is about 18, 000, 000 kVA, our factory covers an area of 370, 000 square meters and a building area of 100, 000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 330kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have imported many advanced production and testing facilities from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1, 500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
There are type test report of CESI Short Circuit Test Report 100MVA/220KV and KEMA Test Report-50MVA/69kV in our company
