Product Specifications
| Prod Model: |
GT1530 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| China Supplier: |
Gear-Drive |
| Dealing Capacity: |
250 |
| Roller Diameter: |
1500 mm |
| Roller Length: |
3000 mm |
| Type: |
Bucket Sand Washer |
| Motor Type: |
AC Motor |
| Wheel Bucket Diameter: |
3000mm |
Product Description

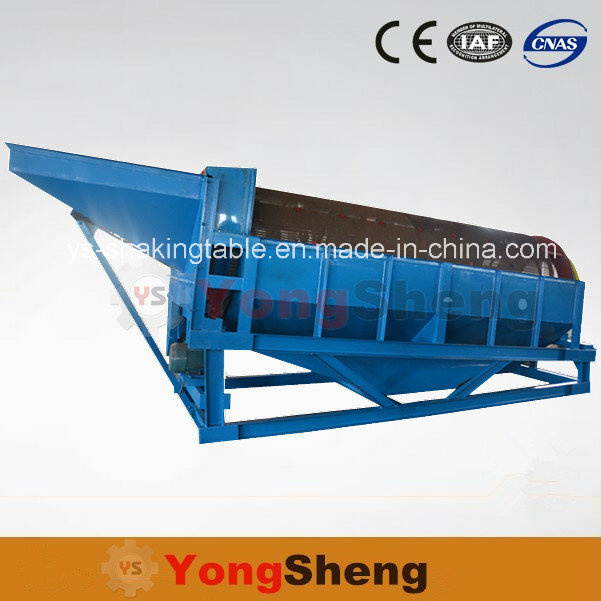

Mobile Trommel Screen for Processing Bulk Materials
Material feeds into the drum, is lifted up by the rotation as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
This type of machine had applied in sand washing and ore particle classification. Now many customers inclined to purchase this machine as an alternation of axel-drive trommel. Gear-drive trommel can provide bigger force and faster washing speed&efficient sand washing experience.
Description:
There are two types of trommel screen axle-drive and gear-drive trommel. As a new technology trommel , gear-drive trommel has a greater rotation force that makes it can wash off clay and sand power effectively. Most buyers are inclined to buy gear-drive trommel.
The Trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase
product quality, while allowing rapid and large volume processing. Our Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
Key features:
1. Anti-jam design.
2. Gear-drive mechanism.
3. Customized sieve size design.
4. Wear-resisting&repleacable sieve.
5. Double sieve ideal material classification.
6. Powerful motor with low power consumption.
7. High dealing capacity&fluent material washing.
Models¶meters:
| Models&Main Technical Parameters |
| Model | Capacity(t/h) | Power(Kw) | Roller Diameter(mm) | Roller Length(mm) | Screen grid size(mm) | Dimension(mm) | Weight(Kg) |
| GT1015 | 50 | 4.0 | 1000 | 1500 | <3-10 | 3000×1400×2145 | 2200 |
| GT1020 | 100 | 5.5 | 1000 | 2000 | 3460×1400×2145 | 2800 |
| GT1225 | 160 | 7.5 | 1200 | 2500 | 4146×1600×2680 | 4200 |
| GT1530 | 250 | 11 | 1500 | 3000 | 4460×1900×3080 | 5100 |
| GT1545 | 350 | 15 | 1500 | 4500 | 5960×1900×3080 | 6000 |
| GT1848 | 450 | 22 | 1800 | 4800 | 6500×2300×400 | 7500 |
| GT2055 | 600 | 30 | 2000 | 5500 | 7500×2500×4000 | 8600 |
Trommel Screen Structure&Working Principle:
The trommel screen mainly consist of motor, reducer, drum units, racks, ring of clamp,black block line, discharge hole, feed port, polyproplyene board, screen body etc. inclination of drum equipment, motor is connected by reducer&the drum unit, the drive drum rotates as gear turns.
Structure:
Application:
Our trommel washer solves the screen jam problem occurring in the process of screening the wet materials when using the circular vibrating screen and straight line screen, improving output and reliability of the screen system. Our products have won good appraises from many users.The machine is passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
Rolling screen developed by our company are special screening equipment used in the electric plant, coking plant, building material, metallurgy, chemical, mine and other industries. With improved output and reliability of the screen system, our products have won good appraises from many oversea users.
