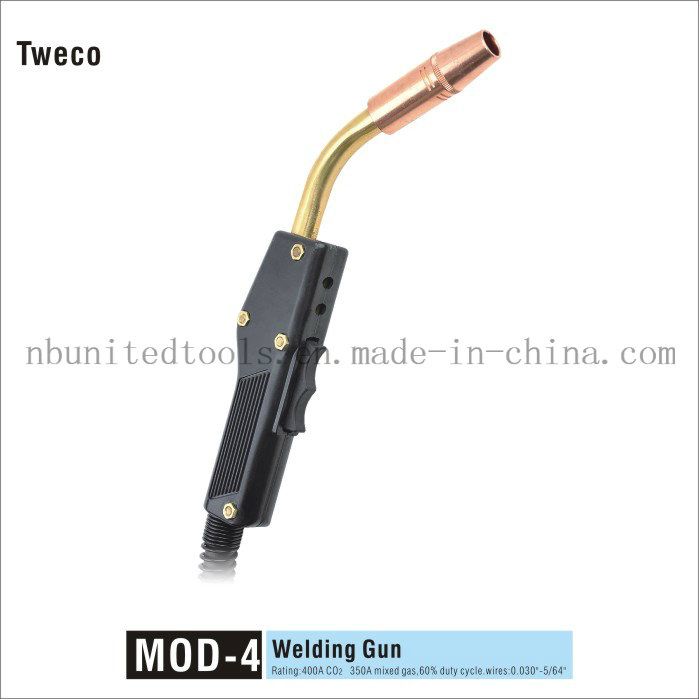

Product Description:MOD-4 Welding Gun
Rating:400A CO2 350A mixed gas,60% duty cycke. wires:0.030"-5/64"
| Part No. | | |
| MOD4-3 | MOD4-4 | MOD4-5 |
| 3m | 4m | 5m |
| | Welding Gun c/w Euro Fitting | |
| | Welding Gun c/w Tweco Fitting | |
| | Welding Gun c/w Lincoin Fitting | |
| | Welding Gun c/w Miller Fitting | |
| Nozzles | Part No. | |
| A 24A50 | 2W003-0372 | Nozzle Adjustable |
| 24A62 | 2W003-0373 | Nozzle Adjustable |
| 24A75 | 2W003-0374 | Nozzle Adjustable |
| 24AH50 | 2W003-0375 | Nozzle Duty |
| 24AH62 | 2W003-0376 | Nozzle Duty |
| 24AH75 | 2W003-0377 | Nozzle Duty |
| B 23-50 | 2W003-0378 | Nozzle Self Insulated |
| 23-62 | 2W003-0379 | Nozzle Self Insulated |
| 23-75 | 2W003-0380 | Nozzle Self Insulated |
| C 24CT50S | 2W003-0381 | Nozzle Fixed Coarse Thread |
| 24CT62S | 2W003-0382 | Nozzle Fixed Coarse Thread |
| 24CT75S | 2W003-0383 | Nozzle Fixed Coarse Thread |
| Contact Tips | Part No. | |
| D 14-35 | 2W003-0384 | Contact Tip 0.023"/0.9mm Ecu |
| 14-45 | 2W003-0385 | Contact Tip 0.045"/1.2mm Ecu |
| 14-52 | 2W003-0386 | Contact Tip 0.052"/1.3mm Ecu |
| 14-116 | 2W003-0387 | Contact Tip 1/16"/1.6mm Ecu |
| 14H-35 | 2W003-0388 | Contact Tip 0.035"/0.9mm Ecu HD |
| 14H-40 | 2W003-0389 | Contact Tip 0.040"/1.0mm Ecu HD |
| 14H-45 | 2W003-0390 | Contact Tip 0.045"/1.2mm Ecu HD |
| 14H-52 | 2W003-0391 | Contact Tip 0.052"/1.3mm Ecu HD
|
| 14H-116 | 2W003-0392 | Contact Tip 1/16"/1.6mm Ecu HD |
| 14H-564 | 2W003-0393 | Contact Tip 5/64"/2.0mm Ecu HD |
| Compontents | Part No. | |
| 1 | 2W003-0394 | Adjustable Nozzle Insulator |
| 2 | 2W003-0395 | Nozzle Insulator Coarse Thread |
| 3 | 2W003-0396 | Gas Diffuser |
| 4 | 2W003-0397 | Jacketed Conductor Tube 45° |
| | 2W003-0398 | Jacketed Conductor Tube 60° |
| | 2W003-0399 | Conductor Tube 45° |
| | 2W003-0400 | Conductor Tube 60° |
| 5 | 2W003-0401 | Gas Nipple |
| 6 | 2W003-0402 | O-Ring 88x1.5 |
| 7 | 2W003-0403 | Handle |
| 8 | 2W003-0404 | Hanger Hook |
| 9 | 2W003-0405 | Switch Omron |
| 10 | 2W003-0406 | Trigger |
| 11 | 2W003-0407 | Trigger Spring |
| 12 | 2W003-0408 | Front Spring Cable Support |
| 13 | 2W003-0409 | Cable Assembly 3m |
| | 2W003-0410 | Cable Assembly 4m |
| | 2W003-0411 | Cable Assembly 5m |
| 14 | 2W003-0412 | Back Spring Cabel Support |
| 15 | 2W003-0413 | Gun Plug Housing |
| 16 | 2W003-0414 | Screw M4x6 |
| 17 | 2W003-0415 | Gun Plug Nut |
| 18 | 2W003-0416 | Tweco Euro Gun Plug |
| 19 | 2W003-0417 | O-Ring 4x1 |
| 20 | 2W003-0418 | 0-Ring 4x1.8 |
| 21 | 2W003-0419 | Nut M11x1 |
| Liners | Part No. | |
| G 44-3545-15 | 2W003-0420 | Stee Liner 0.035"-0.045/0.9-1.2mmx4.5m |
| 44-116-15 | 2W003-0421 | Stee Liner 1/16"/1.6mmx4.5m |
| 44-564-15 | 2W003-0422 | Stee Liner 5/54"/5.0mmx4.5m |
| 44T-3545-15 | 2W003-0423 | Teflon Liner 0.035"-0.045/0.9-1.2mmx4.5m |
| 44T-116-15 | 2W003-0424 | Teflon Liner 1/16"/1.6mmx4.5m |
