Model Jb04-0.5 Jb04-1 Jb04-2 Jb04-3 Table Press Machine
Price: |
US $ 400-1000/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
Prod Model: |
JB04-0.5 JB04-1 JB04-2 JB04-3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
Electrial |
Capacity: |
0.5ton 1ton 2 Ton 3 Ton |
Automatic Grade: |
Semiautomatic |
Power Source: |
Electric |
Precision: |
Precision |
Type: |
Table Press |
Punch Shape: |
Table Press |
Controlling Mode: |
Electrical |
Product Description
Main specification for table press machine_0.5ton 1ton 2ton 3tonSpecification | JB04-0.5 | JB04-1 | JB04-2 | JB04-3 |
Max.nominal pressure | 5KN | 10KN | 20KN | 30KN |
Stoke of slide | 28mm(2-3/5") | 40mm(1-4/7") | 48mm(1-8/9") | 48mm(1-8/9") |
Stokes per minute | 250mm(10") | 250mm(10") | 245mm(9-5/8") | 245mm(9-5/8") |
Max.shut height | 118mm(4-5/8") | 150mm(5-8/9") | 160mm(6-2/7") | 230mm(9") |
Bed dimension | 250×250mm | 270×270mm | 275×275mm | 380×380mm |
Motor power | 0.25kw | 0.45kw | 0.55kw | 0.75kw |
Dimension | 460×300×460mm | 480×320×540mm | 530×490×720mm | 640×530×830mm |
Weight | 66kgs | 89kgs | 198kgs | 238kgs |

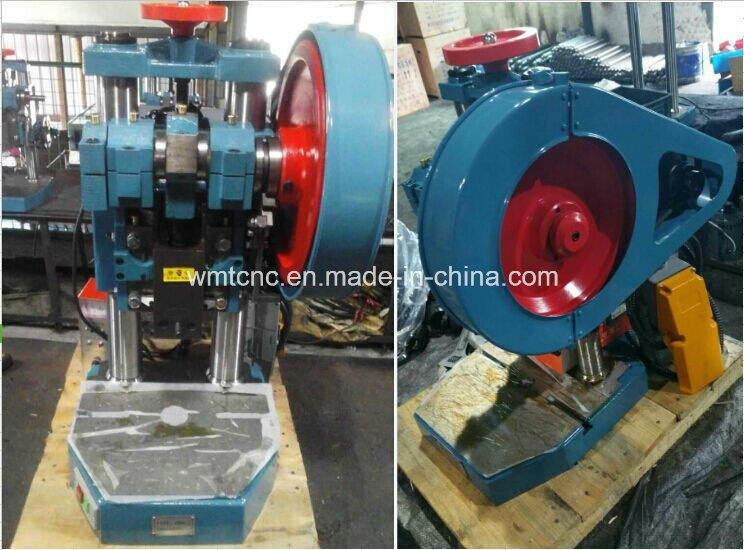

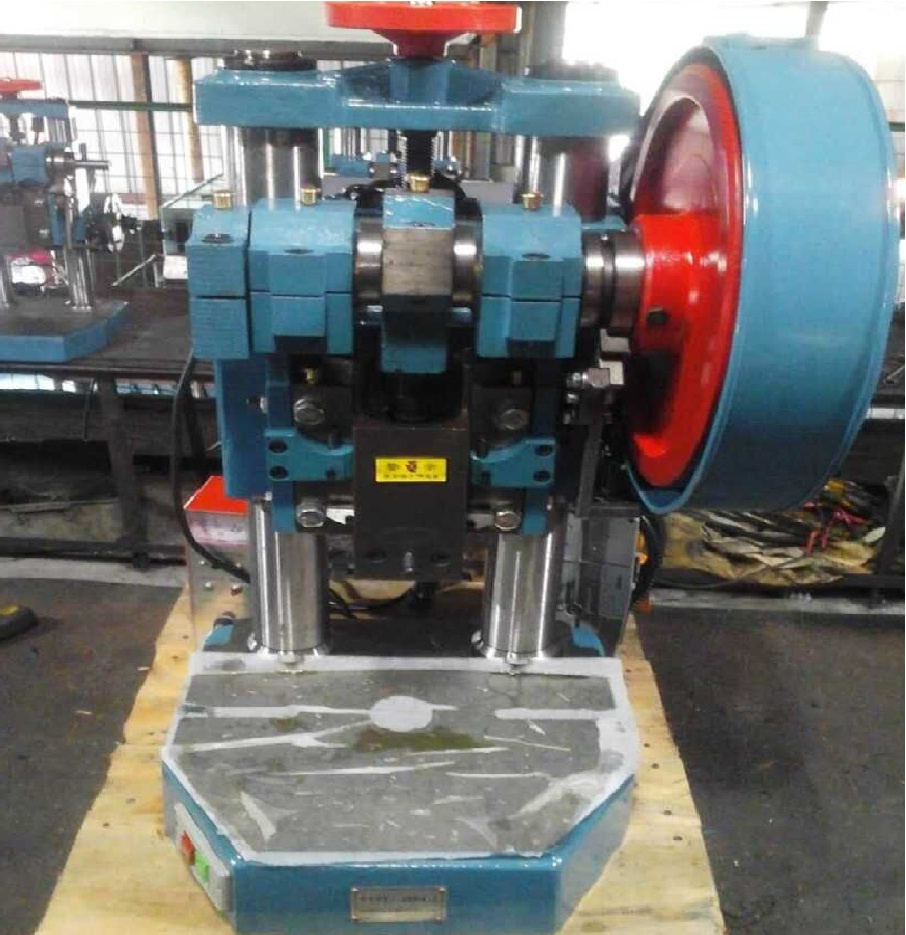

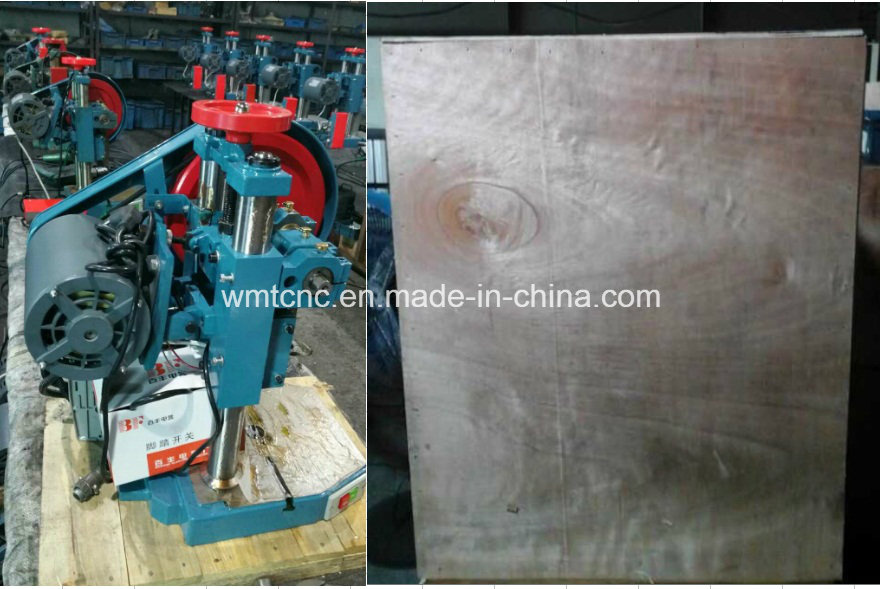

Machine details and packing
Welcome to contact with us!Tel: 0086 566 2091958
Fax: 0086 566 2091968
We are engaged in the business line of various machine tools, ranging from common machines to CNC ones. Our main products are lathes, milling and drilling machines, grinding machines and forming machines CNC machining centers and so on. Installed and tested by professional techniques, the machines are of high quality and able to meet up to international standard. We have achieved marvelous success during the past few years, winning praise from our clients all over the world. The machines that we produce enjoy wide popularity across the world. Our facility and equipment along with a focus on education keep us on the top of this field. In order to keep pace with international standard, we spare no effort to develop new products. Our company mission is to create a serious, trusted and everlasting partnership with all our clients.
Sincerely, we are looking forward to entering into business relation with you in the near future.
