Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Electromagnetic Relay |
Product Description

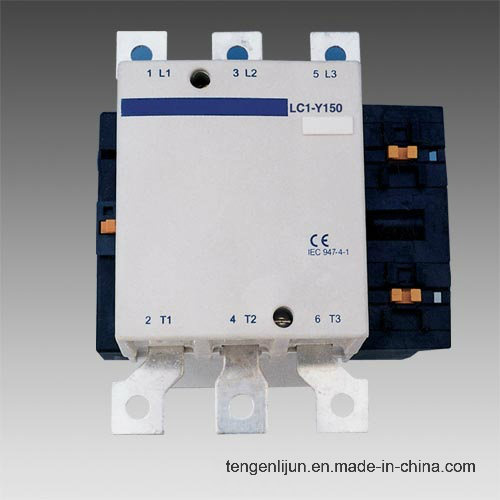

ApplicationLC1-Y Energy Saving AC contactor is applicable in the circuits up to the rated voltage 1000V, AC 50Hz or 60Hz, rated current up to 1000A, for long distance switching on and breaking circuit and frequently starting or control AC motor. It can form electromagnetic starter with thermal overload relay or electronic protector. It can also protect overload or open-phase current, and form reversing interlock conversion contactor, power-distribution conversion contactor and star-delta starter.
AdvantagesA. Power saving: 5% of traditional power consuming.
B. Long life: Short arc duration, little contact ablation, contact does not quiver when voltage fluctuates.
C. Reliable: Coil does not burn.
D. No noise.
E. Coil control, no temperature rising.
F. Not influenced by network voltage fluctuation.
| Model | Rated operation
voltage 380V | Rated thermal
current | Three phase electromotor rated power | Suitable
thermal
relay |
AC3
le/A | AC1
lth/A | AC3 380V 50Hz |
| kW | Hp-ch |
| LC1-Y115 | 115 | 200 | 55 | 75 | JR28-200 |
| LC1-Y150 | 150 | 250 | 75 | 100 | JR28-200 |
| LC1-Y185 | 185 | 275 | 90 | 125 | JR28-200 |
| LC1-Y225 | 225 | 315 | 110 | 150 | JR28-630 |
| LC1-Y265 | 265 | 350 | 132 | 180 | JR28-630 |
| LC1-Y330 | 330 | 400 | 160 | 220 | JR28-630 |
| LC1-Y400 | 400 | 500 | 200 | 280 | JR28-630 |
| LC1-Y500 | 500 | 700 | 250 | 335 | JR28-630 |
| LC1-Y630 | 630 | 1000 | 335 | 450 | JR28-630 |
![]()
Tengen group is a diversified industrial corporation engaged in developing, manufacturing and marketing a wide variety of products for the transmission, distribution, control and utilization of electricity as well as industrial automation and system software. It is headquartered in wenzhou, zhejiang province.
Tengen focuses on low and medium voltage electrical appliances and has been a leading Chinese exporter in this industry since 1993. The state ministry of foreign trade and economic cooperation have listed its products as a "foundational export". In 2002, tengen was the 10th largest private company in China as ranked by the national association of industry and commerce.
Tengen offers over 90 series of products with close to 10, 000 different specifications, and has the flexibility and resources to meet customer' S demands in the fast-changing global market. In addition, most of our products have CE and ccee approval, ensuring that our products meet the highest quality and safety standards. Tengen also holds ISO9001 and ISO14000 approval for management, and is an industry leader in research and development, quality control, as well as environmentally-conscious manufacturing.
Nationally, our products have attained numerous awards for quality and customer satisfaction. Internationally, these same qualities have helped tengen to establish long-term business connections with clients in over 100 countries on five different continents.
Tengen is committed to the quality of its products and the satisfaction of its customers. Feel free to browse our website and if there are any further questions, our international business department would be happy to help.
