Product Specifications
| Prod Model: |
HS-2200A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Hongsbelt |
| Item No.: |
Hs-2200A |
| Approved: |
FDA, ISO, EU |
| Pitch: |
19.05mm |
| Open Area: |
-- |
| Rod: |
-- |
| Min. Width: |
400mm |
| Flight: |
No |
| Side Guard: |
No |
| Curve: |
No |
| Type: |
Modular Belt |
| Inside Material: |
POM |
Product Description
Specification:
Pitch:19.05mm Minimum Width:400mm;
Open Area:0% Approved:FDA;EU;ISO
Rod:No Flight:No
Side Guard:No Curve:Yes
Data:
Note
1.Max length of carbon steel chain: 60meters, Max length of stainless steel chain: 45meters.
2.Max speed: 60M/min.
3.The packaging of chain: 3.048M/pc.

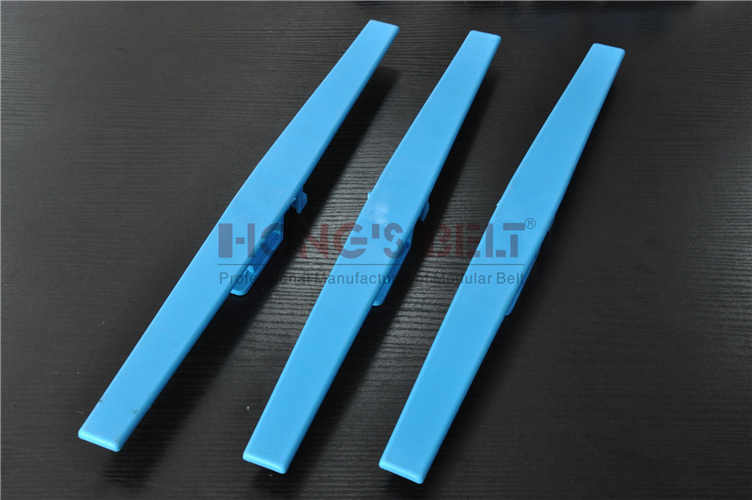

About HS-2200A Spiral Plate Chain
HS-2200A Spiral Plate Chain is in common use with other spiral plate chains in the market, especially for 3/4 inch pitch type, even other brand can choose HS-2200 Spiral Plate Chain as its replacement in maintenance.
Features of HS-2200A Spiral Plate Chain Conveyors
-HONGSBELT is specialized in the production of spiral conveyors, which adopt HS-2200A Spiral Plate Chain, it is a well-designed and good-quality conveying system. Drive chains of it are special grade 3/4 inch side bend chain, and the tensile strength is much bigger than other brand in the market.
-HS-2200A Spiral Plate Chain Conveyors can achieve upward or downward extended conveying in the least space, and save lots of space, so meet the demands of automatic warehouse system, fluctuation floor continuous conveying, temporary storage, cooling hysteresis etc. well.
-HS-2200A Spiral Plate Chain Conveyors adopt slim design, the total weight is reduced, but still have big load capacity, the load efficiency will not be affected for the light weight of conveyor. The simplified structure is easy to lubricate and maintain. (For related design parameters, please consult our customer service department)
Size Description of HS-2200A Spiral Plate Chain Conveyors
The standard width of HS-2200A Spiral Plate Chain Conveyors is 420mm (effective width is 400mm) Please confirm the size of each parts with us according to the following graphical representation before adoption.
Height and number of winding
1.Please fill in the winding height H1, bottom roller height H2, as well as the conveying requirement for up or down.
2.The Max production height of this spiral conveyor is 6M, and the Max number of winding is 10, for angle
change because of different height and number of winding, please consult our customer service department.
3.External dimension of this spiral conveyor (OD) is 1720mm; For transport direction Mode N, please refer attached table and graphical representation.
4.Please specify the angle which can ensure the smooth lifting of goods to be transported, or specify the material of goods to be transported which touch with the conveyor belt.
5.Please specify the volume as well as the direction of goods to be transported
6.Please specify dry & wet environment and temperature difference of the conveyors' operating environment
7.Please specify the power supply voltage and current frequency
Biggest Load Capacity
1.This spiral conveyor can be made from Carbon steel, stainless steel and other materials; it depends on the conveyors' operating environment. Carbon steel chains and Stainless steel chains are also available for driving.
2.Max Load capacity of Carbon steel chains is 750KG, Max Load capacity of Stainless steel chains is 600KG, please pay special attention to it.
3.Please specify Max load capacity and running speed of conveyor belt for us to match optimal motor for you; if the running speed is adjustable, also please indicate it in advance for us to equip speed control system for you.
4.Max running speed of this conveyor is 60M/min, automatic lubricating device is necessary to be installed if the speed exceeds 30M/min.
