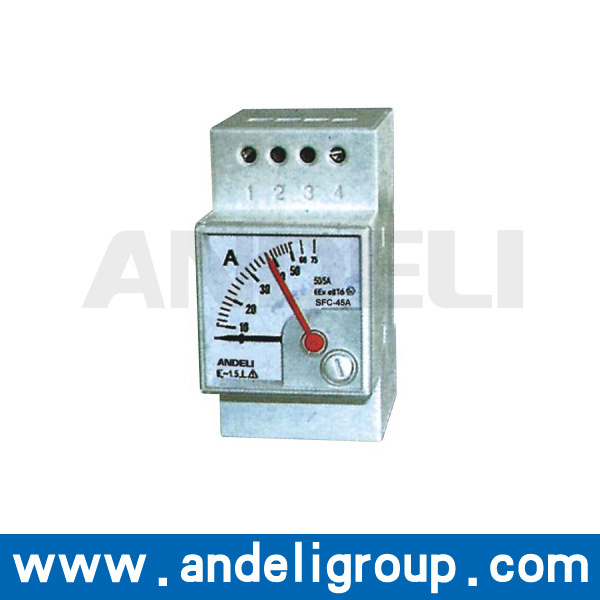

Modular Type Panel Meter

Name: Modular Type Panel Meter
Brand: china-manufacturer-directory.com
SKU: 615251404
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	Modular Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Power Meter
Display:	Indicator
Electric Equipment:	Single-phase
Theory:	Electric Apparatus
Installation:	Direct Connected
Usage:	Meter for Industry and Home Use
Measured Signal:	Pulse Peak
Power Meter Connection:	Terminal

Product Description

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

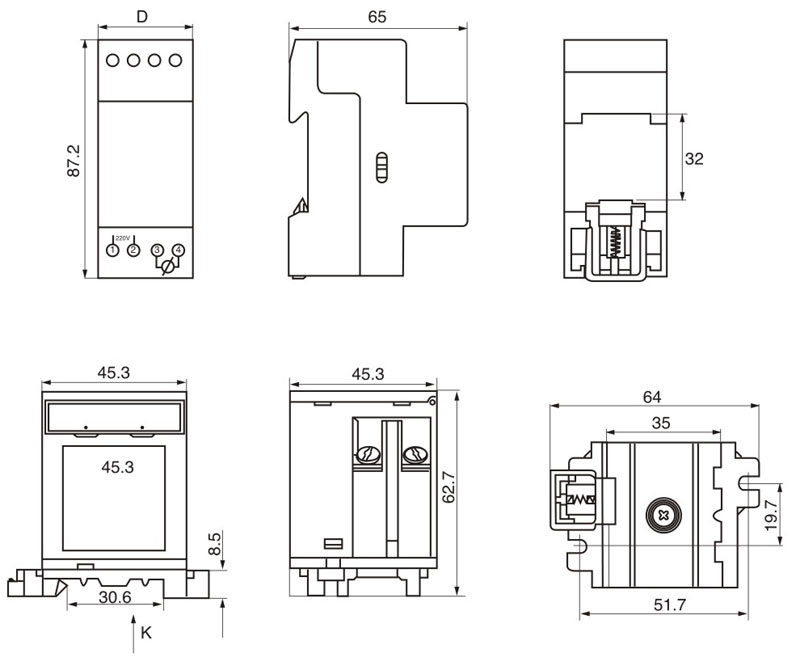

Outline drawing

About us

MODEL	NAME	SPECIFICATION	SPECIFICATION
SFC-45 SFC-100	AC AMMETER	FROM 10A, 15A, 20A, 30A...TO 3000A, 500A	WITH EXT. C/T 1A OR 5A	ACCURACY CLASS 1.5
	AC AMMETER	FROM 0.1A, 0.5A, 1A, 5A, 10A, 25A...TO 80A, 100A	AC DIRECT CONNECTION	CLASS 1.5
	DC AMMETER	FROM 50µ A, 100µ A, 1mA, 5mA...1A, 5A, 10A, 25A, 30A...TO 100	DC DIRECT CONNECTION	CLASS 1.5
	DC AMMETER	FROM 10A, 15A, 20A, 30A...2500A, 3000A...TO 8KA, 10KA	WITH EXT, SHUNT 50MV, 60MV OR 75MV	CLASS 1.5
	AC VOLTMETER	FROM 30V, 50V, 100V...TO 300V, 500V, 600V	AC DIRECT CONNECTION	CLASS 1.5
	AC VOLTMETER	FROM 1KV, 2KV, 5KV...TO 380KV, 450KV	WITH EXT. VOLTAGE TRANSFORMER	CLASS 1.5
	DC VOLTMETER	FROM 10V, 20V, 30V...TO 500V, 600V, 1000V	DC DIRECT CONNECTION	CLASS 1.5
	DC VOLTMETER	FROM 1KV, 2KV, 5KV...TO 8KV, 9KV, 10KV	WITH EXT. RESISTOR	CLASS 1.5
	FREQUENCY METER	VOLTAGE: 110V, 220V, 380V, 440V	...	CLASS 1.0
	FREQUENCY METER	FREQUENCY: 45-55Hz, 45-65hZ, 55-65Hz, 47-53Hz	...	CLASS 1.0
	POWER FACTOR METER(COS§ )	VOLTAGE: 10V, 220V, 380V, 440V CURRENT: 1A OR 5A	FOR IPHASE OR 3PHASE	CLASS 2.5
	POWER FACTOR METER(COS§ )	SCALE: 0.5cap-1-0.5ind, 0.3cap-1-0.1ind, 0.7cap-1-0.2ind	FOR IPHASE OR 3PHASE	CLASS 2.5
	POWER METER(KW OR KVAR)	VOLTAGE: 110V, 220V, 380V, 440V CURRENT: 1A OR5A	FOR IPIW, 3P3W, 3P4W WITH C/T OR VOLTAGE TRANSFORMER	CLASS 1.5

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
