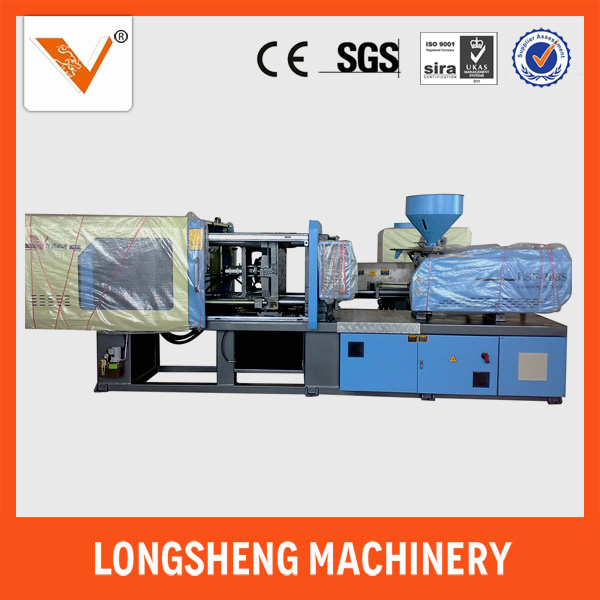

Molding Machine Specifications
1.bigger space between tie-bars
2.central-clamping structure
3.bigger opening stroke,longer ejecting stroke
4.energy saving
ADVANTAGES:
(1) Energy saving
(2) High speed system response with short moulding cycles
(3) Significant working life of the hydraulic oil and hydraulic components, thereby reducing frequency of maintenance and maintenance costs
(4) The extra oil filtration requirements are met by special imported filter components
1. SPECIFICATIONS
chinese products wholesale injetion moulding machine
The LONGSHENG injection molding machines employ a variable pump plus closed loop feedback,which offers stable control of shot size, the accuracy of resin quantity and the increase of the production of acceptable products.
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and with a number of peripheral interfaces.
HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
Company Information
Changzhou Longsheng Machinery Co.Ltd specializes in producing high quality plastic machinery. We are one of the top manufacturers of plastic machinery in China and our main products in plastic injection machinery, blow molding machine ,injection mould , blowing moulds and some auxiliary equipment , Our machinery have CE Certificate
Many of our products have exported to Russia, Belarus, Iran, Singapore, Vietnam, Malaysia, Spain, Argentina, Brazil, more than 60 countries in the world.
Maybe you have viewed our catalog and visited our online product catalog: www.czlongsheng.cn
INJECTION UNIT |
| Unit | LSF-208 |
| A | B | C |
| Screw Diameter | Mm | 45 | 50 | 55 |
| Screw L/D Ratio | L/D | 22.2 | 20 | 18.2 |
| Short Size | Cm3 | 381 | 471 | 569 |
| Injection weight | G
| 347
| 428
| 518
|
| Injection Rate | g/s | 170 | 210 | 254 |
| Plasticizing capacity | g/s | 19 | 23.2 | 28.7 |
| Injection Pressure | Mpa | 229 | 186 | 154 |
| Screw Speed | Rpm | 0-190 |
| Injection Sroke | mm | 240 |
CLAMPING UNIT | Clamp Force | KN | 2080 |
| Space Between Tie Bars | mm | 510*510 |
| Toggle Stroke | mm | 500 |
| Max. Mold Height | mm | 530 |
| Min. Mold Height | mm | 200 |
| Ejector Stroke | mm | 150 |
| Ejector Tonnage | KN | 62 |
| Ejector Number | P | 5 |
OTHERS | Max. pump Pressure | Mpa | 16 |
| Pump motor powder | Kw | 22 |
| Heater Power | Kw | 14.25 |
| Machine Dimension(L*W*H) | M | 5.3*1.5*1.95 |
| Machine Weight | T | 6.9 |
| Oil Tank Capacity | L | 380 |
Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.
Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.
With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.
Innovation is the sole of development for a company. The Sea Accepts All Things, Deriving More Things. The development of Longsheng is course of creative and exceed itself all the time. Study is the vital force of the enterprise, the Longsheng advocate study, and offer all-sided training to improve its staff. Devoted to everything on hand is the management concept of Longsheng, owning concentration and persistence, the enterprise could progress, the staff can improve themselves.
