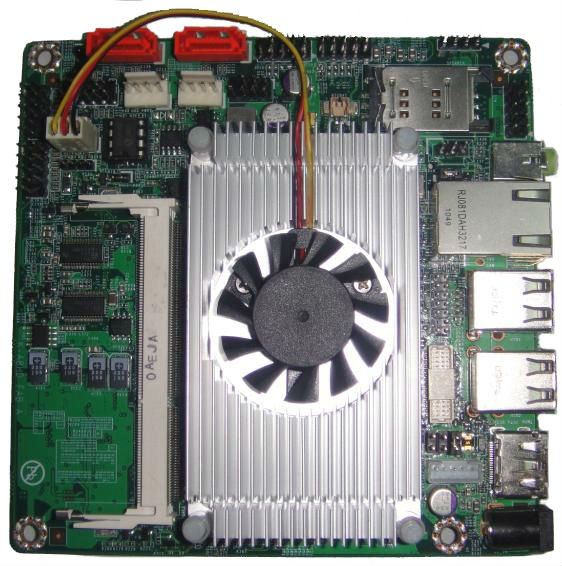

1. Embedded Motherboard with AMD Fusion
2. 1 HDMI interface
3. Realtek ALC662 supporting LINE-out
4. Realtek 8111C 1000M LAN
1. It's the latest evolution of form factor Embedded Motherboard developed by FOX.
2. It is based on AMD Fusion chipset supporting onboard E350 processor.
3. It provides 1 SODIMM slot supporting a memory up to 4GB, 1 LVDS interface and 1 VGA port.
4. It supports independent Dualview, SATA storage modes.
|
Motherboard Type |
NANO-ITX,120x120mm |
|
Processor |
E350,Dual core 1.6G processor |
|
System Memory |
1 SODIMM socket supporting up to 4GB |
|
Chipset |
AMD E350+HD6310 |
|
I/O Chip |
|
|
Ethernet |
Realtel 8111C,1000M Gbe LAN |
|
BIOS |
4M BIOS |
|
Wake-on-LAN |
yes |
|
Watchdog |
Trigger a system reset when the timer overflows |
|
H/W Status Monitoring |
Monitor the state of voltage, temperature and rotational speed of the fan |
|
Expansion Interface |
1xMini-PCIE |
|
Battery |
Lithium battery |
|
Power Supply |
+12V single power supply |
|
Size |
120x120mm |
|
Operating Temperature |
0°C-60°C |
|
Storage Temperature |
(-40°C) ~ 80°C |
|
Operating Relative Humidity |
0%~90% (non-condensation) |
|
Controller |
HD6310 integrated with AMD E350 |
|
Video Memory |
HD6310 dynamic sharing with system memory, support up to 512MB |
|
Resolution |
HDMI support up to 1920x1080 |
|
LVDS support up to 1920×1080×32bpp@60 Hz |
|
HDMI |
1x HDMI,Support to play 1080P video |
|
LCD |
1x LVDS(24 bit),UP to1920x1080 |
|
DVI |
N/C |
|
TV-out |
N/C |
|
Multi-Display |
HDMI+LVDS |
|
Storage |
2 x SATA |
|
Serial Port |
2 x RS232 |
|
Parallel Port |
1 x LPT header |
|
USB |
8 x USB Ports |
|
Keyboard & Mouse |
USB KB/MS |
|
GPIO |
N/C |
|
IrDA |
N/C |
|
Audio |
Realtek ALC662 supporting MIC-IN,LINE-out |
