Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

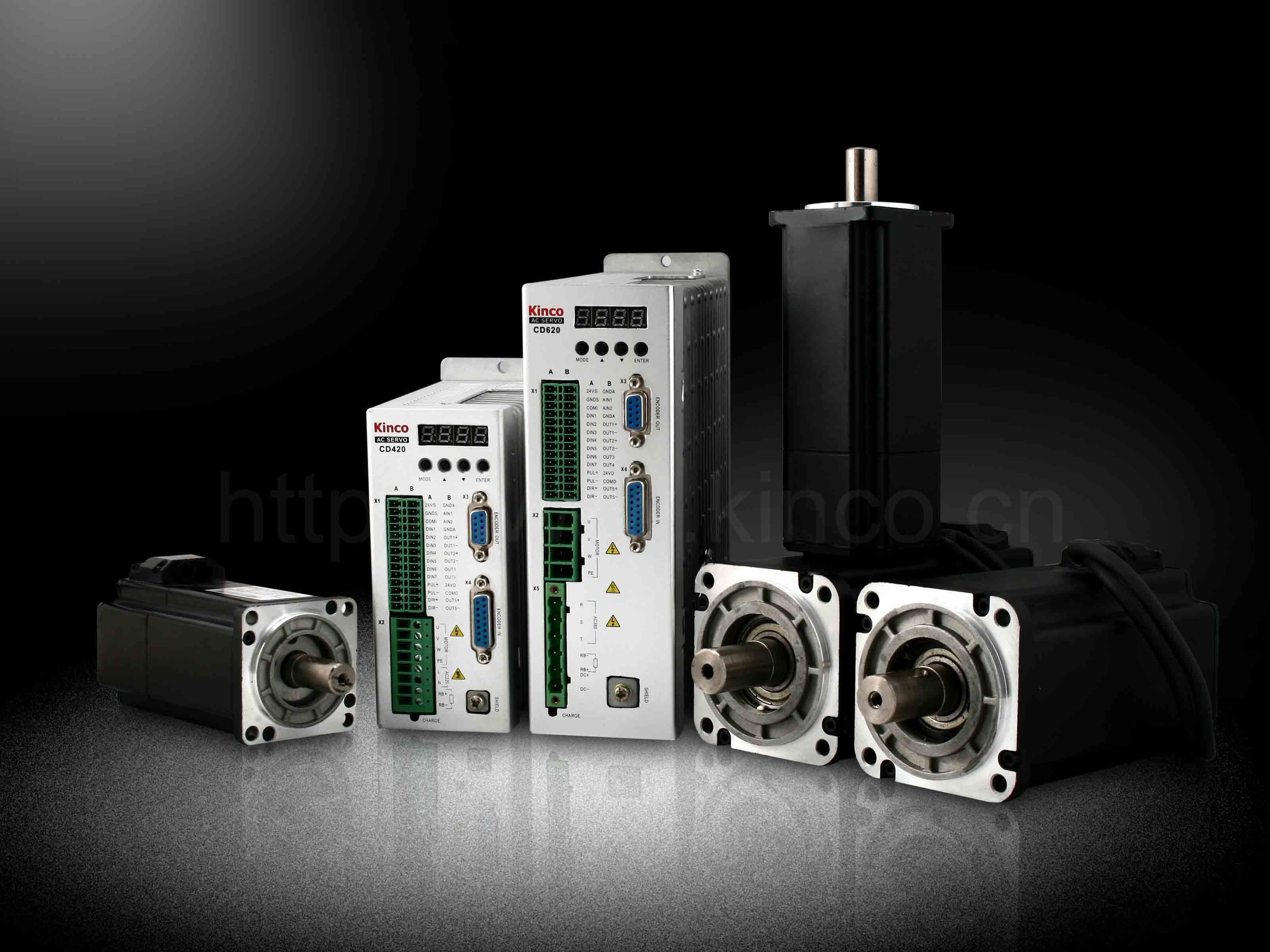

Kinco CD series servo drives are general-purpose drives incorporating versatile control modes while remaining the simplicity of operation and commissioning. Thanks to the advanced controlling algorithm inside, CD drives feature fast response frequency, high accuracy, and high over-load capacity and gain auto-tune function. CD can be used in applications requiring circular interpolation.
Motion control/controller
Model CD420/430/620(380VAC), power rang from 200W to 2KW.
Main features:
-With many protective measures against events like overvoltage, over current, overheat and etc.;
-Easy commission with built-in operation panel or complimentary PC software;
-Simple wiring, welding free; -High responsefrequency, the bandwidth of speed loop can be up to 600Hz;
-Support multiple control modes like pulse and analog;
-Support automatic gain adjustment, suitable for most application
|
Category |
Power |
Driver |
Motor |
Rated speed/Rated torque/Rated current |
|
Small inertia 220V |
200W |
CD420-0020-0016-AA-000 |
SMH60S-0020-30AAK-3LKL |
3000rpm/0.64Nm/1.6A |
|
SMH60S-0020-30ABK-3LKL |
|
SMH60S-0020-30AAK-3LKM |
|
SMH60S-0020-30ABK-3LKM |
|
400W |
CD420-0040-0031-AA-000 |
SMH60S-0040-30AAK-3LKL |
3000rpm/1.27Nm/3.1A |
|
SMH60S-0040-30ABK-3LKL |
|
SMH60S-0040-30AAK-3LKM |
|
SMH60S-0040-30ABK-3LKM |
|
750W |
CD420-0075-0039-AA-000 |
SMH80S-0075-30AAK-3LKL |
3000rpm/2.39Nm/3.9A |
|
SMH80S-0075-30ABK-3LKL |
|
SMH80S-0075-30AAK-3LKM |
|
SMH80S-0075-30ABK-3LKM |
|
1000W |
CD430-0100-0063-AA-000 |
SMH80S-0100-30AAK-3LKL |
3000rpm/3.18Nm/6.3A |
|
SMH80S-0100-30ABK-3LKL |
|
SMH80S-0100-30AAK-3LKM |
|
SMH80S-0100-30ABK-3LKM |
|
Medium inertia 220V |
1.05KW |
CD430-0105-0054-AA-000 |
SMH110D-0105-20AAK-4LKC |
2000rpm/5Nm/5.4A |
|
SMH110D-0105-20ABK-4LKC |
|
SMH110D-0105-20AAK-4LKM |
|
SMH110D-0105-20ABK-4LKM |
|
1.26KW |
CD430-0126-0062-AA-000 |
SMH110D-0126-20AAK-4LKC |
2000rpm/6Nm/6.2A |
|
SMH110D-0126-20ABK-4LKC |
|
SMH110D-0126-20AAK-4LKM |
|
SMH110D-0126-20ABK-4LKM |
|
1.25KW |
CD430-0125-0065-AA-000 |
SMH110D-0125-30AAK-4LKC |
3000rpm/4Nm/6.5A |
|
SMH110D-0125-30ABK-4LKC |
|
SMH110D-0125-30AAK-4LKM |
|
SMH110D-0125-30ABK-4LKM |
|
Medium inertia 380V |
1.26KW |
CD620-0126-0043-AA-000 |
SMH110D-0126-30AAK-4HKC |
3000rpm/4Nm/4.3A |
|
SMH110D-0126-30ABK-4HKC |
|
SMH110D-0126-30AAK-4HKM |
|
SMH110D-0126-30ABK-4HKM |
|
1.57KW |
CD620-0157-0054-AA-000 |
SMH110D-0157-30AAK-4HKC |
3000rpm/5Nm/5.4A |
|
SMH110D-0157-30ABK-4HKC |
|
SMH110D-0157-30AAK-4HKM |
|
SMH110D-0157-30ABK-4HKM |
|
1.88KW |
CD620-0188-0062-AA-000 |
SMH110D-0188-30AAK-4HKC |
3000rpm/6Nm/6.2A |
|
SMH110D-0188-30ABK-4HKC |
|
SMH110D-0188-30AAK-4HKM |
|
SMH110D-0188-30ABK-4HKM |
