Product Specifications
| Prod Model: |
TTCE-M600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
12 V-24V |
| Work Current: |
1.5A-2.0A |
| Communication Method: |
RS232/USB |
| Magnetic Life Span: |
Not Less Than 1, 000, 000 Times |
| Dimension: |
40.2mm(Length)*83.5mm(Width)*40.5mm(Height) |
| Weight: |
850g |
| Card Style: |
Magrf/IC (Contactless/Contact Cards) |
| Certification: |
ISO |
| Type: |

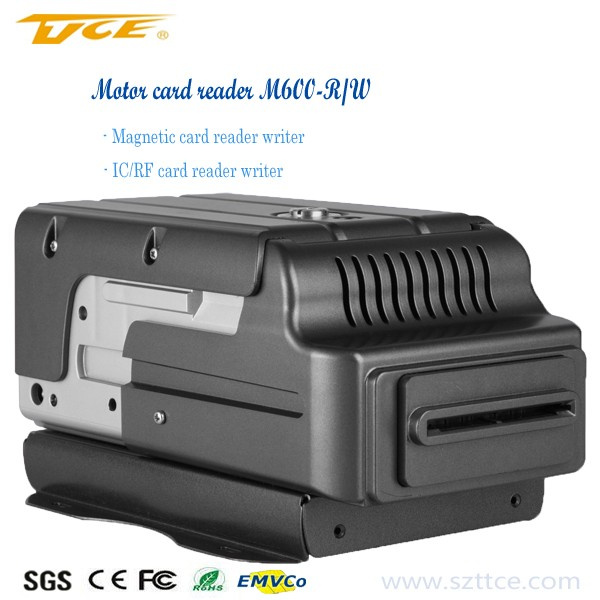

Motor Card Reader |
Product Description
1. Support ISO7811 standard magcard read. TTCE-M600-W can write high/low resistance magcard. The high and low resistance of magnetic head is option.
2. Support ISO7816, EMV, PBOC2.0 standard contact IC card read and write
3. Through command can open non-even speed enter card to prevent pirate card data.
4. Dual latch design, the first layer is mechanic latch which can prevent dust and foreign things. The second layer is electric latch which with anti-hook function
5. Support comply with ISO7816\EMV\PBOC2.0 SAM card read/write
6. Support eject or retrieve card when power off
7. Support read/write contactless IC card
Application
. ATM
. Nformation kiosk
. Electronic purse
. Self-service terminal
. Automatic vending machine
. Electric purse
. Recharging machine
| Operation Power | TTCE-M600-R:12VDC(Max current1.5A,Static current100mA)
TTCE-M600-W: 24VDC(Max current 2.0A,Static current 100mA) |
| Operation temperature | -20 oC~85 oC |
| Operation Humidity | 0~90%RH |
| Interface | USB/RS232 |
| Operation Condition | According the command to control |
| Card size | Width:54±0.5mm/ Length:85±0.5mm/ Thickness:0.6-1.5mm |
| Contactless Card standard | Comply with ISO14443 Type A and B |
| Magnetic standard | Comply with ISO7810, 7811-1 to 6, 7812, 7813, ISO15457 |
| Contact IC card standard | Comply with ISO816 |
| Materials | Paper card or plastic card |
| Maghead lift | 1,000,000 times |
| IC head lift | 500,000 times |
| Drive device | 1,000,000 times |
| Dimension | 195.5(l)*91.8mm(w)*76.5mm(h) |
| Weight | About 850g |
Shenzhen TianTeng Industry Co., Ltd is a high technology corporation assessed by Shenzhen technology and information office. Our company is focusing on researching, producing and marketing products. Our products are widely used in the fields of bank, city one-payment card system, mobile system, transportation system, underground and parking lot.
Our main products are: Card Issuing/reclaiming reader, Automatic-reclaim card machine, Electric Card Reader, Automatic counting machine, Card issuing/ reclaiming reader & writer.
Tianteng industrial Co., Ltd has our own brand TTCE, and has an experienced technology group of high education in many subjects, Through our continuous efforts, we have developed a lot of patent technology according to market demand, and achieved certificates of ISO9001\ISO14001\PBOC2.0\EMV etc.
Our company has fetch in the idea of environmental protection since 2003, and had become one of the earliest company in this field in the world. Up to now, we have a perfect administrators and operating system of environmental protection. Our company has professional testing equipment and environment.
