Product Specifications
| Prod Model: |

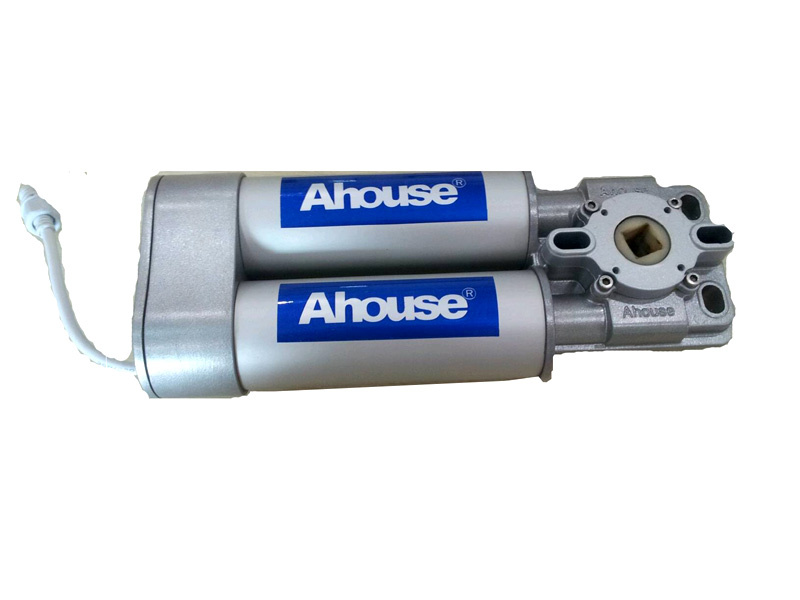

Ahouse DA motorized awning system -Solar |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
AC110V~AC 240V |
| Operating Voltage: |
DC24V |
| Operating Current: |
8A |
| Safety Detection: |
Automatically Stop When Meet Obstacle |
| Control Panel: |
Buitl-in Controller/Solar Power Control Box(Option |
| Suitable Awnings Width: |
1~8 Meter |
| Suitable Windows Weight: |
Max 70kg |
| Torque: |
25n.M |
| Driving Method: |
Worm Gear |
| Motor Size: |
24.5*7*4.5cm or 27.5*11*4.5cm |
| Type: |
Worm Gear |
| Material: |
Aluminum |
Product Description
Automatic Awning System, Automatic Awning SystemFeature1) High torque, DC24V low voltage motor for maximum safety.
2) Aluminum frame housing, fully built-in compact design, easy installation.
3) Soft start and soft stop function.
4) Automatic stop when hitting obstacles during opening or closing.
5) Built-in hall sensor for accurate opening and closing range with self-learning function.
6) Programme setting by remote control.
7) Power: Electric supply or solar system can be selected.
8) Optional parts: Wind/Light/Rain Detector, Smoke Detector, Temperature Detector, Push Button.
9) Suitable for Awning, Skylight, Top-hung Window, Curtain Wall, Casement Window, Roller Blind.
10) Patented design, CE approved product.
Suitable for Awning, Skylight, Top-hung Window, Curtain Wall, Casement Window, Roller Blind.
Quick installation and patented design solar system control.
| Model | RA | DA |
| Power Supply | AC110v~AC 240v | AC110v~AC 240v |
| Operating Voltage | DC24v |
| Operating Current | 3A | 8A |
| Safety Detection | Automatically stop when meet obstacle |
| Optional Parts | Smoke Detector,Temperature Detector and Wind/Light/Rain Detector |
| Control System | Electric Power or Solar control system |
| Control Panel | Buitl-in controller/Solar Power control box(optional) |
| Suitable Awnings Width | 1 to 6 meter | 6 to 8 meter |
| Suitable Windows Weight | Up to 25kg | Up to 70kg |
| Torque | 25N.M | 70N.M |
| Material | Aluminium Alloy |
| Driving Method | Worm Gear |
| Remote Control Button | Open/Close/Stop/Function |
| Noise | Bellow 50dB |
| Temperature | -25°to + 50° |
| Motor Size | 24.5*7*4.5cm | 27.5*11*4.5cm |
| Carton Size | 33*15*8.5cm |
Ahouse Mechanical and Electrical Co., Ltd. is a manufacturer and specialist for designing, producing and exporting all type of home and commercial automatic door and window systems, which include sliding gate opener, solar swing gate opener, underground swing gate opener, outdoor lock, garage door opener, solar retractable awnings, automatic sliding door system, automatic window actuator.
We started to produce mold and precise alloy parts since 1991 then the PCB design and OEM products assembly around the beginning of 2000, so we manage to produce all parts and components for our main products by our own engineering team, this is the reason we can control our product quality and maintain competitive price. All our products are CE/ IP 66/ IP 67 approved. OEM/ODM orders are also welcomed by us.
Located in Zhongshan City, Guangdong, we had obtained I S O 9 0 0 1 & CE quality certification and unique patents for Ahouse series products.
Follow the "First quality and service" management ideas, we
sincerely wish to welcome the customers from all of the world.
Ahouse Advocate Green and LOHAS Life. Environmental protection and user friendly technology can better the experiences when use Ahouse automation systems.
Meanwhile we sincerely hope through our service, we can make every our valuable customers and end user's life more efficient and happy.
We are here looking forward to having long term relationship with your esteemed company. You can send your inquiries to us then our sales team will give you the feedback within very short time.
