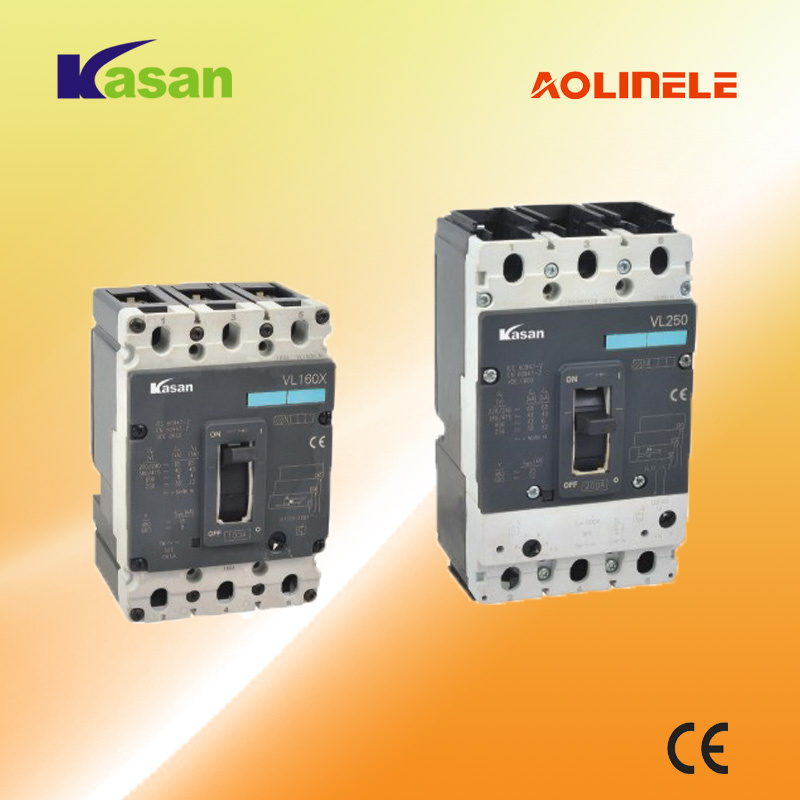

Moulded Case Circuit Breaker (KVL-160/KVL250)

Name: Moulded Case Circuit Breaker (KVL-160/KVL250)
Brand: china-manufacturer-directory.com
SKU: 690490072
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

APPLICATIONS:
NSX moulded case circuit breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage.

Specifications	NS100				NS160				NS250				NS400				NS630
Frame Current (A)	100				160				250				400				630
Number of Poles	3		4		3		4		3		4		3		4		3		4
Ultimate Breaking Capacity (Icu, kA)	F	N		H	F	N		H	F	N		H	F	N		H	F	N		H
AC220/240V (kA)	85	90		100	85	90		100	85	90		100	40	85		100	40	85		100
AC380/415V (kA)	36	50		70	36	50		70	36	50		70	36	50		70	36	50		70
Rated Insulation Voltage	AC800V
Rated Working Voltage	AC690V
Rated Current, Thermal Tripping, TMD, A	63, 80, 100				80, 100, 125, 160				125, 160, 200, 250				-				-
Rated Current, Electronic Tripping, MIC, A	40, 100				40, 100, 160				100, 160, 250				250, 400				250, 400, 630
Auxiliary, Alert, Fault Accessories	OF/SD/SDE/SDx
Shunt & Under Voltage Coil	MX/MN
Mechanical Life	50000				40000				20000				15000				15000
Electric life	30000				20000				10000				6000				4000
Installation Type	Fixed

Prod Model:	vl
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole Number:	2p.3p.4p
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
