Product Specifications
| Prod Model: |
SDC-3001E-TR |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description
Outline:

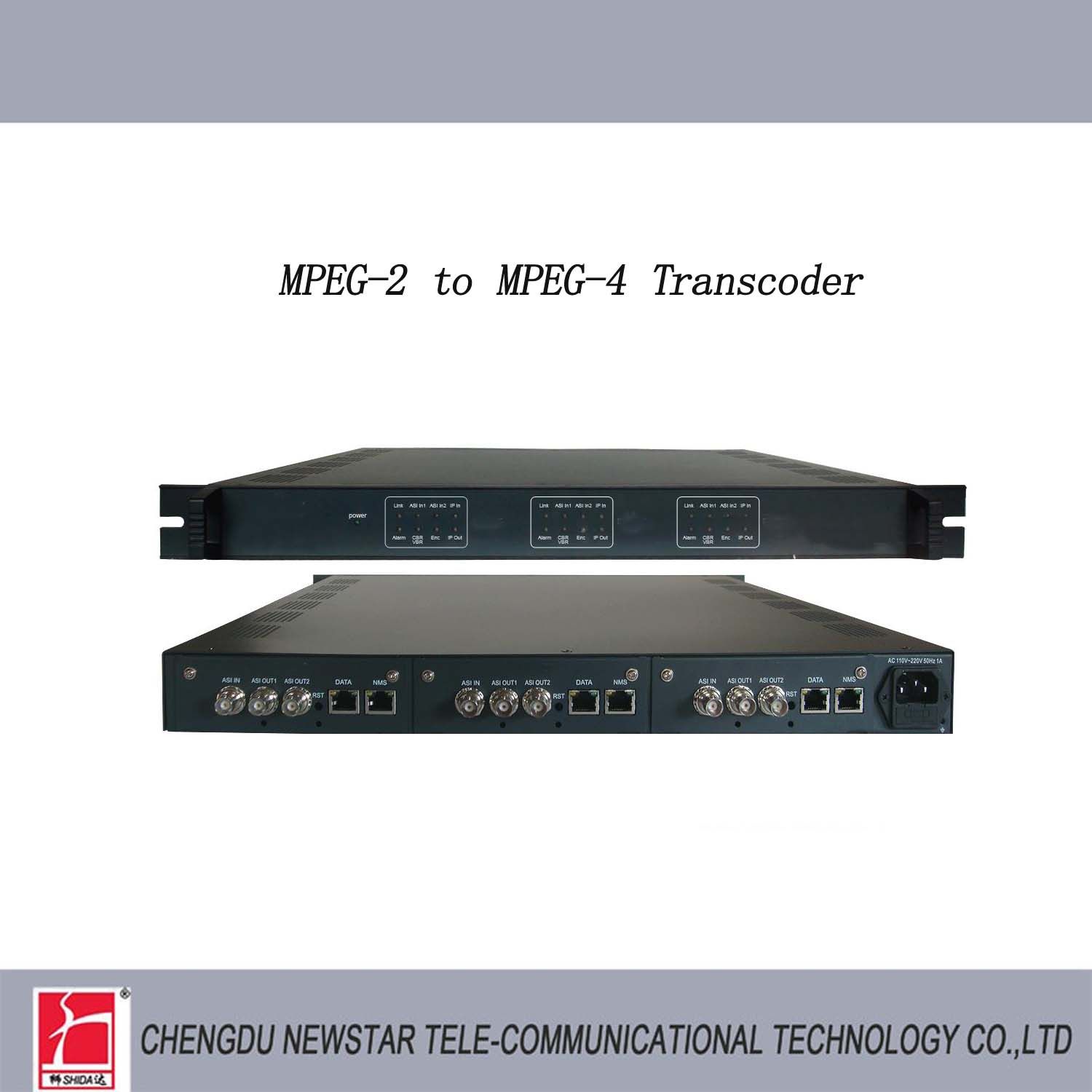

The MPEG-2 to MPEG-4 AVC/H. 264 SD Transcoder with IP output is a professional SD TS Transcoder Device. It has 1 ASI Input Interface, and 2 ASI (mirror) Output Interfaces, and it supports MPEG-2 Encoding format to MPEG-4 AVC/H. 264 Encoding format Transcoding. The Transcoding process are fully completed with Digital Signal and no any D/A, A/D converting. In other words, it has no any signal quality loss. This device can de-multiplex 1 program from the input MPTS and Transcode the program from encoding format MPEG-2 to MPEG-4 AVC/H. 264. Moreover, it also has IP TS input function and IP TS output function. The Transcoder operations are carried through NMS.
Features:
Modularized Design, Up to 3 Transcoding Modules in 1U housing.
1× ASI Input Interface
Supporting 720x576I, 720x480I Standard Definition
Audio MPEG-1 Layer2, AAC (optional)
Supporting MPEG-2 to MPEG-4 AVC/H. 264 Encoding format
Supporting CBR and VBR
Supporting IP Output (SPTS over UDP protocol)
Supporting NMS management
|
Input |
1×ASI input,BNC interface |
|
Video |
Resolution |
D1 720x576i, 720x480i |
|
Transcoding |
MPEG-2 to MPEG-4 AVC/H.264 |
|
Rate Control |
CBR/VBR |
|
Audio |
Encoding |
MPEG-1 Layer2 |
|
Sampling rate |
48KHz |
|
Resolution |
24 bit |
|
Bit Rate |
64Kbps ~ 384Kbps |
|
Stream output |
2 × ASI Outputs, BNC Interface |
SPTS over UDP,10/100Base-T Ethernet Interface
(UDP unicast / multicast) |
|
System function |
NMS support |
|
Ethernet software upgrade |
|
General |
Dimensions (WxDxH) |
482mm×455mm×44.5mm |
|
Approx weight |
6Kg |
|
Temperature range |
0~45Operation -20~80Storage |
|
Power requirements |
AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz |
|
Power consumption |
17.6W |
