Product Specifications
Prod Model: |
MS6-LOE-1/2(3/8) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Ms6-Loe-3/8 |
Working Medium: |
Compressure Air |
Port Size: |
G3/8" |
Working Pressure: |
0.1~1.0mpa(14.5~145psi)(1.0~10bar) |
Proof-Pressure: |
1.5mpa(217.5psi)(15bar) |
Working Temperature: |
-10~60°c |
Flowing For 40um (L/Min): |
5300 |
Body Material: |
Aluminum Alloy |
Lubricant Recommended: |
ISO Vg32 or Equivalent |
Max Storage Oil (Cm³): |
130 |
Type: |
Source Treatment unit |
Product Description
Specifications

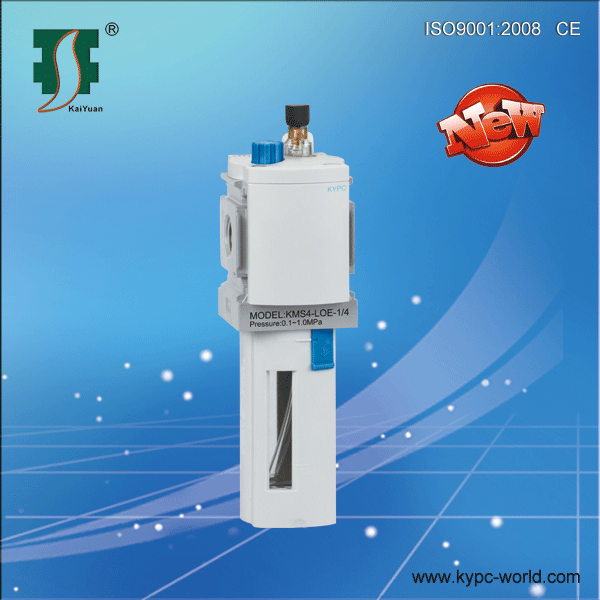

MS6-LOE-1/2(3/8) lubricator,pneumatic lubricator,air lubricator,festo
And similar products can be interchanged FESTO.
MS6-LOE-1/2(3/8) lubricator,pneumatic lubricator,air lubricator,festo
# Product introduction
1.The body was diecasting in high-strengthaluminum alloy;
2.Thread was machining by CN,clean and beautifull;
3.High-strength plastic protective cover;
4.Tramsparant checking window trickle oil quantity is visual;
5.Can add the oil with in pressure;
6.Stainless steel bolt;
7.Plastic decorative sheet,very beautifull;
8.Strang then the glass material so that the max proof-pre-ssure of up to 1.6MPa;
Model |
MS6-LOE-3/8 |
MS6-LOE-1/2 |
Working medium |
Compressure air |
Port size |
G3/8" |
G1/2" |
Working pressure |
0.1~1.0MPa(14.5~145Psi)(1.0~10bar) |
Proof-pressure |
1.5MPa(217.5Psi)(15bar) |
Working temperature |
-10~60°C |
Flowing for 40um (L/min) |
5300 |
7200 |
Body material |
Aluminum alloy |
Lubricant recommended |
ISO VG32 or equivalent |
MAX storage oil (cm³) |
130 |
Type of mounting |
Through the accessory of mounting |
Assembly position |
Vertical ±5° |
Protective cover |
available |
Weight (kg) |
0.6 |
Ningbo Boman Kaiyuan Pneumatic Engineering Co., Ltd is a factory professionally produce pneumatic components. The products are main including Solenoid-Valves and Solenoid-Valves Accessories, Compressed air perpartion, Pneumatic Cylinder and Pneumatic Cylinder Accessories, etc. Offer the credible quality product and project solution to users from all parts of the world. The products are widely used in such as metallurgy, food, textile, machinery, chemistry and electronics, etc.
The general headquarters of the company are located in the national AAAAA class scenic spot with green hills and clear waters and with inside information of deep history and culture Xikou Town., innovation is the existence shape to develop forever, the entrepreneur's innovative enterprising spirit is the source motive force of company's development, Create the value for customer is mission and existence of the company. First-class talents, advanced equipment, strict quality control system is the base for producing the high-quality products invariably.
Kaiyuan believe: "Innovation Is an Unyielding Principle"
With good quality, reasonable price and completed service, we sincerely welcome customers from all parts of world for visiting and business negotiation.
