Product Specifications
| Prod Model: |
MSR009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Data Collector |
| Certification: |
FCC |
| Currency Detector Type: |
Portable Handheld Detector |
| Data Collector Signal Transmission: |
Wireless |
Product Description

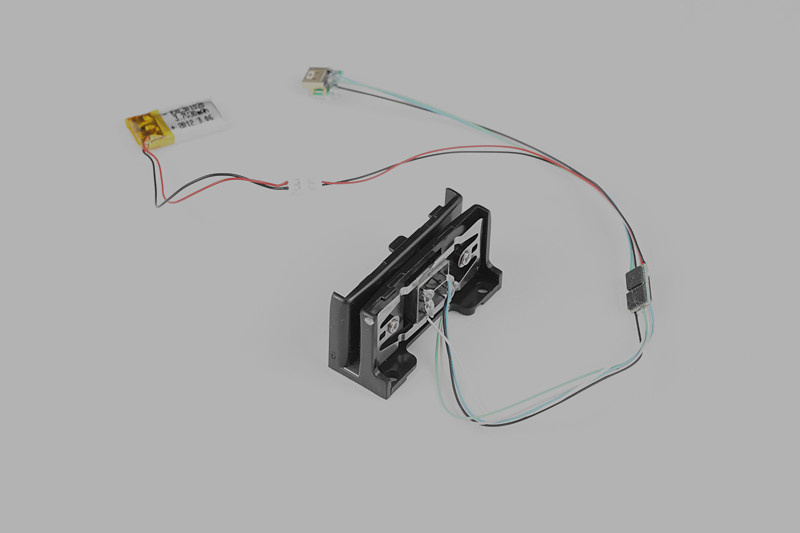

MSR009 Smallest Magnetic Stripe Card Reader with 3mm Magnetic Head Free Shipping
All 3 Tracks USB Encryption Middle Stop Magnetic Stripe Card Reader
2M Byte EEPROM (MSR009) with interruption function
Basic Info.:
Model NO.: MSR009
Installation: External
Card Slots: All in 1 & Multi in 1
Interface: USB
PCB Size: 10.40 * 5.80 * 2.50mm/ 0.41 * 0.23 * 0.10 Inches
Read Tracks: All 1, 2 & 3 Tracks Readable
Read Cards: Read All Magnetic Cards
Swipe Direction: Bidirectional
Encryption: Fully Encrypted
Download: Data Downloadable
Free Software & Mannual: Yes
Free Rechargeable Li-io Battery: Yes
Free USB Data Cable & Charger: Yes
Free Plastic Rail/ Magnetic Slot: Yes
Product Description:
Small card reader with interruption, USB cardreader, battery rechargeavle card reader, small reader MSR009
Mini size: 43(L)X15(W)X22(H) mm
Interrupted function
Battery rechargeable
Specification:
PCB size: 10*5.8*2.5mm
Weight: 10. G
Memory: 2M Byte EEPROM
Features:
Ultra low power consumption
Reads interrupted swipes in both directions
Reads all magnetic cards
Low voltage operation
Swipe Direction - bidirectional
Data downloadable to the computer via USB
Time stamp shows date and time with every transaction
Hardware imbedded password protection
3-track version can collect all three tracks data
Fully encrypted
Stores 32000 card scans
All swipes are timestamped
Data retained even if power is removed
No programming required, easy to use as 1- 2- 3
Applications:
Any movable data collection (Trade shows, Racing events)
Point of sales
Law enforcement (DMV card)
Attendance (Student ID, Membership card)
Conference Attendance
Classroom Attendance
Meeting Attendance
Door Locking Systems
Software Installation and Usage:
The software for MSR009 has been designed and tested on Windows XP and Windows 7 and so on(all Windows system ,32 and 64bit).
Specification:
PCB size: 14*6.15*2.85mm
Weight: 10. G
Memory: 2M Byte EEPROM
Power supply: Take Power by lithium battery, USB port and directly charging, maintaining 20 more days after fully charging.
Cards Standard: ANSI, ISO, ABA
Track: All 1&2&3 tracks bidirectional readable
Data structure: Date + time +' %'1st track data? '+': 2ND track data '? ' 3rd track data?
Storage record: 8000 records for Permanently remain, they can be canceled or updated by command
Output interface: USB communication cable, command download, USB 2.0
Operating Temperature: -10 ~ 50 C
Relative Humidity: -20 %~ 70 %rh
Lifespan of magnetic head: 500,000 times
