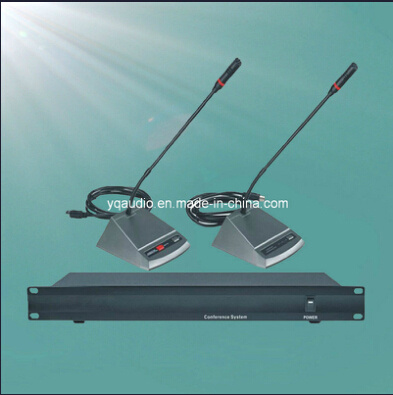

Multifunction Remote Conference Unit Microphone
Rated voltage: AC220V ± 10% 50Hz
Frequency response: 20Hz-20KHz
Output impedance: REC: 200Ω
LINE: 200Ω
The BALANCE: 300Ω
LINE OUT: 400Ω
Signal to noise ratio: 78dB (1KHz THD1%)
Monitor Earphone output power: 2W maximum
Supply microphone power: 18VDC safe voltage
Supply microphone nominal power: 100W
System audio output: Balanced / unbalanced
Size: 485X220X62mm (19 "international standard rack)
Net Weight: 3.5KG
Chairman of the MT-200C / D / on behalf of the technical parameters
Sensor type: Capacitive
Point features: A single point of ultra-heart-shaped
Frequency response: 50Hz-17KHz
Spiritual sensitivity: -45 ± 2dB @ 1KHz
Input voltage: 18V (host unit powered)
Minimum output impedance: 1KΩ
Total distortion <3% Max SPL: 124dB
Equivalent input noise sound pressure: 24dB (A)
SNR: 68dB (A)
Data cable: 2.1m 8P shielded wire
Microphone Net weight: 1KG
Annex: Wind sponge
Description:
1)We have passed ISO9001: 2008 on 2012 and 2013, also we have passed CE, CCC, FCC, ROHS, CE-LVD and so on. It is approved by SGS.
2)We are a factory which has 2700 square metres. It is approved by SGS.
3)We can design the amplifier and speaker by our clients. It is It is approved by SGS.
About Us:
Guangzhou Yunqiang Electronics Limited is a developing amplifier, speaker, stage lighting factory in Guangzhou, China. Based in the interenational and manufactures innovative, . High quality Amplifier, Speaker, Stage Light products for the professional Club Play and stage show Entertainment & leisure
Our purpose:
Quality first, Credit first, Customer first, First-rate service.
We insist in "honest business and high quality service" as our business ideal, with a powerful R&D team and a group of skilled workers in the factory as the strong backup and support, we always work on this ideal to serve all customers with good quality and reasonable price.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
And we have newest CE, FCC, RoHS, report which is on March, 2015.
2015 China International Professional Light and Sound exhibition.
Our booth is G02, 11.2.
Address is Pazhou, Panyu distrit, Guangzhou, China.
Time is 4 to 8 April, 2015
