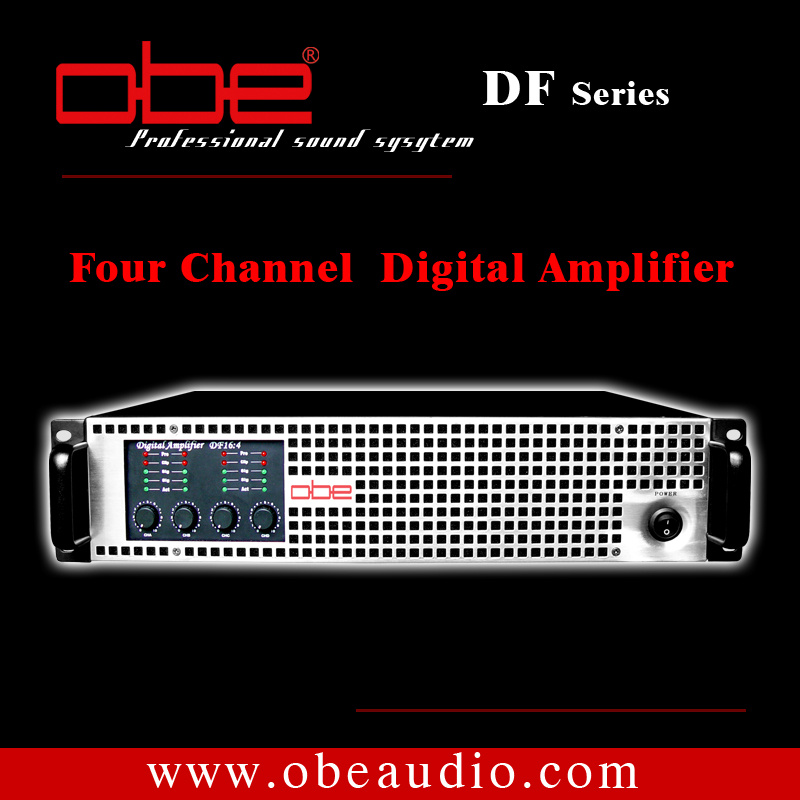

High power switching power amplifier
Model: DF3: 4
Power Output(RMS)8Ω : 150W× 4
Power Output(RMS)4Ω : 280W× 4
Input Impedance: 20KΩ -10KΩ
Frequency Response: 20Hz-20KHz
THD: ≤ 0.05%
S/N: ≥ 95dB
Damping Factor: >300
DC Protection: Have
Temperature Protection: Have
Input Sensitivity: 1V
Gross Weight: 5kg
Packing Dimension(HWD): 135× 435× 545mm
Model: DF-12: 4
Power Output(Max)8Ω : 650W× 4
Power Output(Max)4Ω : 1200W× 4
Power Output(Max)2Ω : 2400W× 4
Input Impedance: 20KΩ -10KΩ
Frequency Response: 10Hz-40KHz
THD: ≤ 0.1%
S/N: ≥ 105dB
IMD: ≤ 0.2%
Damping Factor: >600
DC Protection: Have
Temperature Protection: Have
Input Sensitivity: 1.1V
Net Weight: 14kg
Gross Weight: 17kg
Dimension(HWD): 98× 480× 480mm
Model: DF-14: 4
Power Output(Max)8Ω : 800W× 4
Power Output(Max)4Ω : 1500W× 4
Power Output(Max)2Ω : 3000W× 4
Input Impedance: 20KΩ -10KΩ
Frequency Response: 10Hz-40KHz
THD: ≤ 0.1%
S/N: ≥ 105dB
IMD: ≤ 0.2%
Damping Factor: >600
DC Protection: Have
Temperature Protection: Have
Input Sensitivity: 1.1V
Net Weight: 14kg
Gross Weight: 17kg
Dimension(HWD): 98× 480× 480mm
Model: DF-16: 4
Power Output(Max)8Ω : 1000W× 4
Power Output(Max)4Ω : 1800W× 4
Power Output(Max)2Ω : 3400W× 4
Input Impedance: 20KΩ -10KΩ
Frequency Response: 10Hz-40KHz
THD: ≤ 0.1%
S/N: ≥ 105dB
IMD: ≤ 0.2%
Damping Factor: >600
DC Protection: Have
Temperature Protection: Have
Input Sensitivity: 1.1V
Net Weight: 14Kg
Gross Weight: 19kg
Dimension(HWD): 98× 480× 480mm
