Product Specifications
Product Description

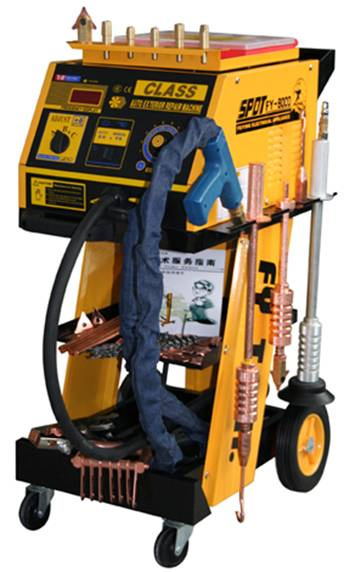

The Plate Renovated Machine's features: Easy moving and operating; High power output; Welding functions such as vertical pulling, heating/contract sheet plate, spot welding, screw post, plate cutting etc Accordance with the correct operation, Without dismantling the vehicle, It is the most ideal and necessary equipment for auto maintenance.
Super Configuration
Spot welding machine can reach the best result with micro processor control, advanced digital control tech, and special personalize design due to choose the suitable welding strength.
Adopt HUA curve silicon steel chip, 100% copper core transformer
Adopt world famous brand DELIXI,OMRON,PANASONIC relay
Welding tips for vertical pulling is available
Adopt precise time adjustment system
Various pulling power devices and different welding torches.
Equipped with screw post welding device
Welding strength can be chosen
Equipped infinitely current regulate, for any options
Equipped with various of welding tools
Equipped with pneumatic vacuum cupule device
Characteristic
Voltage monitor automatically
When temperature of the welder reaches the critical value, the welder get to cooling automatically
Adopt precise time adjustment system
Welding tips for vertical pulling is available
Welding functions for different plates such as heat,meson,vertical pulling,spot welding,flatten,waveform line,screw post,OT type pulling washer,triangle washer etc
Digital display
Large-scale pull strength and ripple line weld
Specification
Input voltage: 220V/380 V 50/60Hz
Input power: 20 KVA
Input current: 52 A
Instand max. Current: 5400 A
One side welding thickness: 0.8+1.2 MM
Operation way: Continuity
Time regulation system: 0-99ms, Setting Automatic
Operation place: ABC
Power cable length: 2300+1900 MM
Vacuum cupule device: 180 KG
Claw puller: Available
Vertical pull welding torch: Available
Dimension: 620x450x980 MM
Weight: 80 KG.
