Product Specifications
Product Description

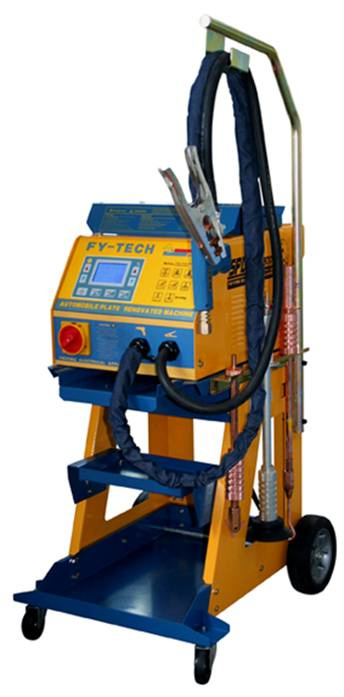

FY-9000 Auto Plate Renovated Machine with Times initiative technology. According to the input alternating current 380V, . The microprocessor control regulated the inner operation voltage automatically. The digital large blue light LCD screen displays Chinese and English graph or word showing the different operation cases clearly; Unique sliding welding torch rake can turn 360°.
Super Configuration
Spot welding machine can reach the best result with micro processor control, advanced digital control tech, and special personalize design due to choose the suitable welding strength.
Adopt HUA curve silicon steel chip, 100% copper core transformer
Adopt world famous brand DELIXI,OMRON,PANASONIC relay
Welding tips for vertical pulling are available
Adopt precise time adjustment system
Equipped unique sliding type puller
Various pulling power devices and different welding torches
Equipped with screw post welding device
Welding strength can be chosen
Equipped with various of welding tools
Equipped with pneumatic vacuum cupule device.
Characteristic
Voltage monitor automatically
When temperature of the welder reaches the critical value, the welder got to cooling automatically
Repair functions for different steel auto body including stainless steel and other materials
Adopt precise time adjustment system
Welding function for different plates such as heat,meson,vertical pulling,spot welding,flatten,waveform line,screw post,OT type pulling washer,triangle washer etc
LCD digital screen displays Chinese and English
Equipped infinitely current regulate, for any options
Specification
Input voltage: 380V 50/60Hz
Input power: 22 KVA
Input current: 57 A
Instand max. Current: 5800 A
One side welding thickness: 1.0+1.2 MM
Operation way: Electornic timer, continuity
Time regulation system: 0-99ms, Setting Automatic
Operation place: Infinitely regulation
Power cable length: 2300+1900 MM
Vacuum cupule device: 180 KG
Claw puller: Available
Vertical pull welding torch: Available
Dimension: 720x600x1550 MM
Weight: 86 KG.
