Product Specifications
| Prod Model: |
ZC-TT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation System: |
PLC Touching Screen |
| Control System: |
Automatic Manual All-in-One |
| Name: |
Multi Function Ion Coating Machine |
| Place Of Original: |
China |
| Business Type: |
Factory |
| Sample: |
Avaliable |
| Brand: |
Zhicheng |
| Technic: |
Vacuum Coating Technology |
| Size: |
Depend on The Needs of Customers |
| Applied Industry: |
All |
| Type: |
High-Performance Low-Pressure Spray Equipment |
| Application: |
Hardware Spraying Equipment |
| Certification: |
ISO |
| Method Type: |
Automatic |
| Coating: |
Titanium |
Product Description

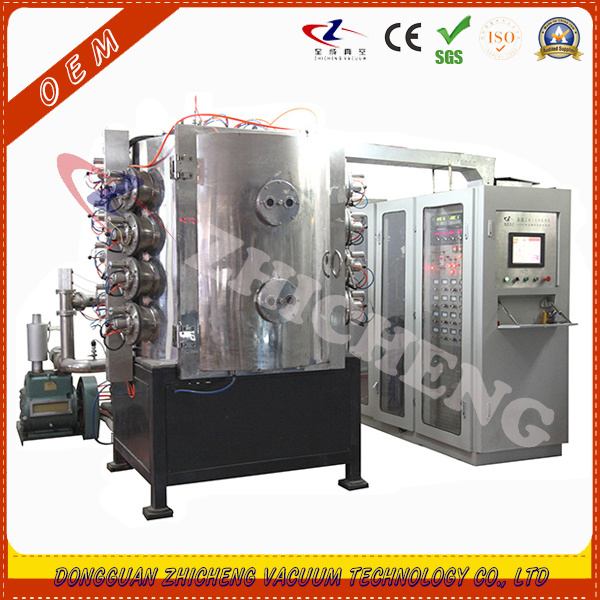

Multi Function Ion Coating Machine
The mould multi-arc ion plating machine is mainly used in flat glass, acrylic, PC, PET surface plating high-quality, multi-function metal membrane, electromagnetic shielding film, the reaction film composite membrane, transparent conductive film, antireflection (AR), by reflex film, such as LOw-E coating. The Company will be able to provide the design of user requirements, provide a full range of equipment for the process, by reference to the "key" engineering services.
Equipment characteristics:
1. A vacuum magnetron sputtering equipment, twin cathode, IF sputtering technology, and printed advanced control systems.
2. The production process all automated, continuous. Plating workpiece temperature was up to 350, adjustable temperature control district,
3. Vacuum chamber materials used SS304, polishing a vacuum chamber wall with a wall spray polishing beads processing.
4. Between the vacuum chamber separated by an independent Lord.
5. Used magnetic drive to protect the stability of transmission. The entire production line of the paragraph using VVVF speed motor drive, adjustable speed
6. Electrical control systems: Membrane touch screen and PLC automatic control, man-machine dialogue to achieve the data show that the operation and control
| Main technical parameters |
| Vacuum pressure limit | 7 × 10-4Pa September, the average production cycle: 8 0 sec / - |
| Substrate-Size | 8 5 0 × 1 5 0 0 (mm) (can be customized on request) |
| Uniformity of the film | ± 2% |
| The film Stability | Meet international standards |
Company Introduction:
The coating experts of your own company:Full set solution for the coating production
ZHICHENG can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide most suitable technology according to your requirements.
Moreover We will make the unique coating solution for each customer; combine with the full set production technics to meet your requirements, and ensure high efficiency of production.
We developed a complete after-sales system and effective service measures. Company owns a professional after-sales service team with experienced engineers.
Please feel free to contact us for further information!
Contact Person: Thea Lee
Mobile:0086-18270388234
Thanks for your time & Have a nice day!
Dongguan Zhicheng Vacuum Technology Co., Ltd services in field of China vacuum manufacturing for several years, which is a high-tech enterprise specialized in professional vacuum applications, equipment R & D and manufacture. Our company has a number of senior experts and engineers with many years of work experience in vacuum industry. They dedicated to R&D of equipments, design and provide suitable vacuum machines for clients. Our company also has a professional after-service team to provide clients with technical support and maintenance services. We are strict in production and management to ensure the safety, reliability and high quality of our products. We try our best to keep advanced technology, excellent quality, professional and considerate services.
Our main products include evaporation vacuum coating machine, intermediate-frequency ion coating machine, multi-arc ion plating equipment, gold-plated vacuum coating machine, special coating machine for laboratory etc. The vacuum machines made by our company have been successfully and widely applied to many fields, such as plastic, gifts and crafts, electron, toys, shoe materials, hardware, ceramic, chemical paint and coating automotive accessories, bathroom products, sports equipment, etc.
People-oriented! Honest and Trustworthy! Factualistic and Innovation! Customers First! There are the spirit of our company development. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Welcome the businessmen from all over the world to establish a long-term cooperation and crate a beautiful future together!
If you' Re interested in our products, please feel free to contact us, you' Re assured to have our prompt and careful attention.
