Product Specifications
| Prod Model: |
ZL10FH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Loading: |
1000kg |
| Bucket Capacity: |
0.5m3 |
| Dumping Height: |
2650mm |
| Diesel Engine: |
Changchai 490 or Xinchai 490 |
| Engine Power: |
29kw(39.44HP) or 36.8kw(50HP) |
| Tire Size: |
8.25-16 |
| Optional Tire Size: |
1100-16 / 10-12.5 / 12-16.5 |
| Operation Type: |
Full Hydraulic |
| Transmission: |
Automatic |
| Operating Weight: |
3300kg |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Small Loader |
| Certification: |
CE |
| Load And Unload Method: |
Front Discharge |
Product Description
Wheel Loader, wheel loaders, wheeled loader, Loader, loaders, mini Loader, mini loaders, mini wheel loader, front loader, front end wheel loader, CE wheel loaders

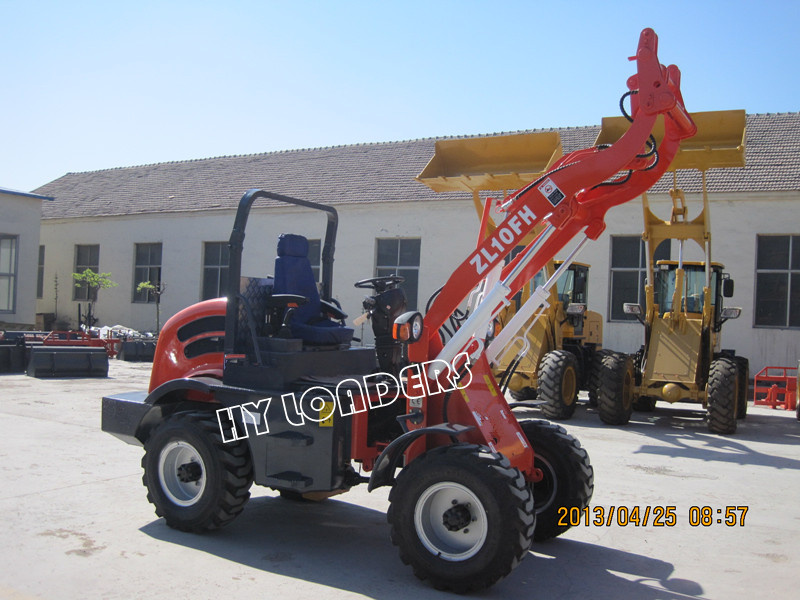

**Folded type ROPS for wheel loader ZL10FH
1) CE approved wheel loaders
2) Automatic transmission, easy operation
3) 29Kw engine, supplier stronger work power
4) Quickly hitch, and various optional toolS for meeting multi-function working conditions
Detailed Specifications of Wheel Loader ZL10FH:
1.0 Engine Details
(1) Model: Changchai 490 or Xinchai 490(Euro III emission approved)
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 29KW(39.44HP) or 36.8kw(50HP)
(4) Rated Speed: 2200 r/min
(5) Fuel Consumption ratio in standard working condition: 230g /kw. H
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)
3.0 Bucket
(1) Bucket Capacity: 0.5 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Rated Load: 1000kg
(5) Operating Weight: 3300kg
4.0 Overall Dimensions
(1) Overall Length (Bucket on ground position): 4750mm
(2) Overall Height
(a) Ground to Cab Top: 2500mm
(b) Dumping Height: 2650mm
(c) Min. Base to the Ground: 220mm
(3) Overall Width: 1650mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 3894000mm
(3) Driving System: Hydraulic converter
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
7.0 Tyre: 8.25-16,
Optional tire: 1100-16 / 10-12.5 / 12-16.5 /14-17.5
8.0 Wheelbase: 1580mm
9.0 Track: 1400mm
You are welcome to us have a visit.
Any questions will get our quickly reply: -)
Established in 2005, Qingzhou Hongyuan Vehicle Co., Ltd. is a leading manufacturer and exporter of ZL serial wheel loader in China, which is concerned with the design, development and production of Wheel Loader. All of our products approved CE certification, that's accordingly with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our company is specialized in producing mini construction machinery, products cover ZL series wheel loader, mini wheel loader, Multi-Function wheel loader and with different varieties tools which would make one machine for meeting different working condition requirements. Model: ZL08, Z10, ZL12, ZL15, ZL16, ZL18, ZL20, ZL28, ZL30, ZL50, SHM610, HY910, HY712. Tools: Hydraulic quickly coupling, pallet fork, hydraulic pallet fork, hydraulic snow blade, snow bucket, snow blower, 4in1 bucket, screen bucket, hydraulic grapple fork, sweeper, driller, mixer, clamp bales, etc.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Products successfully established long term business relationship with Australia, whole Europe, South America and Middle East.
Now we are looking for dealers and distributors to promote our products in worldwide markets. Sincerely welcome world friends to contact for business discussion and cooperation based on mutual benefit. We are looking forward to receiving your inquiries. If you are interested, please visit for more information about us.
