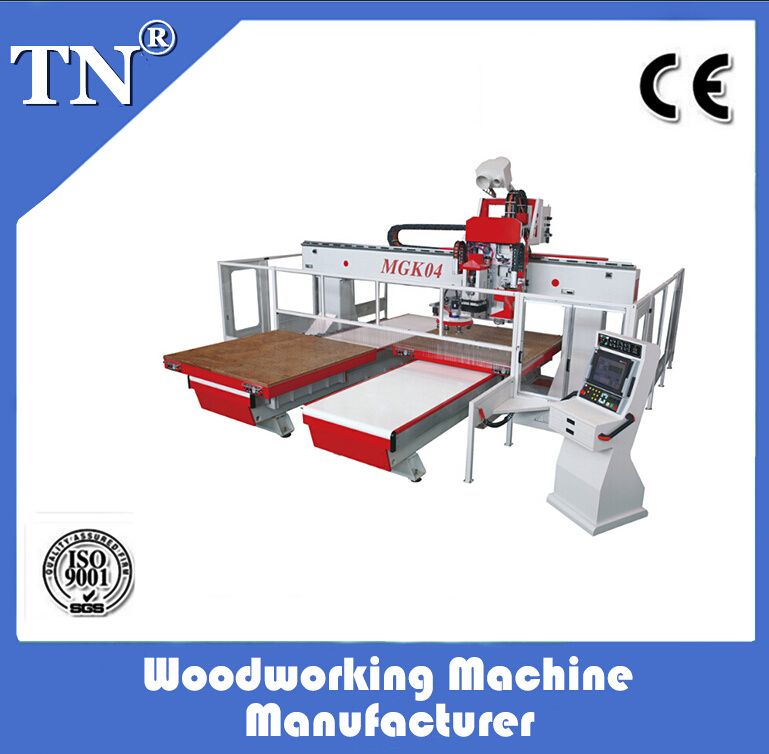

High speed wood combined machining center
Features :
1. Solid wood, plywood, MDF or HDF, Plastic board, Composited panel, Light metal shee and the similar kinds are all suitable.
2. Tables are working in alternation. There fore the operator can prepare the unloading of wor-pieces from 3 sides around the table.
3. Tables can be coupled together. There fore larger work-pieces can be easily processed.
4. Machine is equipped with ATC 8, C-axis movement is available for special request.
5. The drilling block is equipped with 9 vertical and 4 horizontal spindles, 2 saw blades for applying the desired directions.
6. This machining center has built in an open system which is prepared for interfacing interfaced with CAD-CAM software professionally.
Technical parameter
| Model |
|
MGK04 |
working distance | X-axis |
4600mm |
Y-axis |
3000mm |
Z-axis |
250mm |
working table |
|
1830*1830mm |
max. traveling speed | X-axis |
60m/min |
Y-axis |
60m/min |
Z-axis |
30m/min |
main routing spindle | no. of main spindle |
1 or 2 |
main spindle speed |
24000rpm |
power |
12Kw |
handle type tool coupling device |
HSK-F63 |
no. of tools |
8 |
coupler size |
ER32 |
drilling block | no. of vert. drills |
9 |
no. of X horiz. drills |
1+1 |
no. of Y horiz. drills |
1+1 |
power |
1.7Kw |
rotating speed (rpm) |
2800RPM |
saw blade inner diameter |
Φ35mm |
max. saw blade diameter |
Φ120mm |
vacuum pump | power |
5.5kwX2 |
air extraction volume |
500m3/h |
vacuum pressure | suction pressure (work piece) |
0.8Kg/cm2 |
air pressure | pipe diameter: 3/4" |
7Kg/cm2 |
dust extraction | pipe diameter |
Φ255mm |
dust extraction speed |
30m/s |
power supply | power |
42kw |
frequency |
50Hz |
voltage |
Three phase 380V |
machine dimension | required floor area |
8000X6500mm |
machine height |
3400mm |
machine weight |
9000Kg |
Customized service is avalable if there is other reqruiement of the machine. For more details, please contact directly. We will reply you as soon as possible.
