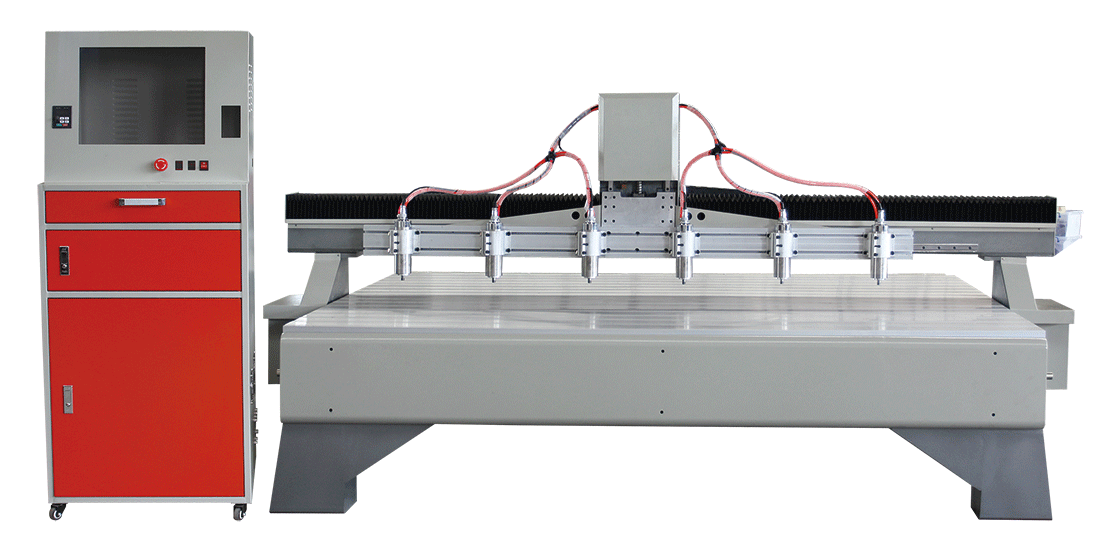

Multi-head CNC Wood Router (6 Heads Series)
Features:
1. Processing 6pcs wood at one time, highly improving the working efficiency.
2. XYZ use PIM 20mm linear square rails, XY use high accuracy gear rack, fast working speed, high accuracy.
3. XYZ use Chinese servo motor driving system, stable and cost-effective.
Applications:
1. Mostly used for making furniture, such as doors, windows, antique furniture, Mahogany furniture, chairs, stairs, hand rails, and all kinds of wood crafts.
2. Also for making instruments, 3D light box, aluminum composite panel, decorations etc.
Machine Details Show:
1. Base Frame: The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. Water Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc. We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Series of tools are available, for example, diameter 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Ball Screw and gear rack: Use TBI ball screw for Z axis, anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.
4. Transmission: XY axis use high accuracy gear rack. Z use ball screw.
The combination for ball screw and gear rack makes machine working more accurate and stable.
5. NC Studio Controller: PC based 3 AXIS NC Studio Controller.
6. Electric Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
7. Motor Driver: XYZ axis use servo motor which is powerful for frequent movement. Chinese servo motors, Japan Panasonic servo motor and France Schneider servo motors are all available as customer choice.
8. Central Oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
Optional parts:
1. PVC on Aluminum table: Black 7mm PVC on top of aluminum profile table protects the table from cutting scratching.
2. Mist sprayer: It sends oil mist to machining surface, it is important for tool cooling and lubricating.
3. Dust skirts: Switchable structure with dense skirts for your convenience to load tools, easy to remove the dust completely.
4. NC Studio Handle Wheel: Better anti-jamming and allowing long distance transmission of signal, with a 3m hand wheel cable; Accurate pulse output.
5. Tool Sensor: For Automatic tool length calibration and registration, it allows for easy and accurate "Z" zero position for single and multiple tool changes through the program, saves time & error-free.
Which machine is right for your business?
VICUT Engraving and CNC Routing Systems are capable of doing a variety of applications. Desired size, shape & production volume are factors in determining which machine is right for you. Contact us today & have one of our technical consultants assist you in finding a machine that best fits your needs.
The price is for reference only, the final interpretation belongs to William International(VICUT), pls contact us for the real value according to your requirements!
Model |
VCT-2013W-6H |
VCT-2018W-6H |
VCT-2518W-6H |
Working Size |
2000×1300×180mm
(6.56'x4.26'x0.59') |
2000×1800×180mm
(6.56'x5.90'x0.59') |
2500×1800×180mm
(8.2'x5.90'x0.59') |
Spindle Power |
2.2KW×6PCS |
Motor Driver |
XYZ axis use Chinese servo motor (ESTUN or Dorna ) |
Tool Diameter |
4,6, 8,12mm |
Structure |
cast square tube |
Transmission |
XY axis gear rack, Z axis high accuracy ball screw |
XYZ Guiding Rails |
PMI or HIWIN linear square rails |
Machining Accuracy |
<0.03/300mm |
Maxi Engraving Speed |
12000mm/m |
Spindle Speed |
6000~24000rpm |
Data Transmission |
Connect with PC directly (3 axis original NC Studio controller) |
Format of instructions |
G code or HPGL |
Voltage |
AC220V/50HZ or 380V/60Hz |
Net Weight |
About 1000KG |
About 1300KG |
About 1800 KG |
Packing size |
2850x1950x1900mm
(11CBM) |
2850x2250x1900mm
(12.2CBM) |
3200 x2250 x1900mm
(13.7CBM) |
