Product Specifications
| Prod Model: |
YLM-10C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
5-40centigrade |
| Working Filtration Rate: |
5-12m/H and Maxumum 15m/H |
| Cylinder Material: |
304, 316L and Q235 |
| Working Pressure(Mpa): |
0.05-0.6mpa/Cm2 |
| Filtration Flow Rate(M3/Hr): |
0.3-100m3/Hr |
| Material For Face Piping: |
Stainless Steel or PVC |
| Input Power: |
2~20kw |
| Power Supply: |
AC380V, 35A, 50Hz |
| Usage: |
Chemical Industry |
| Motive Force: |
Electric power |
| Certification: |
CE |
Product Description

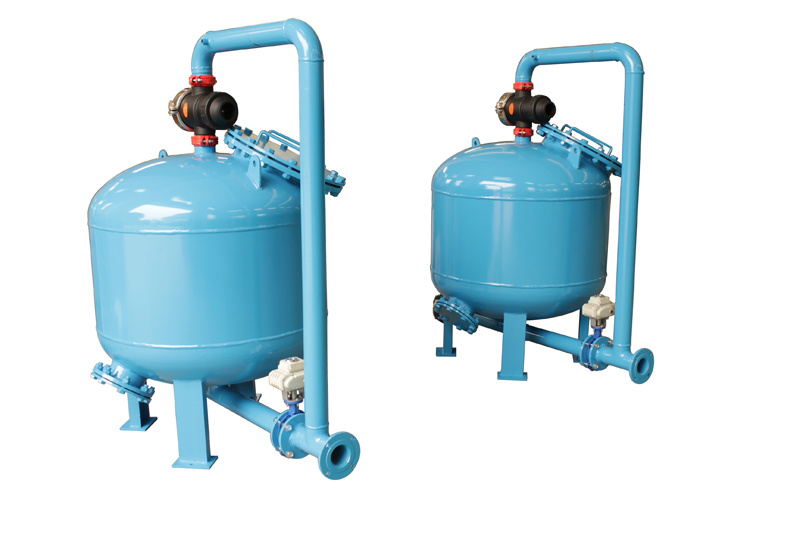

Multi-media filter
Multi-media filter using one or several filter media makes water of high turbidity flow through agranular ornon-agranular material of a certain thickness under a certain pressure, thereby effectively removing suspended impurities in the water and clarifying the water. The commonly used filter materials including quartz, anthracite and manganese sand, etc, are mainly used for turbidity removal of water treatment, water softening and pretreatment of pure water in preceding stages and outflow turbidity can be below 3 degrees. The filter is mainly used for reverse osmosis, electrodialysis, ion exchange as well as softening and demineralization system pretreatment and can also be used as coarse filtration of industry water supply with undemanding water quality, circulating cooling water, reuse water treatment of wastewater and recycled water, etc.
A single filter size shape
| Model | DN | H | H1 | H2 | H3 | Φ | R | n-d |
| YLGX-800 | 800 | 3597 | 2866 | 250 | 420 | 1000 | 300 | 4-18 |
| YLGX-1000 | 1000 | 3764 | 3000 | 220 | 450 | 1240 | 300 | 4-18 |
| YLGX-1200 | 1200 | 4098 | 3280 | 220 | 480 | 1432 | 300 | 4-22 |
| YLGX-1600 | 1600 | 4364 | 3480 | 200 | 480 | 1850 | 450 | 4-22 |
| YLGX-2000 | 2000 | 4629 | 3645 | 210 | 450 | 2100 | 500 | 8-30 |
| YLGX-2400 | 2400 | 5137 | 3970 | 210 | 500 | 2500 | 500 | 8-30 |
| YLGX-2600 | 2600 | 5282 | 4070 | 200 | 520 | 2700 | 500 | 8-36 |
| YLGX-2800 | 2800 | 5407 | 4170 | 200 | 530 | 2900 | 500 | 8-36 |
| YLGX-3000 | 3000 | 5507 | 4270 | 200 | 550 | 3100 | 600 | 8-36 |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
