Product Specifications
| Prod Model: |
MSD/Y2D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP: |
55 |
| Class: |
F |
| Voltage: |
Wide |
| Hz: |
50/60 |
| PTC: |
Opinion |
| Function: |
Control |
| Number Of Stator: |
Three-Phase |
| Number Of Poles: |
2/4/6/8 |
| Brand: |
Yds |
| Certification: |
CE |
Product Description

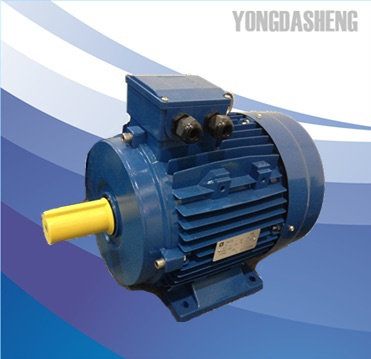

MSD / Y2D series
Three-Phase multi-speed Motor
MOTOR FESTURES
Utilise IP55 enclosures,others request
Multiple feet locations
Aluminlum frame,end shields and base
High strength cable gland
Shaft key and protector supplied
Superior paint finish
Motors made to heavy duty service factors
Can be made with stainless steel shaft
Motors made with stainless S1 duty
Utilise Vacuum impregnated Class B or class F insulation
High performance and efficiency
| Frame | Double-Speed |
|
|
|
| Three-Speed |
|
| Four-Speed |
| 1500/3000 | 1000/1500 | 750/1500 | 750/1000 | 500/1000 | 1000/1500/3000 | 750/1500/3000 | 750/1000/1500 | 500/750/1000/1500 |
|
|
|
|
|
|
|
|
|
|
| MSD/Y2D 80A | 0.45 / 0.55 | - | - | - | - | - | - | - | - |
| MSD/Y2D 80B | 0.55 / 0.75 | - | - | - | - | - | - | - | - |
| MSD/Y2D 90S | 0.85 / 1.1 | 0.65 / 0.85 | - | 0.35 / 0.45 | - | - | - | - | - |
| MSD/Y2D 90L | 1.3 / 1.8 | 0.85 / 1.1 | 0.45 / 0.75 | 0.45 / 0.65 | - | - | - | - | - |
| MSD/Y2D 100LA | 2.0 / 2.4 | 1.3 / 1.8 | 0.85 / 1.5 | 0.75 / 1.1 | - | 0.75 / 1.3 / 1.8 | - | - | - |
| MSD/Y2D 100LB | 2.4 / 3 | 1.5 / 2.2 | 0.85 / 1.5 | 0.75 / 1.1 | - | 0.75 / 1.3 / 1.8 | - | - | - |
| MSD/Y2D 112M | 3.3 / 4 | 2.2 / 2.8 | 1.5 / 2.4 | 1.3 / 1.8 | - | 1.1 / 2 / 2.4 | 0.65 / 2 / 2.4 | 0.85 / 1 / 1.5 | - |
| MSD/Y2D 132S | 4.5 / 5.5 | 3 / 4 | 2.2 / 3.3 | 1.8 / 2.4 | - | 1.8 / 2.6 / 3 | 1 / 2.6 / 3 | 1.1 / 1.5 / 1.8 | - |
| MSD/Y2D 132MA | 6.5 / 8 | 4 / 5.5 | 3 / 4.5 | 2.6 / 3.7 | - | 2.2 / 3.3 / 4 | 1.3 / 3.7 / 4.5 | 1.5 / 2 / 2.2 | - |
| MSD/Y2D 132MB | 6.5 / 8 | 4 / 5.5 | 3 / 4.5 | 2.6 / 3.7 | - | 2.6 / 4 / 5 | 1.3 / 3.7 / 4.5 | 1.8 / 2.6 / 3 | - |
| MSD/Y2D 160M | 9 / 11 | 6.5 / 8 | 5 / 7.5 | 4.5 / 6 | 2.6 / 5 | 3.7 / 5 / 6 | 2.2 / 5 / 6 | 3.3 / 4 / 5.5 | - |
| MSD/Y2D 160L | 11 / 14 | 9 / 11 | 7 / 11 | 6 / 8 | 3.7 / 7 | 4.5 / 7 / 9 | 2.8 / 7 / 9 | 4.5 / 6 / 7.5 | - |
| MSD/Y2D 180M | 15 / 18.5 | 11 / 14 | - | 7.5 / 10 | - | - | - | - | - |
| MSD/Y2D 180L | 18.5 / 22 | 13 / 16 | 11 / 17 | 9 / 12 | 5.5 / 10 | - | - | 7 / 9 / 12 | 3.3 / 5 / 6.5 / 9 |
| YD200LA | 26 / 30 | 18.5 / 22 | 14 / 22 | 12 / 17 | 7.5 / 13 | - | - | 10 / 13 / 17 | 4.5 / 7 / 8 / 11 |
| YD200LB | 26 / 30 | 18.5 / 22 | 17 / 26 | 15 / 20 | 9 / 15 | - | - | 10 / 13 / 17 | 5.5 / 8 / 10 / 13 |
| YD225S | 32 / 37 | 22 / 28 | - | - | - | - | - | 14 / 18.5 / 24 | 7 / 11 / 13 / 20 |
| YD225M | 37 / 45 | 26 / 32 | 24 / 34 | - | 12 / 20 | - | - | 17 / 22 / 28 | - |
| YD250M | 45 / 52 | 32 / 42 | 30 / 42 | - | 15 / 24 | - | - | 24 / 26 / 34 | 9 / 14 / 16 / 26 |
| YD280S | 60 / 72 | 42 / 55 | 40 / 55 | - | 20 / 30 | - | - | 30 / 34 / 42 | 11 / 18.5 / 20 / 34 |
| YD280M | 72 / 82 | 55 / 67 | 47 / 67 | - | 24 / 37 | - | - | 34 / 37 / 50 | 13 / 22 / 24 / 40
|
