| Price: | US $ 600/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
| Prod Model: | DT-329 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | Hubei, China (Mainland) |
| Advantage: | Ultra Brightness and Performance |
| Model Number: | Dt329e |
| Usage: | : Rpm Speed Measurement and Quality Inspection |
| Application: | Paper, Printing, Packaging, Textile, Automotive |
| Flash Frequency Range: | 60-120, 000 Rpm/Min |
| Lamp Spec: | America CREE Lamps |
| Size: | 500mm, 600mm, 800mm, 1000mm and 1200mm |
| Certificate: | CE-EMC, RoHS |
| Delivery: | Within 5 Days |
A stroboscope, also known as a strobe, stroboscopic lght, strobe light, tachometer is an instrument used to
make a cyclically moving object appear to be slow-moving, or stationary so that the objects can be visible,
otherwise, it can not be observed by naked eyes.
The principle is by synchronizing the flash frequency to the movement of the observed object and emitting
intensive light pulse of short duration, the object is always illuminated at the same point of its movement,
so that it appears to the eye as if it were motionless. It is suitable for non-contact RPM measurement,
inspection and observation of moving parts.
For example: a motor speed and movement frequency (printed bags), can also take advantage of the frequency
scintillation analysis of object vibration, the action of high-speed moving objects, as well as high-speed photography.
Advantages:
1) LCD digital display, easy to read
2). Adopts America CREE LED lamps with long lifetime, customized LED quantity and product width
3). wide trigger frequency range, 60fpm/min-120,000 fpm/min.. Frequency of each unit can be easily adjusted
4) ultra light brightness, with illunimation about 10,000 Lux.
5). portable, rechargeable, easy to operate and adjust
6). accurate and simple yet highly stable, repeatable flash rate setting.
7). internal components are independent, thus easy to disassemabled for problem solving
8). competitive price with high quality
9). fast delivery, environmental friendly paper packaging.
10). after sale service guaranteed
Technical Parameters:
Type | Multi-union, Fixed, Customized |
Power Type | AC Mains Power |
Working Power | About 300W |
Working Voltage | 110V-120V, 220-240V |
Environment Illumination | Less than 10,000 Lux |
Product Width | customized |
LED Lamp Spec. | America CREE 10W LED Lamp |
LED Lamp Quantity | customized |
LED Lamp Lifetime | 3-5 years |
Trigger Mode | Internal and External |
Setting Accuracy ( Vibration) | 0.01%±1 digit |
Resolution Setting (Vibration) | 60.0-12000FPM 0.1FPM |
12000.1-120,000FPM 1 FPM | |
1-200HZ 0.01HZ | |
200.1-2000HZ 0.012HZ | |
Flash Frequency Range | 60-120,000 FPM/min. |
We offer 1 year warranty for our Xenon digital stroboscope lamp and 2-years warranty for LED stroboscope.
If the strobe light is out of working order under proper usage per instructions manual within the warranty period,
please contact us to obtain a merchandise return code and shipping instruction. Then, send it back at your
shipping costs. After receiving your return item, it will take 7 days for evaluation and investigation. A brand new
replacement unit will be sent to you at our shipping costs if it meets our warranty requirements

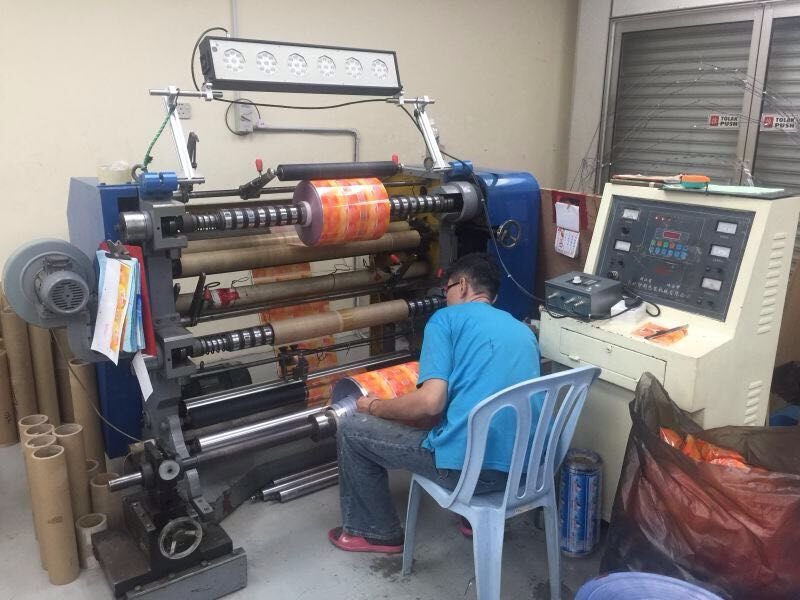

Usage Photo:
Welcome to contact us for more details.
